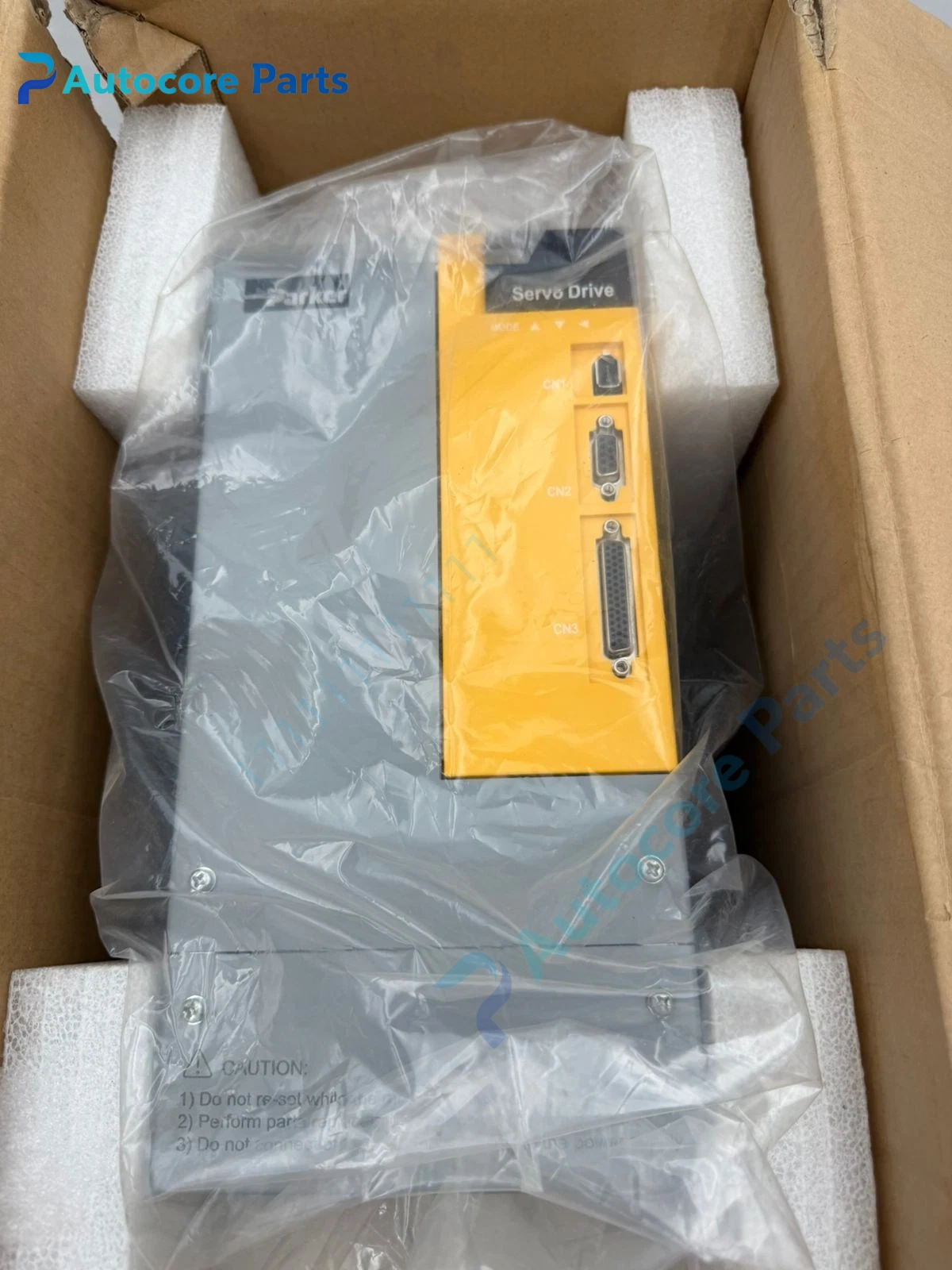

Parker FL20-SA113T3 Servo Drive Unit

Module Feature

FL20-SA113T3 is Parker FL20 series high dynamic servo drive, rated power 11kW, three-phase 380VAC power supply. It supports multiple control modes: pulse position, analog speed, analog torque and internal preset speed/torque. Accepts incremental encoder or resolver feedback, bandwidth up to 1.2kHz for fast response. Built-in electronic overcurrent, overvoltage, overheat and encoder loss protection. It supports optional PROFIBUS or CANopen communication card, DIN rail cabinet mounting. Widely stocked as maintenance spare for film stretching machine, printing press, packaging and metallurgical motion control cabinet.

Working principle

Three-phase AC input is rectified to DC bus, then IGBT power stage outputs PWM adjustable AC to servo motor. Control core executes vector algorithm to separate flux and torque current, closes position/speed loop according to encoder feedback. Drive continuously samples bus voltage, output current and temperature. Once fault condition is triggered, it latches fault code and stops output safely.

Onboard components

Rectifier bridge, IGBT power module, DC bus capacitor bank, current sampling Hall sensor, encoder feedback interface, control CPU board, status LED bank, operation panel connector and metal chassis.

LED indicators

Front panel LEDs indicate power, RUN, fault alarm and communication status; digital keypad panel displays running data and fault codes.

Hardware self‑diagnosis

Built-in supervision detects overcurrent, bus over/under voltage, heatsink overtemperature, encoder signal loss, communication timeout and internal hardware error. Configuration and fault diagnosis are completed by Parker dedicated FL20 commissioning software.

Programming softwareParker FL20 configuration tool, used for motor auto-tune, loop gain setup, command source selection, bus parameter and fault history reading.

Electrical & Process Parameters

Model:FL20-SA113T3 Brand:Parker Device type:FL20 11kW three-phase servo drive Function:High precision speed, torque and position control for AC servo motor

Mechanical & Structure

Mounting:DIN rail cabinet mounting Protection class:IP20 Housing:Compact metal air-cooled servo drive chassis

Environmental

Operating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE Status:Original Parker industrial motion servo spare

Installation

Cut off three-phase AC power and discharge DC bus capacitors before replacement. Check motor cable and encoder shield wiring, match correct motor parameter file, complete auto-tuning, test pulse position and analog control response after commissioning.

Interface

Three-phase AC power terminal, servo motor power output terminal, differential encoder port, 24VDC control signal terminal, fieldbus option slot, keypad panel port.

Diagnostic

Overcurrent fault: Motor cable short circuit, IGBT damage, incorrect gain setting. Encoder fault: Cable break, wiring reversal or encoder failure. Overtemperature: Fan blocked, dust accumulation, insufficient cabinet ventilation. No communication: Option board fault, wrong baud rate or node address conflict.

Product Brief

FL20-SA113T3 drive, Parker FL20 11kW 380V high dynamic servo amplifier spare for film, printing and packaging precision motion control cabinet replacement.
