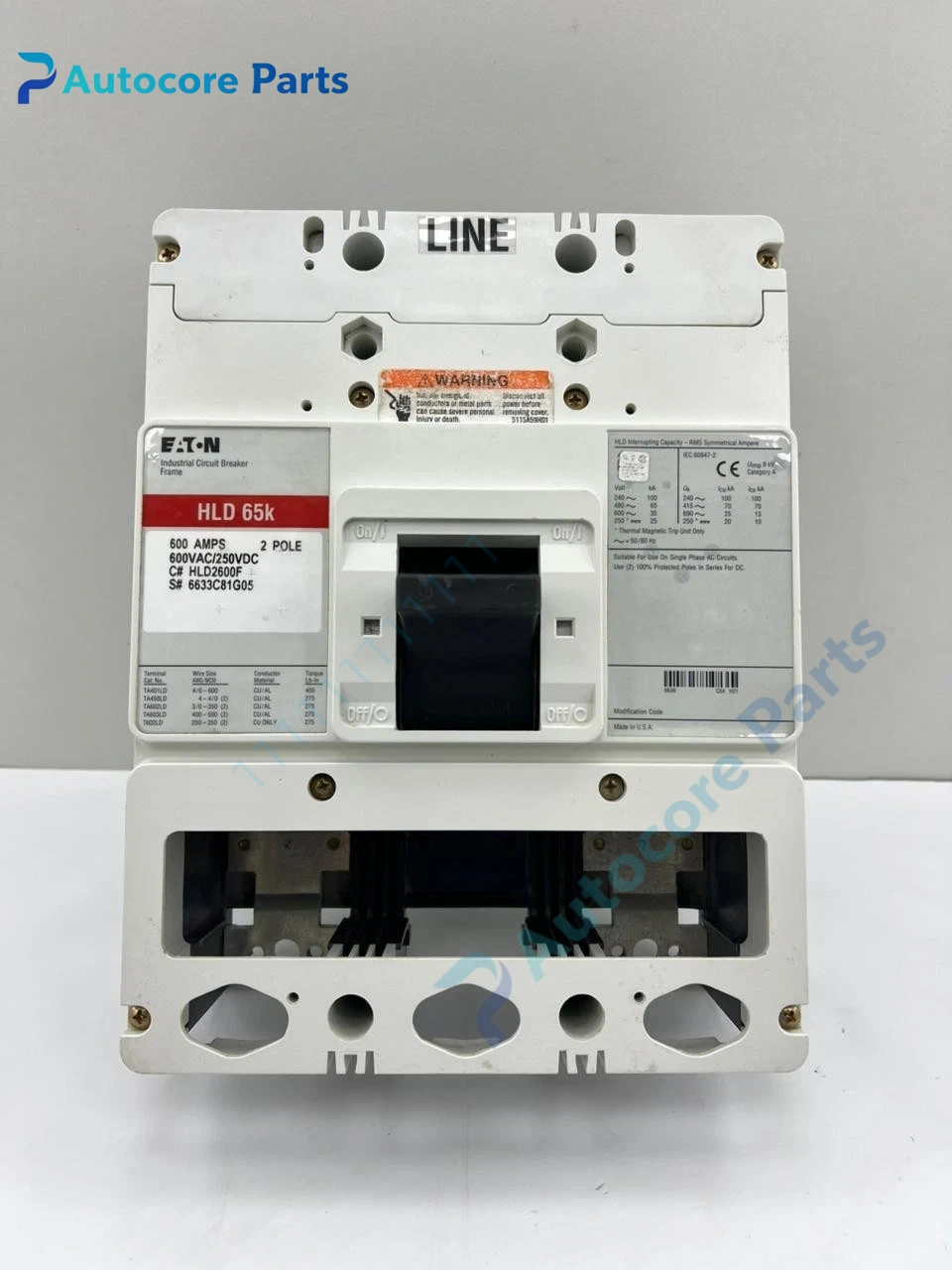

Eaton HLD2600F Series C 2P 600A MCCB Frame Unit

Feature & Principle

This breaker frame is sold without trip unit, which can be equipped with interchangeable thermal-magnetic or electronic trip module. It provides high short-circuit breaking capacity, supports reverse feed installation, and can add auxiliary and alarm accessories to feedback breaker status to monitoring system.

Specifications

Model: HLD2600F Brand: Eaton Cutler-Hammer Series: Series C HLD Poles: 2P Frame current: 600A Rated voltage: 600V AC / 250V DC Interrupt capacity: 100kA@240VAC, 65kA@480VAC Frequency: 50/60Hz Type: Frame only (trip unit separately supplied) Certification: UL489, IEC60947, CE

Components & Diagnostics

Insulating molded housing, main contact assembly, arc extinguishing chamber, operating handle and terminal mounting base. Common faults include contact overheating, mechanical jamming, handle failure and terminal heating.

Product Brief

HLD2600F breaker frame, Eaton power spare widely used for industrial distribution cabinet, heavy load feeder and power equipment protection.
