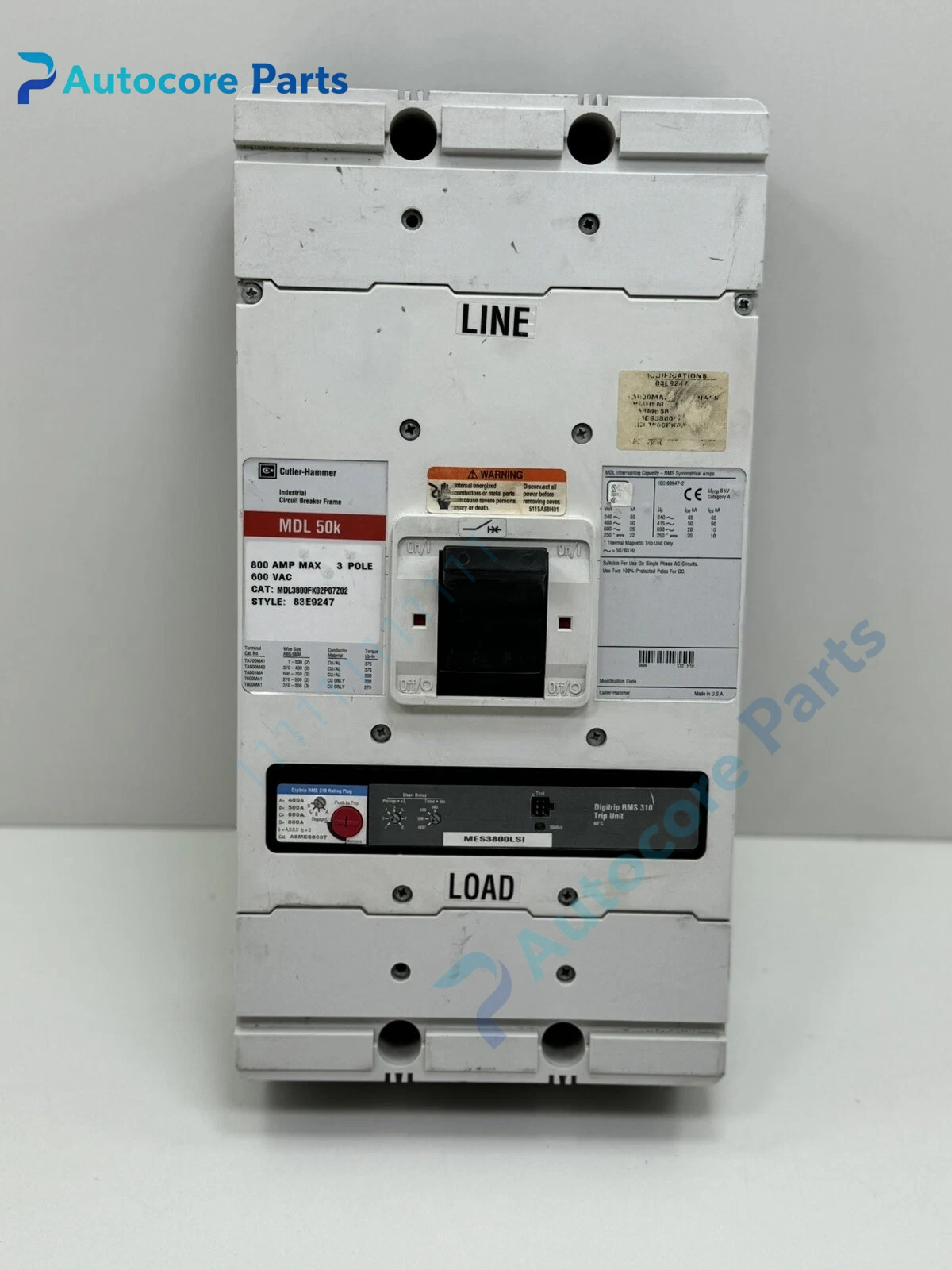

Eaton MDL3800FK02P07Z02 MDL Frame 3P Electronic Molded Case Circuit Breaker Unit

Feature & Principle

This high-performance molded case circuit breaker is equipped with electronic trip unit. It continuously monitors three-phase current and provides adjustable overload, short-time delay and instantaneous short-circuit protection. It can be fitted with auxiliary switch and alarm switch to feedback breaker status to SCADA system.

Specifications

Model: MDL3800FK02P07Z02 Brand: Eaton Series: MDL Poles: 3P Trip unit: Electronic release Mounting: Fixed installation Rated voltage: 600V AC Certification: UL489, IEC60947, CE

Components & Diagnostics

Insulating housing, electronic protection controller, silver alloy contact assembly, arc extinguishing chamber, operating handle and terminal assembly. Common faults include contact overheating, trip parameter drift, nuisance tripping and trip unit failure.

Product Brief

MDL3800FK02P07Z02 circuit breaker, Eaton power spare widely used for industrial main distribution cabinet, pump, fan and heavy load low voltage feeder protection.
