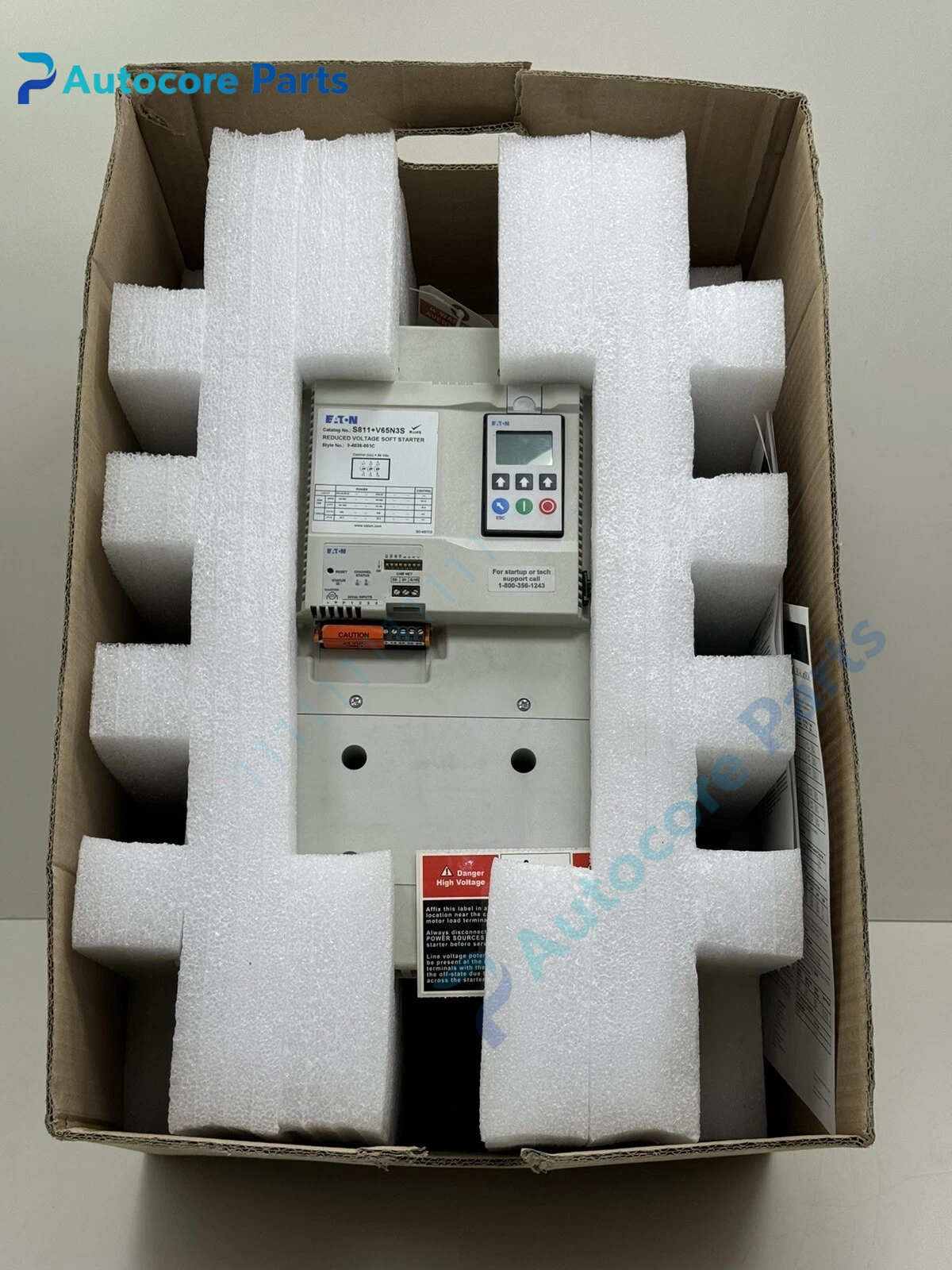

Eaton S811+V65N3S Motor Soft Starter Unit

Module Feature

S811+V65N3S is Eaton S811+ standard type soft starter, V frame, rated operational current 650A, suitable for 315kW @400V three-phase asynchronous motors.

It adopts three-phase SCR voltage regulation and integrates internal bypass contactor; after completing soft ramp, the bypass closes to reduce heat loss and extend SCR service life. The N suffix stands for standard general firmware, without dedicated pump anti-water hammer deceleration algorithm. It supports Modbus RTU communication for remote monitoring, current, voltage, power and fault data upload.

Comprehensive motor protection includes overload, phase loss, phase imbalance, over-temperature, locked rotor and current limit. Local LCD panel supports parameter editing, trend viewing and fault record query. It can be installed in MCC cabinet or standalone enclosure, widely used for large fans, air compressors, belt conveyors and general heavy-duty motors.

Working principle

When receiving start enable signal, the controller gradually increases SCR conduction angle, smoothly raises motor terminal voltage to realize soft acceleration and limit inrush current. The stop ramp is standard linear curve, not optimized for pump water hammer suppression. When the motor reaches full speed, the built-in bypass contactor pulls in, SCR stops working. The protection circuit continuously monitors three-phase current and temperature; it will cut off output and trigger alarm once abnormal condition occurs.

Onboard components

Three-phase SCR power module, built-in bypass contactor, current transformer set, main control PCB with Modbus interface, digital DIM interface module, LCD operator panel, temperature sensor, cooling fan, power terminal lug assembly.

LED indicators

Front panel status LEDs for power, run, bypass active, fault alarm; LCD screen displays current, voltage, load %, thermal capacity and fault codes.

Hardware self‑diagnosis

Power-on self-test detects input phase loss, current imbalance, SCR fault, over-temperature, motor overload, locked rotor, communication timeout and parameter error. Fault timestamps and event logs are stored locally.

Programming software

Eaton configuration software for parameter backup, ramp adjustment, Modbus address setting and firmware upgrade.

Electrical & Process Parameters

Model:S811+V65N3S Brand:Eaton Device type:Three-phase Soft Starter Rated current:650 A Main circuit voltage:200~600V AC Control supply:24V DC Communication:Modbus RTU Built-in bypass:Yes Function:Soft start and soft stop for fan, compressor and general heavy-duty asynchronous motors

Mechanical & Structure

Mounting:Cabinet backplane mounting Frame:V frame Protection class:IP00 (open type) Housing:Metal chassis

Environmental

Operating temperature:-30℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, IEC60947-4-2, UL listed Status:Eaton original S811+ soft starter spare

Installation

Install in well-ventilated MCC cabinet and reserve cooling clearance. Wire three-phase main power, motor cable and 24V control power. Connect Modbus communication wiring if remote monitoring required. Set start ramp time, stop ramp, current limit and overload trip class according to load characteristics. Perform start test and check motor starting current. Keep cooling fan and air channel clean regularly.

Interface

L1/L2/L3 main input terminals, U/V/W motor output terminals, 24V control power terminals, Modbus communication terminals, dry contact alarm relay terminals.

Diagnostic

Overcurrent trip: Mechanical jam, motor winding short circuit or improper current limit setting. Phase loss fault: Input fuse blown, loose main cable terminal. Over-temperature alarm: Fan failure, blocked air duct or continuous heavy-duty frequent start. Modbus offline: Wrong baud rate, address conflict or bus termination problem. Excessive shock when stopping: This is standard version, no pump deceleration curve, not suitable for water hammer sensitive piping.

Product BriefEaton S811+V65N3S standard soft starter, 650A, 200–600V AC, internal bypass, Modbus RTU, LCD panel, general ramp algorithm, used for fan, compressor and general heavy-duty motor soft start and stop.
