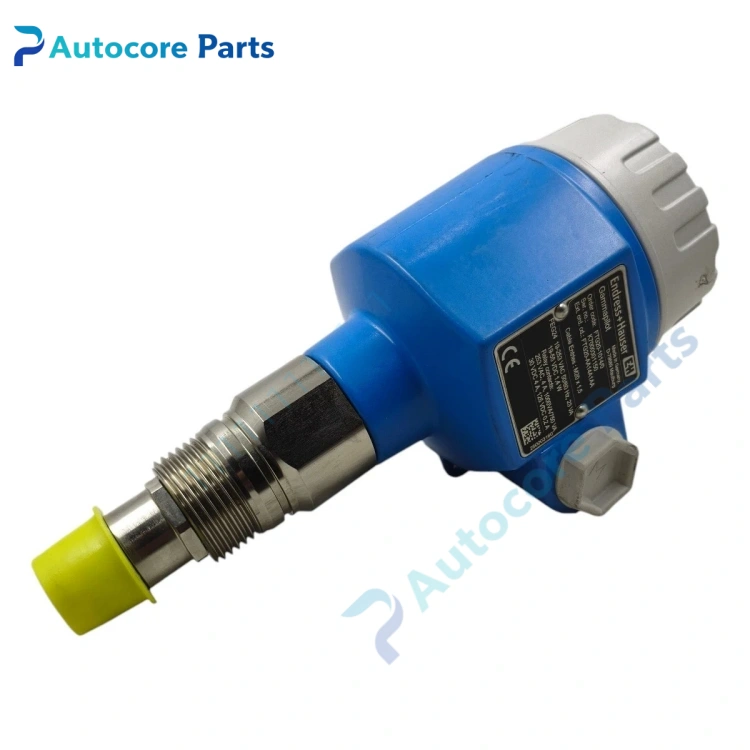

Endress+Hauser FTG20-1014 Radiometric Level Detector

Feature & Principle

It is a nuclear radiation point level detector of Endress+Hauser Gammapilot FTG20 series. It uses Geiger-Müller tube to receive gamma ray from radiation source. When material blocks the ray path, the received radiation intensity changes, and the internal circuit converts the signal into switching or analog output. Non-invasive measurement, no contact with process medium, not affected by viscosity, temperature and pressure. Built-in HistoROM data storage and automatic radiation decay compensation, electronic replacement without recalibration.

Specifications

Model: FTG20-1014 Brand: Endress+Hauser Series: Gammapilot FTG20 Measuring principle: Gamma radiation, Geiger-Müller counter Output: Relay / 4-20mA optional Housing: Aluminum / stainless steel Response time: Min 0.4s Protection: IP66 / IP67 Certification: ATEX, IECEx, NEPSI Application: Reactor, separator, acid tank, cyclone, mining silo, pulp and chemical process vessel level alarm

Components & Diagnostics

Geiger-Müller counter tube, signal processing PCB, display operation unit, metal housing, cable assembly. Common faults: radiation signal weak, no switching action, communication failure, window contamination.

Product Brief

FTG20-1014 radiometric point level detector, Endress+Hauser nuclear level instrument spare widely used for chemical, mining and metallurgy vessel level monitoring overhaul and replacement.
