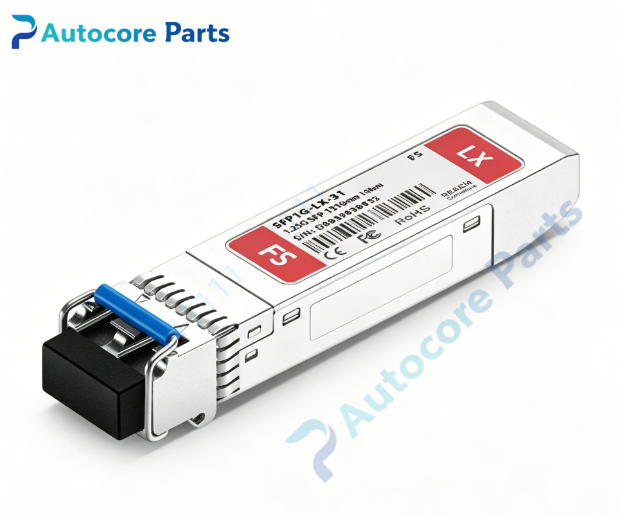

Extreme Networks 1000BASE-LX SFP Optical Transceiver

Technical SpecificationsModel：1000BASE-LX Brand：Extreme Networks Product Type：Hot-pluggable SFP optical transceiver

Interface: LC duplex connector Rate: 1.25Gbps 1000BASE-LX Wavelength: 1310nm Fiber type: Single mode fiber (SMF OS1/OS2) Max reach: 10km Diagnostic: DDM / DOM digital optical monitoring Operating voltage: 3.3V Transmit power: -9.5 ~ -3 dBm Receiver sensitivity: -19 dBm

Physical Parameter Weight：0.02kg Dimension：13.5mm(H) ×14.3mm(W) ×85mm(D) Operating temperature：0℃ ~ +70℃ Storage temperature：-40℃ ~ +85℃ Relative humidity：5%~95%, non-condensing

System compatibility

1000BASE-LX is Extreme original gigabit SFP transceiver. Compatible with Extreme Summit X440, X450a, VSP series switches equipped with SFP slots. Supports DDM real-time monitoring of optical power, temperature and supply voltage. Widely used for long-distance single-mode fiber interconnection for enterprise campus building cross-floor and factory wide-area gigabit links.

Function

1000BASE-LX converts 1G electrical signal into optical signal for single-mode fiber transmission. DDM function can read transceiver working parameters in real time. It is used for 10km gigabit point-to-point singlemode fiber connection in local area network. When used on multimode fiber, mode conditioning patch cord is required.

Installation

Wear ESD anti-static wrist strap. Insert the SFP module fully into the SFP port of switch. Connect LC singlemode fiber patch cord. Power on the equipment, verify module identification, DDM optical power reading and link status via switch CLI before commissioning.

InterfaceSFP gold finger, LC duplex fiber port, status indicator for Extreme Networks 1000BASE-LX.

FeatureOriginal Extreme 1000BASE-LX SFP optical transceiver,1310nm wavelength,10km singlemode transmission,built-in DDM digital diagnostic function,hot-pluggable,LC duplex interface,low power consumption. This spare is designed for long haul gigabit singlemode fiber interconnection.

DiagnosticModule undetected: Check gold finger cleanliness, SFP port health. No optical link: Verify fiber polarity, singlemode fiber quality and peer transceiver parameter matching. Low transmit / receive optical power alarm: Dirty fiber endfaces or damaged singlemode fiber cables. DDM read failure: Confirm switch firmware supports DOM function. Over-temperature alarm: Check equipment cabinet ventilation and heat dissipation.

Product Brief1000BASE-LX is Extreme Networks hot-pluggable SFP singlemode optical transceiver with 1310nm wavelength and max 10km transmission,classic spare part for enterprise long-distance gigabit singlemode fiber link overhaul.
