Extreme Networks 1000BASE-X Gigabit Ethernet Physical Layer Standard

Technical SpecificationsStandard: IEEE 802.3z Rate: 1000 Mbps full-duplex Line Coding: 8B/10B encoding Available variants:

• 1000BASE-SX: 850nm multi-mode fiber

• 1000BASE-LX: 1310nm single/multi-mode fiber

• 1000BASE-CX: Short shielded copper twinax cable Interface: SFP (Mini-GBIC) hot-pluggable transceiver Max Jumbo Frame: 9216 bytes Auto-negotiation: Support clause 37 auto-negotiation Operating temperature：Depends on selected SFP transceiver

System compatibility

1000BASE-X is widely supported on Extreme Networks switches, including 210/220 series access switches, BlackDiamond 8800 chassis line cards. Compatible with industry standard SFP transceivers of SX, LX, EX, ZX types. It works for point-to-point fiber uplink between access and aggregation layer.

Function

1000BASE-X is the physical standard for gigabit Ethernet over optical fiber and short twinax copper cable. It uses 8B/10B encoding originally derived from fibre channel to realize stable 1Gbps point-to-point transmission. Different optical modules provide different transmission distances for multi-mode or single-mode fiber. It is commonly used for long-distance fiber uplink in campus, factory and branch networks.

Installation

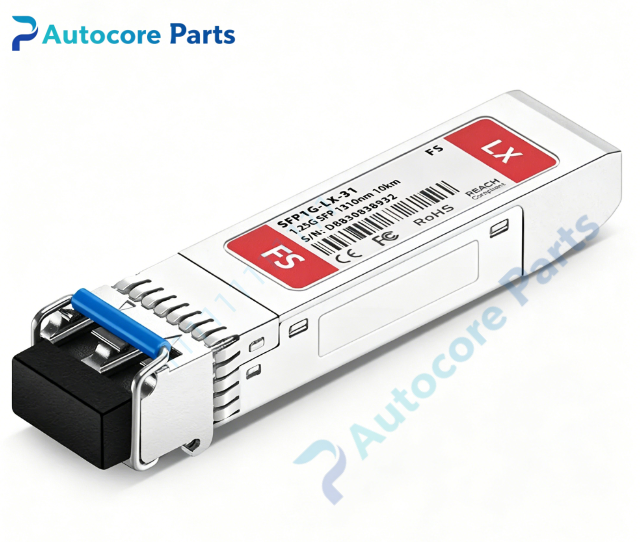

Insert the matched 1000BASE-X SFP transceiver into switch SFP slot. Connect fiber or twinax cable. Verify module recognition and link status via ExtremeXOS CLI. Configure port speed and negotiation parameters as required. Maintain proper fiber bending radius.

InterfaceSFP transceiver slot, LC fiber connector or twinax copper connector, serial diagnostic pin for 1000BASE-X interface.

FeatureOriginal IEEE802.3z 1000BASE-X gigabit physical standard,1Gbps bandwidth,8B/10B encoding,multiple media options including multi-mode / single-mode fiber and short copper,support hot-plug SFP optics. This interface standard is widely used for enterprise fiber uplink and long-distance gigabit interconnection.

DiagnosticLink down: Check SFP module type matches 1000BASE-X standard, inspect fiber cleanliness and cable continuity. Negotiation failure: Verify port auto-negotiation setting. Abnormal optical power: Read DDM diagnostic data of SFP module. Link flapping: Inspect fiber bending, connector contamination and hardware fault.

Product Brief1000BASE-X is IEEE 802.3z gigabit fiber Ethernet physical standard,classic interface standard for enterprise 1G fiber uplink and long-distance LAN interconnection.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
