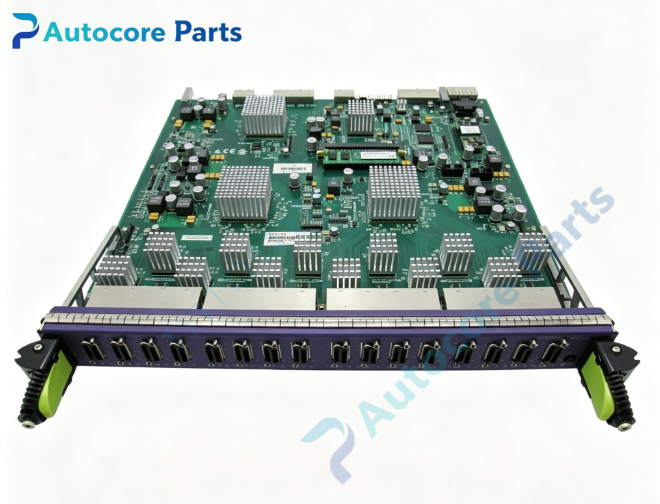

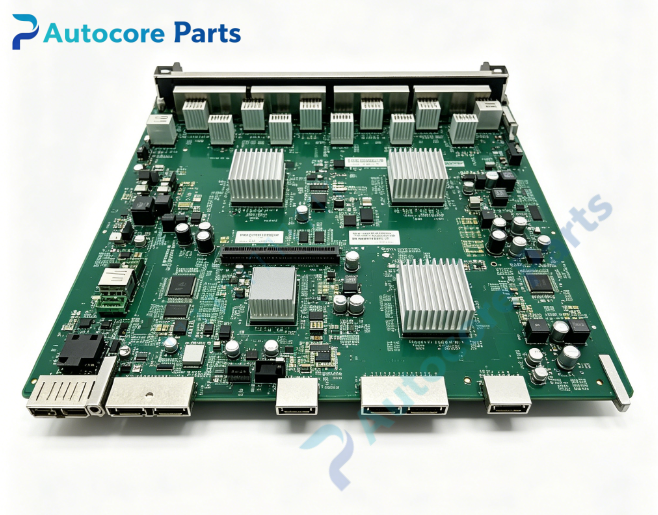

Extreme Networks 8900-G96T-c High Density Gigabit I/O Line Card

Technical SpecificationsModel：8900-G96T-c Brand：Extreme Networks Product Type：Hot-swappable I/O line card for BlackDiamond 8800 modular chassis switch

Front Ports:

• 96 × 10/100/1000BASE-T gigabit copper ports, MRJ21 connectors, 6 ports per MRJ21 port block

• No built-in SFP/SFP+ uplink ports on this module

Bandwidth per slot: 128 Gbps Power Consumption: Max 250W Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: Shared with chassis MSM management module QoS: 8 hardware priority queues per port Software OS: ExtremeXOS minimum version 12.3.2 Operating temperature：0℃ ~ +40℃ Installation: Hot swappable, insert into BlackDiamond 8800 chassis slot Weight: 3.3 kg Status LED: Port link/activity, module health and fault indicators

System compatibility

8900-G96T-c belongs to Extreme BlackDiamond 8900 series line card, fits BlackDiamond 8800 c/e/xl chassis. It works with 8900-MSM128 management switch module. Not allowed to coexist with 10G4X module in same chassis. Supports L2 switching and full L3 routing, BGP, OSPF, VRRP, multicast protocols.

Function

8900-G96T-c is high-density gigabit line card for BlackDiamond 8800 modular core switch. It provides total 96 gigabit copper access ports via MRJ21 connectors, commonly paired with breakout cable to RJ45 ports for large wired access. Hot swap design allows online replacement without powering down whole chassis. It supports VLAN, STP/MSTP, 802.1X, ACL and QoS traffic scheduling. Widely used for large campus core, enterprise data center access aggregation and high-density wired network deployment.

Installation

Power on the BlackDiamond 8800 chassis. Insert 8900-G96T-c module gently into empty chassis slot, lock captive screws. Connect MRJ21 to RJ45 breakout cables. Verify module recognition and port status through ExtremeXOS CLI. Configure VLAN, ACL and QoS policies according to network requirement.

InterfaceMRJ21 multi-port connectors, module status LED array, chassis backplane gold edge connector for Extreme Networks 8900-G96T-c.

FeatureOriginal Extreme Networks 8900-G96T-c line card,96×10/100/1000BASE-T ports via MRJ21,128Gbps slot bandwidth,hot swappable for BlackDiamond 8800 chassis,support L2/L3 routing,jumbo frame,ACL and QoS. This spare module is used for enterprise core and high-density aggregation network upgrade & replacement.

DiagnosticModule not detected: Check module fully seated and captive screws tightened, confirm compatible MSM firmware. Port no link: Inspect MRJ21 breakout cable integrity, cable termination and auto-negotiation setting. Module overheat alarm: Check chassis fan tray running status and airflow. Port link flapping: Verify copper cable quality, avoid excessive cable tension. Configuration error: Confirm 8900-G96T-c and 10G4X modules are not installed in same chassis.

Product Brief8900-G96T-c is Extreme BlackDiamond 8800 high-density 96-port gigabit MRJ21 hot-swappable line card,classic spare for large campus and enterprise core aggregation network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
