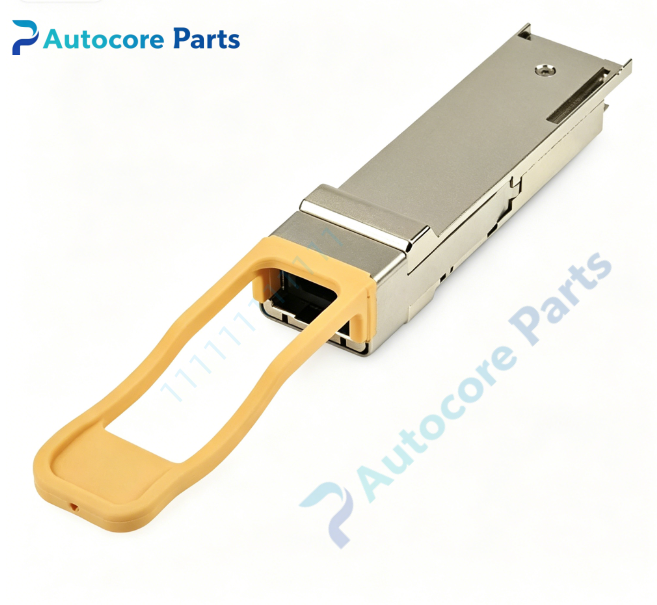

Extreme Networks 40G-SR4-QSFP150M 40G SR4 QSFP+ Transceiver

Technical SpecificationsModel：40G-SR4-QSFP150M Brand：Extreme Networks Product Type: QSFP+ hot-pluggable optical transceiver

Speed: 40Gbps total (4 ×10.3125Gbps lanes) Wavelength: 850nm VCSEL Fiber Type: Multi-mode fiber OM3 / OM4 Transmission Distance: 100m over OM3;150m over OM4 Connector: MPO-12 female Standard: IEEE802.3ba 40GBASE-SR4, SFF-8436 QSFP+ MSA DDM: Digital Diagnostic Monitoring supported Power Consumption: Max 1.5W Operating temperature：0℃ ~ +70℃ Installation: Hot-pluggable

System compatibility

40G-SR4-QSFP150M is Extreme certified QSFP+ optical transceiver. Compatible with Extreme switches with QSFP+ ports including X480,X670V,X590,X690,X870 series. It supports native 40G uplink or breakout mode to expand four 10GBASE-SR ports. Works with MPO-12 parallel multi-mode trunk fiber. Suitable for SummitStack-V stacking and short-distance spine-leaf fabric interconnection.

Function

40G-SR4-QSFP150M is short-reach 40G parallel multi-mode optical module for data center. 4-lane 850nm VCSEL transmits 40G signal via MPO multi-mode trunk cable. In breakout mode, each lane can run independently as 10GBASE-SR to increase available 10G port count. This module is widely used for rack-to-rack short 40G uplink, leaf-spine interconnection and high-speed switch stacking inside data center.

Installation

Insert QSFP+ transceiver fully into switch QSFP+ port. Connect MPO-12 trunk fiber cable to module MPO port. Verify module identification, optical transmit/receive power and link status via ExtremeXOS CLI. Configure port breakout function if 4×10G SR ports required. Maintain proper fiber bending radius during cabling.

InterfaceQSFP+ metal housing, MPO-12 female connector, DDM diagnostic circuit, gold pin contacts for Extreme Networks 40G-SR4-QSFP150M.

FeatureOriginal Extreme Networks 40G-SR4-QSFP150M optical transceiver,40GBASE-SR4 standard,850nm multi-mode,MPO-12 connector,support native 40G or breakout to 4×10G SR,DDM monitoring,hot pluggable. This spare module is used for data center short-range 40G fiber uplink and 10G port expansion.

DiagnosticModule not detected: Confirm fully seated transceiver, check port enable status and firmware compatibility. Link down: Inspect MPO fiber end face for dirt or scratches, read optical power value via DDM. Breakout port abnormal: Verify MPO trunk cable polarity and port breakout configuration in ExtremeXOS. Temperature alarm: Check ambient temperature and ventilation inside rack cabinet. Link flapping: Inspect fiber cable damage, excessive bending or contaminated MPO connector.

Product Brief40G-SR4-QSFP150M is Extreme QSFP+ 40G SR4 multi-mode optical transceiver,150m max reach on OM4 fiber,classic spare for data center short-distance 40G uplink and breakout 10G expansion.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
