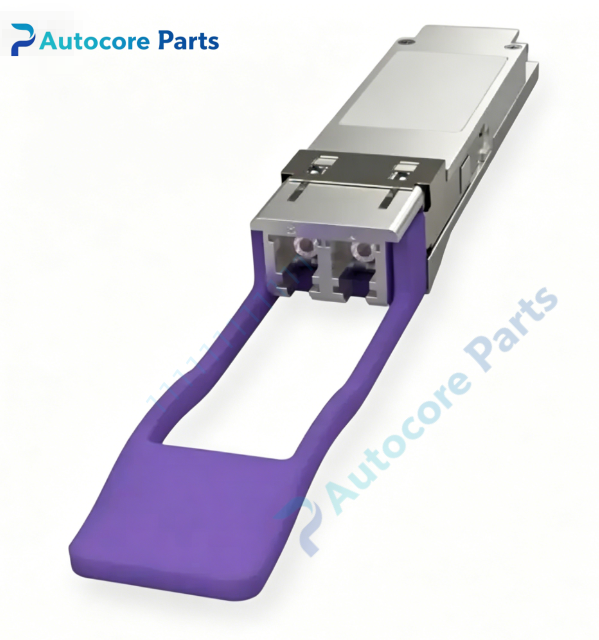

Extreme Networks 100G-LR-QSFP10 QSFP28 Optical Transceiver

Technical SpecificationsModel：100G-LR-QSFP10 Brand：Extreme Networks Product Type：Hot-pluggable QSFP28 optical transceiver

Interface: LC duplex connector Rate: 103.125Gbps 100GBASE-LR (Single Lambda PAM4) Wavelength: 1310nm Fiber type: Single mode fiber (SMF OS1/OS2 G.652) Max reach: 10km Diagnostic: DOM / DDM digital optical monitoring Operating voltage: 3.3V Max power dissipation: 4.5W FEC: Requires host side FEC function enabled

Physical Parameter Weight：0.08kg Dimension：18.3mm(H) ×22mm(W) ×90mm(D) Operating temperature：0℃ ~ +70℃ Storage temperature：-40℃ ~ +85℃ Relative humidity：5%~95%, non-condensing

System compatibility

100G-LR-QSFP10 is Extreme original 100G QSFP28 single lambda transceiver. Compatible with Extreme Summit and VSP series switches with QSFP28 slots. Supports DOM real-time monitoring of optical power, temperature, supply voltage and bias current. Widely used for data center interconnection, enterprise core 100G long-distance singlemode fiber links.

Function

100G-LR-QSFP10 converts 100G PAM4 electrical signal into optical signal for single-mode fiber transmission, single wavelength 1310nm, 10km transmission distance. DOM function can read real-time working parameters of the transceiver. This module is used for 100G point-to-point singlemode fiber interconnection between core switches and data center sites. Host FEC must be activated for reliable link performance.

Installation

Wear ESD anti-static wrist strap. Insert the QSFP28 module fully into the QSFP28 port of switch. Connect LC singlemode fiber patch cord. Enable FEC on the switch port. Power on the equipment, verify module identification, DOM optical power reading and link status via switch CLI before commissioning.

InterfaceQSFP28 gold finger, LC duplex fiber port, status indicator for Extreme Networks 100G-LR-QSFP10.

FeatureOriginal Extreme 100GBASE-LR QSFP28 optical transceiver,1310nm single lambda wavelength,10km singlemode transmission,built-in DOM digital diagnostic function,hot-pluggable,LC duplex interface,low power consumption. This spare is designed for 100G long haul singlemode fiber interconnection for core network and data center.

DiagnosticModule undetected: Check gold finger cleanliness, QSFP28 port health. No optical link: Verify fiber polarity, singlemode fiber quality and confirm host FEC configuration. Low transmit / receive optical power alarm: Dirty fiber endfaces or damaged singlemode fiber cables. DOM read failure: Confirm switch firmware supports DOM function. Over-temperature alarm: Check equipment cabinet ventilation and heat dissipation. Link unstable: Verify FEC is enabled and fiber attenuation is within specification.

Product Brief100G-LR-QSFP10 is Extreme Networks hot-pluggable QSFP28 single lambda optical transceiver with 1310nm wavelength and max 10km transmission,classic spare part for data center and enterprise core 100G singlemode fiber link overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
