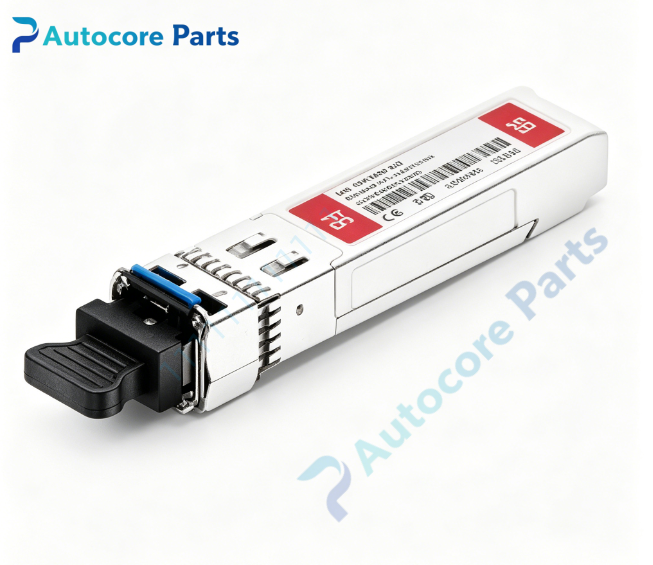

Extreme Networks 10GBASE-SR SFP+ Optical Transceiver

Technical SpecificationsModel：10GBASE-SR Brand：Extreme Networks Product Type：Hot-pluggable SFP+ optical transceiver

Interface: LC duplex connector Rate: 10.3125Gbps 10GBASE-SR Wavelength: 850nm VCSEL Fiber type: Multimode fiber (MMF OM1/OM2/OM3/OM4) Max reach: 33m OM1,82m OM2,300m OM3,400m OM4 Diagnostic: DOM / DDM digital optical monitoring Operating voltage: 3.3V Transmit power: -6 ~ -1 dBm Receiver sensitivity: -11.1 dBm Max power consumption: ≤1W

Physical Parameter Weight：0.02kg Dimension：13.5mm(H) ×14.3mm(W) ×85mm(D) Operating temperature：0℃ ~ +70℃ Storage temperature：-40℃ ~ +85℃ Relative humidity：5%~95%, non-condensing

System compatibility

10GBASE-SR is Extreme original 10G SFP+ multimode transceiver. Compatible with Extreme Summit X440, X450a, VSP series switches equipped with SFP+ slots. Supports DOM real-time monitoring of optical power, temperature, supply voltage and laser bias current. Widely used inside data center rack interconnection, enterprise core short-distance 10G multimode fiber links.

Function

10GBASE-SR converts 10G electrical signal into optical signal for multimode fiber transmission at 850nm wavelength. DOM function can read transceiver working parameters in real time. It is used for short-range 10G point-to-point multimode fiber interconnection between switches and servers inside computer room.

Installation

Wear ESD anti-static wrist strap. Insert the SFP+ module fully into the SFP+ port of switch. Connect LC multimode fiber patch cord. Power on the equipment, verify module identification, DOM optical power reading and link status via switch CLI before commissioning.

InterfaceSFP+ gold finger, LC duplex fiber port, status indicator for Extreme Networks 10GBASE-SR.

FeatureOriginal Extreme 10GBASE-SR SFP+ optical transceiver,850nm wavelength,short-range multimode transmission,built-in DOM digital diagnostic function,hot-pluggable,LC duplex interface,low power consumption. This spare is designed for 10G short haul multimode fiber interconnection in data center and enterprise core network.

DiagnosticModule undetected: Check gold finger cleanliness, SFP+ port health. No optical link: Verify fiber polarity, multimode fiber grade and peer transceiver matching. Low transmit / receive optical power alarm: Dirty fiber endfaces or damaged multimode fiber cables. DOM read failure: Confirm switch firmware supports DOM function. Over-temperature alarm: Check equipment cabinet ventilation and heat dissipation.

Product Brief10GBASE-SR is Extreme Networks hot-pluggable SFP+ multimode optical transceiver with 850nm wavelength and max 400m transmission on OM4 fiber,classic spare part for data center short-distance 10G multimode fiber link overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
