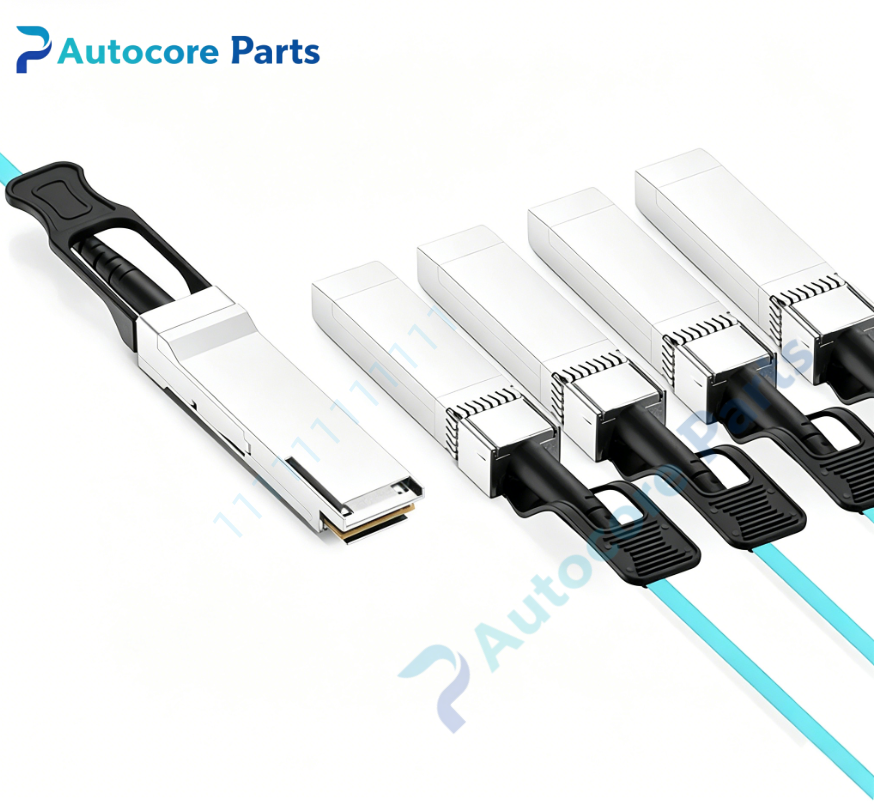

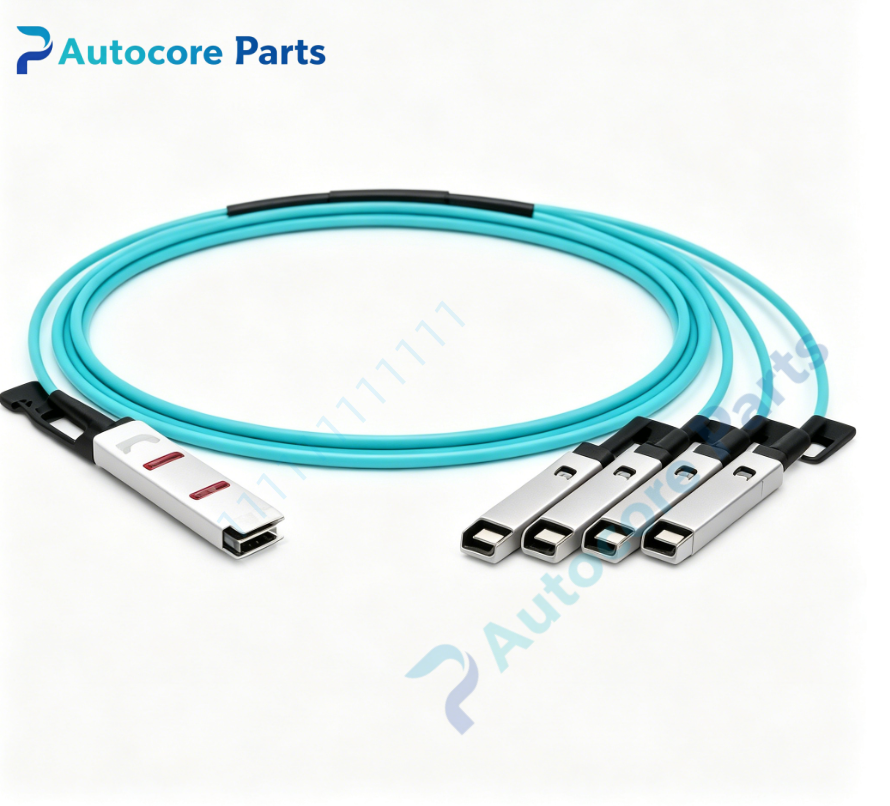

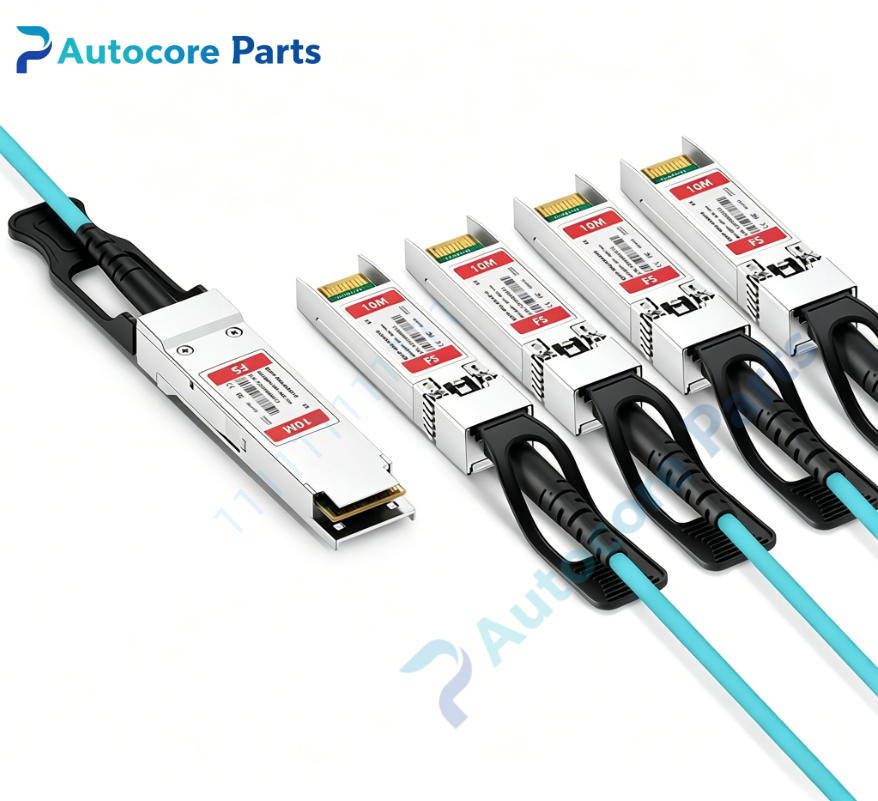

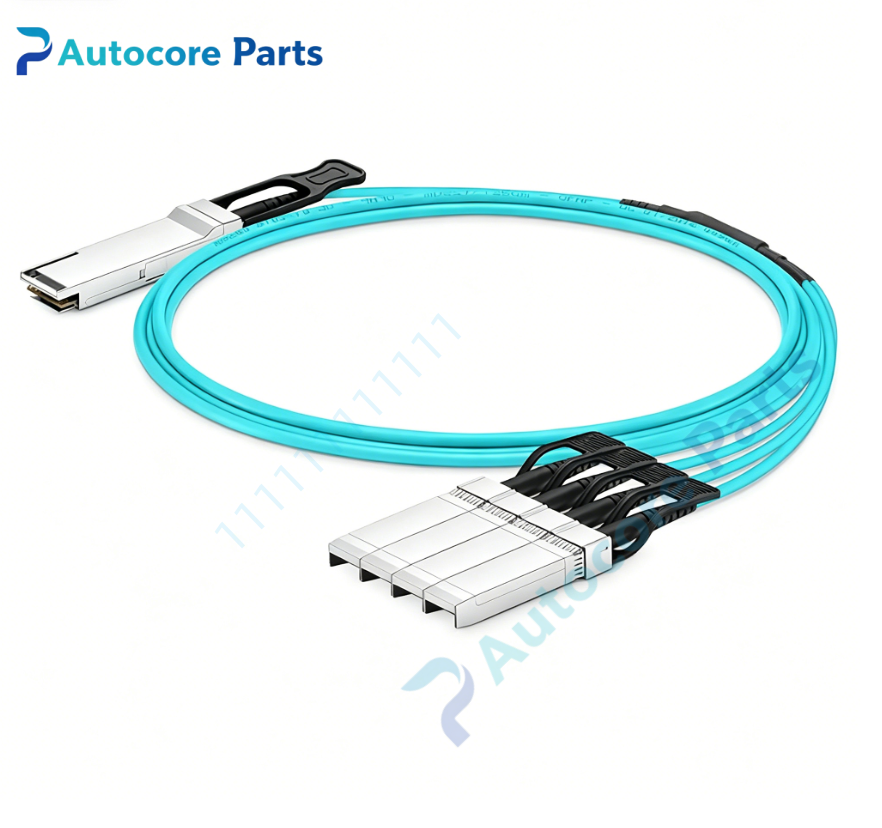

Extreme Networks 10GB-4-F10-QSF 40G QSFP+ Breakout Active Optical Cable

Technical SpecificationsModel: 10GB-4-F10-QSF Brand: Extreme Networks Product Type: QSFP+ to 4×SFP+ Breakout Active Optical Cable(AOC) Mounting: Plug into QSFP+ port of Extreme switch Operating temperature:0℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Speed: 40GBASE-SR4, breakout to 4×10GBASE-SR Length:10 meters Host port: QSFP+ Breakout ends: 4×SFP+ Wavelength:850nm Fiber type: OM3/OM4 multimode fiber Digital monitoring: DDM / DOM Weight:0.18 kg

System compatibility10GB-4-F10-QSF is Extreme Networks QSFP+ 40G to 4×10G breakout active optical cable. Compatible with Extreme Summit X460-G2, X620, X650, X670, VSP7400 series switches with QSFP+ slots. Used for converting one 40G port into four independent 10G server access links. Widely used for data center rack server access and spare replacement.

Function10GB-4-F10-QSF integrates parallel optical transceivers inside cable assembly. It splits 40G SR4 parallel optical lanes into four independent 10G channels. It supports DDM to monitor transmit optical power, receive power, module temperature and supply voltage. It triggers alarm for optical signal loss, over-temperature or module fault. Used to replace faulty breakout AOC for 40G to 10G fan-out networking.

InstallationPower off before installation. Insert QSFP+ end into switch QSFP+ slot. Plug four SFP+ ends into 10G server/switch ports. Verify module recognition by ExtremeXOS/VOSS, check optical power and port link status before putting into production.

InterfaceQSFP+ edge connector, four SFP+ edge connectors, internal multimode fiber assembly, DDM digital diagnostic interface for Extreme Networks 10GB-4-F10-QSF breakout active optical cable.

FeatureOriginal Extreme Networks 10m QSFP+ breakout AOC, hot-swappable, 40G to 4×10G fan-out, DDM real-time monitoring, low power consumption, compliant with IEEE 802.3ae standard. This spare supports data center 40G port breakout deployment.

DiagnosticModule undetected: check insertion, slot status and switch firmware compatibility. Port link down: verify SFP+ ends, fiber path, optical power and port breakout configuration. Flapping links: inspect cable bending, cable stress and cabinet cable routing.

Product Brief10GB-4-F10-QSF is Extreme Networks 10-meter QSFP+ to 4×SFP+ breakout active optical cable. It breaks one 40G port into four independent 10G ports, classic spare part for data center fan-out network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, therefore it cannot be used for pricing. It is only used for equipment maintenance and renovation.
