Extreme Networks 220-12p-10GE2 Stackable PoE+ Gigabit Switch

Technical SpecificationsModel：220-12p-10GE2 Brand：Extreme Networks Product Type：1U compact stackable managed PoE+ gigabit access switch

Front Ports:

• 12 × 10/100/1000BASE-T PoE+ RJ45 ports (IEEE802.3af/at)

• 2 × 10GBASE-X SFP+ uplink ports

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100BASE-T out-of-band management port

Switch Fabric: 64 Gbps Forwarding Rate: 47.6 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 1024 VLANs MAC Address Table: 16K MAC entries ACL: Hardware access control list QoS: 8 hardware priority queues per port CPU & Memory: 1GHz ARM Cortex-A9,512MB DRAM,128MB Flash Power Supply: Built-in AC input 100-240V AC, optional redundant power supply Cooling: Support fanless silent operation under proper temperature range Software OS: 220 series firmware, compatible with ExtremeCloud management Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount or desktop installation Weight: 3.47 kg Status LED: System, PoE, stack ID, per-port link/activity indicators

System compatibility

220-12p-10GE2 belongs to ExtremeSwitching 220 series. It can stack with other 220 series switches, maximum 4 units in one stack, managed by single IP address. Compatible with Extreme certified SFP+ optical modules and DAC cables. Supports Layer2 switching and Layer3 routing including static route and RIP, up to 64 routes. Suitable for enterprise branch, classroom and wireless AP access layer deployment.

Function

220-12p-10GE2 is compact stackable PoE+ gigabit switch for enterprise edge access network. 12 PoE+ copper ports supply power and data to wireless APs, IP cameras and VoIP phones. Two 10G SFP+ ports provide high-speed fiber uplink to aggregation switch. Stacking capability combines multiple physical switches as one logical device to simplify management. It supports VLAN, MSTP/RSTP, 802.1X authentication, LLDP, QoS and traffic filtering. Fanless optional design is suitable for quiet office environment. Widely used for campus wireless access, IP surveillance and branch office network.

Installation

Mount the switch to standard 19-inch rack or place on desktop. Connect AC power cord. Use console cable for initial CLI configuration. Insert SFP+ transceiver and fiber/DAC cable for 10G uplink. Configure stacking parameters if multi-switch cluster required. Set VLAN, PoE power priority and routing functions as needed. Verify port status, PoE output and stack connection after power on.

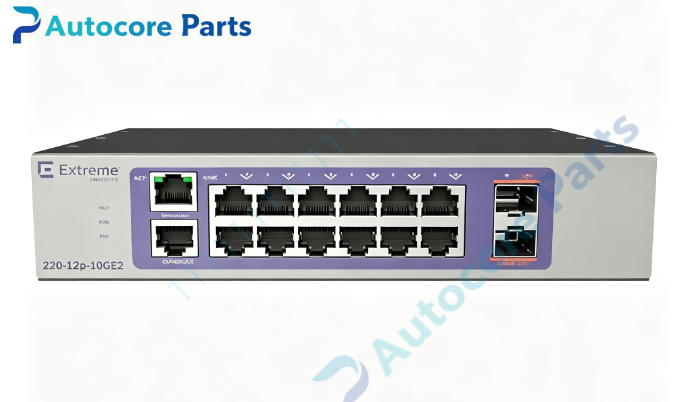

Interface12 PoE+ RJ45 gigabit ports,2 SFP+ 10G uplink slots,serial console port,out-of-band management port,AC power inlet and status LED indicators for Extreme Networks 220-12p-10GE2.

FeatureOriginal Extreme Networks 220-12p-10GE2 PoE+ gigabit switch,12×PoE+ RJ45 ports,2×10G SFP+ uplink,stackable up to four units,L3 static and RIP routing,optional fanless silent design,support ExtremeCloud management,802.1X security authentication and QoS. This spare is used for enterprise wireless access and branch network upgrade & replacement.

DiagnosticSwitch no power: Check AC power cable and wall outlet voltage, inspect power supply connection. PoE port no power: Check PoE power budget, port PoE enable status and copper cable quality. SFP+ uplink no link: Verify SFP+ module certification, fiber end face cleanliness and optical attenuation. Stacking abnormal: Confirm stacking configuration, same firmware version on all stack members and cable integrity. Temperature warning: Check ambient temperature, fan operation if fan equipped. Port link flapping: Inspect copper/fiber cable, auto-negotiation and peer device state.

Product Brief220-12p-10GE2 is Extreme compact 12-port PoE+ stackable gigabit switch with dual 10G SFP+ uplink ports,classic spare for enterprise wireless access and branch edge network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
