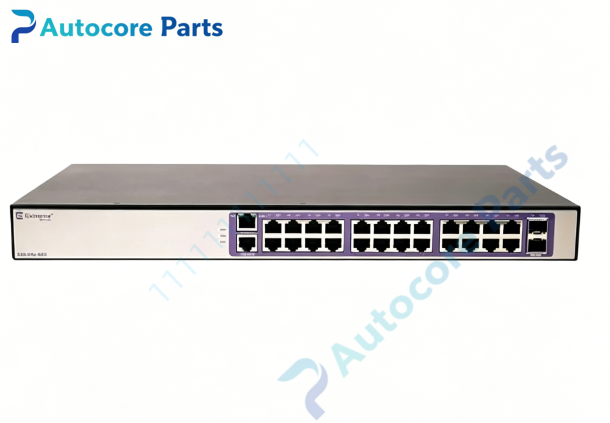

Extreme Networks 210-24p-GE2 Gigabit PoE+ Access Switch

Technical SpecificationsModel：210-24p-GE2 Brand：Extreme Networks Product Type：1U rack mount gigabit managed PoE+ access switch

Front Ports:

• 24 × 10/100/1000BASE-T PoE+ RJ45 copper ports (IEEE802.3af/at), total PoE budget 185W

• 2 × 100/1000BASE-X SFP fiber uplink ports

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100BASE-T out-of-band management port

Switch Fabric: 52 Gbps Forwarding Rate: 38.7 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 1024 VLANs MAC Address Table: 16K MAC entries ACL: 100 ACL lists, up to 1023 rules per list QoS: 8 hardware priority queues per port CPU & Memory: 400MHz ARM Cortex-A9,512MB DRAM,128MB Flash Power Supply: Built-in AC power input, 100-240V AC Cooling: Fan equipped Software OS: 210-series firmware, support ExtremeCloud cloud management Operating temperature：0℃ ~ +40℃ Mounting: Standard 19-inch rack mount Dimension: 44mm(H) × 441mm(W) × 254mm(D) Weight: 3.0 kg Status LED: System, PoE, port link/activity indicators

System compatibility

210-24p-GE2 belongs to ExtremeSwitching 210 series. Compatible with Extreme certified 1G SFP transceivers. Supports Layer2 switching and basic IPv4 static routing, up to 60 static routes. Can be managed via local CLI, web GUI or remote ExtremeCloud cloud platform. Suitable for enterprise branch, classroom and IP surveillance access layer deployment.

Function

210-24p-GE2 is rack-mounted PoE+ gigabit access switch for enterprise branch and campus network. 24 PoE+ RJ45 ports transmit data and supply power to wireless APs, IP cameras and VoIP phones. Two dedicated SFP slots provide long-distance fiber uplink to aggregation switch. It supports VLAN, RSTP/MSTP, 802.1X port authentication, LLDP, QoS and traffic filtering. Widely deployed for office wireless access, video monitoring and small campus wired network.

Installation

Mount the switch to standard 19-inch rack. Connect AC power cord. Use console cable for initial local configuration. Insert 1G SFP transceiver and fiber patch cord for uplink connection. Configure VLAN, PoE priority and cloud management parameters as required. Verify port link status and PoE power output after power-on.

Interface24 PoE+ RJ45 gigabit ports,2 SFP 1G uplink slots,serial console port,out-of-band management port,AC power inlet and status LED indicators for Extreme Networks 210-24p-GE2.

FeatureOriginal Extreme Networks 210-24p-GE2 PoE+ gigabit switch,24×PoE+ RJ45 ports,2×1G SFP uplink,185W PoE budget,1U rack design,support ExtremeCloud cloud management,L2 switching and IPv4 static routing,802.1X security authentication and QoS. This spare is used for enterprise branch,classroom and IP camera access network upgrade and replacement.

DiagnosticSwitch no power: Check AC power cable and wall outlet voltage. PoE port no power: Check remaining PoE budget, port PoE enable status and copper cable quality. SFP uplink no link: Verify SFP module compatibility, fiber end face cleanliness and optical power value. Cloud management offline: Check management network connectivity and firmware version. Port link flapping: Inspect copper/fiber cable, auto-negotiation configuration and peer device state.

Product Brief210-24p-GE2 is Extreme 1U rack 24-port PoE+ gigabit access switch with dual 1G SFP uplink ports,classic spare for enterprise branch and wireless access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
