Extreme Networks 220-24t-10GE2 Stackable Gigabit Switch

Technical SpecificationsModel：220-24t-10GE2 Brand：Extreme Networks Product Type：1U rack mount stackable managed gigabit non-PoE access switch

Front Ports:

• 24 × 10/100/1000BASE-T RJ45 copper ports (non-PoE)

• 2 × 10GBASE-X SFP+ uplink ports (unpopulated)

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100BASE-T out-of-band management port

Switch Fabric: 88 Gbps Forwarding Rate: 65.5 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 1024 VLANs MAC Address Table: 16K MAC entries ACL: Hardware access control list QoS: 8 hardware priority queues per port CPU & Memory: 1GHz ARM Cortex-A9,512MB DRAM,128MB Flash Power Supply: Built-in AC input 100-240V AC, optional redundant RPS power supply Cooling: Dual fan design Software OS: 220 series firmware, compatible with ExtremeCloud management Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Weight: 3.8 kg Status LED: System, stack ID, per-port link/activity indicators

System compatibility

220-24t-10GE2 belongs to ExtremeSwitching 220 series. It can stack with other 220 series switches, maximum 4 units in one stack and managed under single IP address. Compatible with Extreme certified SFP+ optical modules and DAC cables. Supports Layer2 switching and Layer3 routing including static route and RIP, up to 64 static routes. Designed for enterprise branch, computer room and wired access layer deployment without PoE requirement.

Function

220-24t-10GE2 is rack-mounted stackable non-PoE gigabit switch for enterprise edge access network. 24 gigabit copper ports connect workstations, PCs and local network terminals. Two SFP+ slots provide high-speed 10G fiber uplink to aggregation layer switch. Stacking function combines multiple physical switches as one logical device to simplify network management. It supports VLAN, MSTP/RSTP, 802.1X authentication, LLDP, QoS and traffic filtering. Widely used for office wired network, server room access and medium branch office network.

Installation

Mount the switch to standard 19-inch rack. Connect AC power cord. Use console cable for initial CLI configuration. Insert SFP+ transceiver and fiber/DAC cable for 10G uplink. Configure stacking parameters if multi-switch cluster required. Set VLAN and routing functions as needed. Verify port status and stack connection after power on.

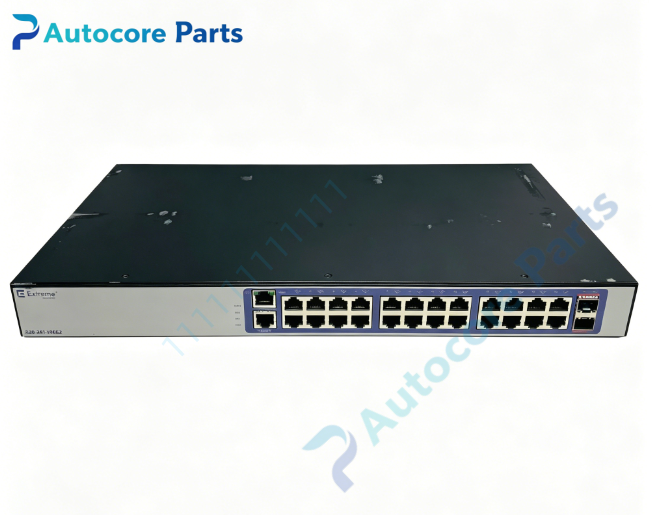

Interface24 RJ45 gigabit ports,2 SFP+ 10G uplink slots,serial console port,out-of-band management port,AC power inlet and status LED indicators for Extreme Networks 220-24t-10GE2.

FeatureOriginal Extreme Networks 220-24t-10GE2 gigabit switch,24×non-PoE RJ45 ports,2×10G SFP+ uplink,stackable up to four units,L3 static and RIP routing,optional redundant power supply,support ExtremeCloud management,802.1X security authentication and QoS. This spare is used for enterprise wired access and branch network upgrade & replacement.

DiagnosticSwitch no power: Check AC power cable and wall outlet voltage, inspect power supply connection. Port no link: Verify copper cable quality, auto-negotiation and peer device state. SFP+ uplink no link: Verify SFP+ module certification, fiber end face cleanliness and optical attenuation. Stacking abnormal: Confirm stacking configuration, same firmware version on all stack members and cable integrity. Temperature warning: Check ambient temperature and dual fan operation. Port link flapping: Inspect copper/fiber cable, auto-negotiation and peer device state.

Product Brief220-24t-10GE2 is Extreme 1U rack 24-port non-PoE stackable gigabit switch with dual 10G SFP+ uplink ports,classic spare for enterprise wired access and branch edge network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
