Extreme Networks 5320-16P-4XE PoE+ Stackable Edge Switch

Technical SpecificationsModel：5320-16P-4XE Brand：Extreme Networks Product Type：1U rack mount managed PoE+ edge access switch

Front Ports:

• 16 × 10/100/1000BASE-T PoE+ RJ45 ports (IEEE802.3af/at, max 30W per port), MACsec capable

• 4 × 1/10G SFP+ uplink ports, two ports dedicated for stacking function, MACsec capable

• 1 × RJ45 serial console port

• 1 × USB Micro-B console port

• 1 × USB Type-A port for storage and management

Switch Fabric: 56 Gbps Forwarding Rate: 41.7 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 32K MAC entries Security: MACsec encryption on all ports QoS: 8 hardware priority queues per port Power Supply: Built-in 250W AC power module, 10-240V AC input Cooling: Fan equipped, support silent operation within specified temperature Software OS: ExtremeXOS / Fabric Engine, stackable up to 8 units Operating temperature：0℃ ~ +60℃ Mounting: Standard 19-inch 1U rack mount Weight: 3.5 kg Status LED: System, PoE, stack ID, port link/activity indicators

System compatibility

5320-16P-4XE belongs to Extreme 5320 universal edge switch series. It can stack together with other 5320 series switches, maximum 8 units per stack and managed via single IP address. Compatible with Extreme certified 1G/10G SFP+ transceivers and DAC cables. Supports Layer2 switching and advanced Layer3 routing, MACsec port encryption, ideal for enterprise campus, branch and IP camera access layer deployment.

Function

5320-16P-4XE is next-generation PoE+ edge switch for digital enterprise networks. 16 PoE+ copper ports deliver data and 30W power for wireless APs, IP surveillance cameras and VoIP terminals. Four SFP+ ports support 1G or 10G uplink to aggregation switch, two of them can be used for high-speed stacking. Full-port MACsec encryption provides secure data transmission between network nodes. It supports VLAN, MSTP, 802.1X authentication, LLDP, ACL and QoS traffic scheduling. Widely deployed for campus wireless access, multi-site branch office and high security surveillance network.

Installation

Mount the switch on standard 19-inch rack. Connect AC power cord. Use console port for initial CLI configuration. Insert SFP+ transceiver or DAC cable for uplink/stacking connection. Configure stacking group, PoE power allocation, MACsec encryption and VLAN policies. Verify port link, PoE output and stack status after power-on.

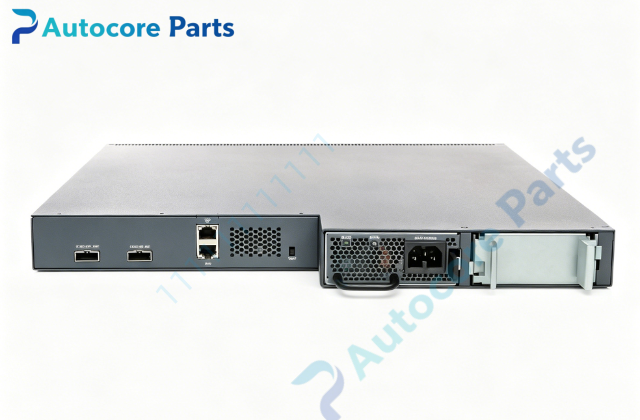

Interface16 PoE+ RJ45 gigabit ports,4 SFP+ 1/10G uplink/stack slots,RJ45 console,USB Micro-B console,USB-A port,AC power inlet and status LED indicators for Extreme Networks 5320-16P-4XE.

FeatureOriginal Extreme Networks 5320-16P-4XE PoE+ gigabit switch,16×30W PoE+ RJ45 ports,4×1/10G SFP+ ports,stackable up to 8 devices,full-port MACsec security encryption,wide temperature range,L2/L3 feature set. This spare is used for enterprise wireless edge and high-security access network upgrade & replacement.

DiagnosticSwitch no power: Check AC power cord and wall outlet voltage, inspect internal power module. PoE port no power: Check remaining PoE budget, port PoE enable status and copper cable quality. SFP+ port no link: Verify SFP+ module compatibility, fiber cleanliness and optical power via DDM. Stack connection failure: Confirm same firmware version for all stack members and stacking cable integrity. MACsec negotiation fail: Verify matching MACsec key configuration on peer device. Port link flapping: Inspect copper/fiber cable, auto-negotiation and connected terminal state.

Product Brief5320-16P-4XE is Extreme 1U 16-port PoE+ stackable gigabit edge switch with four 10G SFP+ ports and MACsec support,classic spare for enterprise wireless and security camera access network.
