Extreme Networks 5320-48T-8XE Stackable Gigabit Edge Switch

Technical SpecificationsModel：5320-48T-8XE Brand：Extreme Networks Product Type：1U rack mount managed non-PoE universal edge access switch

Front Ports:

• 48 × 10/100/1000BASE-T RJ45 copper ports (non-PoE), MACsec supported, auto full/half duplex

• 8 × 1/10G SFP+ uplink ports, 2 ports dedicated for stacking; last 4 uplink ports support 100M speed

• 1 × RJ45 serial console port for local CLI management

• 1 × USB Micro-B console port

• 1 × USB Type-A port for firmware upgrade and storage

Switch Fabric: 176 Gbps Forwarding Rate: 130.9 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 32K MAC entries Security: Full-port MACsec link encryption QoS: 8 hardware priority queues per port Power Supply: Built-in single AC power module, 100-240V AC input Cooling: Fan cooling Software OS: Support Switch Engine / Fabric Engine, stackable up to 8 units Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Weight: 4.6 kg Status LED: System, stack ID, port link/activity indicators

System compatibility

5320-48T-8XE belongs to Extreme 5320 universal edge switch series. It can stack with other 5320 series switches, maximum 8 units per stack and managed via single IP address. Compatible with Extreme certified 1G/10G SFP+ transceivers and DAC cables. Supports Layer2 switching and advanced Layer3 routing, full-port MACsec encryption. Suitable for enterprise wiring closet, office wired access and medium campus edge network deployment without PoE requirement.

Function

5320-48T-8XE is next-generation non-PoE gigabit edge switch for enterprise wired access. 48 gigabit copper ports connect workstations, desktop terminals and network equipment. Eight multi-speed SFP+ ports support 1G or 10G fiber uplink to aggregation switch, two of them can be used for high-speed stacking. Full-port MACsec provides end-to-end secure link encryption for sensitive data transmission. It supports VLAN, MSTP, 802.1X authentication, LLDP, ACL and QoS traffic scheduling. Widely used for office wired network, server room access and medium enterprise wiring closet deployment.

Installation

Mount the switch on standard 19-inch rack. Connect AC power cord. Use console port for initial CLI configuration. Insert SFP+ transceiver or DAC cable for uplink/stacking connection. Configure stacking group, VLAN and MACsec encryption policies according to network requirement. Verify port link and stack status after power-on.

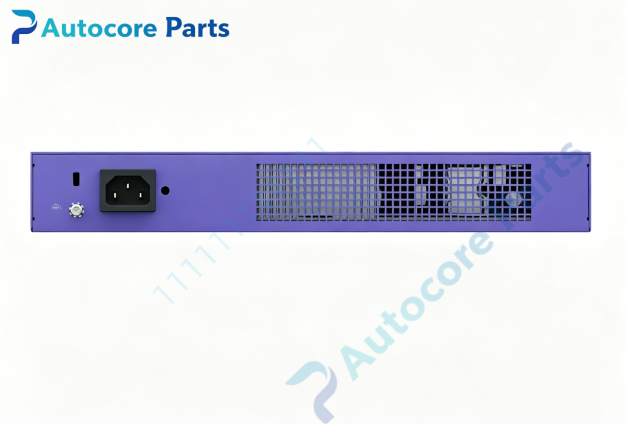

Interface48 RJ45 gigabit ports,8 SFP+ 1/10G uplink/stack slots,RJ45 serial console,USB Micro-B console,USB-A port,AC power inlet and status LED indicators for Extreme Networks 5320-48T-8XE.

FeatureOriginal Extreme Networks 5320-48T-8XE gigabit switch,48×non-PoE RJ45 ports,8×1/10G SFP+ multi-speed ports,stackable up to 8 devices,full-port MACsec security encryption,support dual operating system (Switch Engine / Fabric Engine),hardware ACL and QoS. This spare is used for enterprise wiring closet and wired edge network upgrade & replacement.

DiagnosticSwitch no power: Check AC power cable and wall outlet voltage, inspect internal power module. Copper port no link: Verify RJ45 cable integrity, auto-negotiation and peer device state. SFP+ port no link: Verify SFP+ module compatibility, fiber cleanliness and optical power via DDM. Stack connection failure: Confirm same firmware version for all stack members and stacking cable integrity. MACsec negotiation fail: Verify matching MACsec key configuration on peer network device. Port link flapping: Inspect copper/fiber cable, avoid excessive tension and cable damage.

Product Brief5320-48T-8XE is Extreme 1U 48-port non-PoE stackable gigabit edge switch with eight 10G SFP+ ports and MACsec support,classic spare for enterprise wiring closet and wired access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
