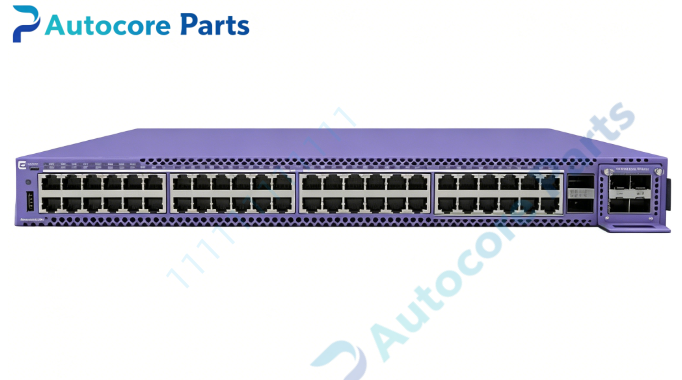

Extreme Networks 5520-12MW-36W Multi-Gigabit PoE Stackable Switch

Technical SpecificationsModel：5520-12MW-36W Brand：Extreme Networks Product Type：1U rack mount managed hybrid multi-gigabit PoE access switch

Front Ports:

• 12 × 2.5GBASE-T Multi-Gig RJ45 ports, PoE++ IEEE802.3bt (60W max per port), MACsec capable

• 36 × 10/100/1000BASE-T RJ45 ports, PoE+ IEEE802.3at (30W max per port), MACsec capable

• 8 × 1/10G SFP+ uplink ports, support stacking function, MACsec capable

• 1 × RJ45 serial console port

• 1 × USB Micro-B console port

• 1 × USB Type-A port for firmware & file storage

Switch Fabric: 240 Gbps Forwarding Rate: 178.6 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 64K MAC entries Security: Full-port hardware MACsec encryption QoS: 8 hardware priority queues per port Total PoE Budget: 1440W Power Supply: Dual hot-swappable AC power supplies, 100-240V AC, support power redundancy Cooling: Variable speed fans Software OS: Fabric Engine, stackable up to 8 switches Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Weight: 7.8 kg Status LED: System, PoE power, stack ID, per-port link/activity indicators

System compatibility

5520-12MW-36W belongs to Extreme 5520 high-performance multi-gig edge switch series. It can stack with other 5520 series switches, maximum 8 units per stack under single IP management. Compatible with Extreme certified 1G/10G SFP+ transceivers and DAC cables. Supports Layer2 switching and full Layer3 routing protocols, hardware MACsec encryption. Designed for high-density enterprise Wi-Fi 6/7 AP deployment, IP cameras and multi-gig terminal access.

Function

5520-12MW-36W is high density hybrid multi-gigabit PoE switch for modern enterprise access network. 12 2.5G PoE++ ports deliver high speed and up to 60W power for latest Wi-Fi 6/7 wireless access points. 36 PoE+ gigabit ports connect conventional APs, IP cameras and VoIP phones. Eight SFP+ ports provide 1G/10G fiber uplink and high-speed stacking between switches. Full-port MACsec protects data transmission over link layer. It supports VLAN, MSTP/RSTP, 802.1X authentication, LLDP, hardware ACL and multi-level QoS scheduling. Widely deployed for large campus, hospital and high-density office wireless access.

Installation

Mount the switch into standard 19-inch rack. Install dual AC power supplies and connect power cords. Use console port for initial CLI configuration. Insert SFP+ transceivers or DAC cables for uplink and stacking. Configure stacking group, PoE power priority allocation, VLAN and MACsec security policies. Verify port link status, PoE output and stack health after power on.

Interface12×2.5G PoE++ RJ45,36×1G PoE+ RJ45,8×SFP+ 1/10G uplink/stack slots,RJ45 serial console,USB Micro-B console,USB-A port,dual PSU bays and LED indicators for Extreme Networks 5520-12MW-36W.

FeatureOriginal Extreme Networks 5520-12MW-36W hybrid multi-gig PoE switch,12×2.5G PoE++ +36×1G PoE+ ports,1440W total PoE budget,8×10G SFP+ uplink,hot-swappable redundant PSU,stackable up to 8 units,full-port MACsec encryption,hardware ACL. This spare is used for high-density Wi-Fi access and modern enterprise edge network upgrade & replacement.

DiagnosticSwitch no power: Check AC input, power supply seating and power cable integrity. PoE port no power: Check remaining PoE budget, PoE enable setting and RJ45 cable condition. Multi-gig port negotiation failure: Verify Cat6a or better copper cable quality and auto-negotiation. SFP+ uplink down: Check SFP module compatibility, fiber end cleanliness and DDM optical power. Stacking abnormal: Confirm consistent firmware version for all stack members and stacking cable quality. MACsec negotiation failure: Ensure matching security key on both ends of link. Port link flapping: Inspect copper cable, connector damage and peer device configuration.

Product Brief5520-12MW-36W is Extreme 1U hybrid multi-gig PoE stackable switch with 12×2.5G PoE++ and 36×1G PoE+ ports,classic spare for enterprise high density Wi-Fi6/Wi-Fi7 access deployment.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
