Extreme Networks C5G124-48P2 Gigabit PoE+ Stackable Switch

Technical SpecificationsModel:C5G124-48P2 Brand:Extreme Networks Product Type:1U rackmount stackable Layer2/Layer3 PoE+ access switch Ports:48 × 10/100/1000BASE-T PoE+ RJ45 ports,2 × shared SFP uplink slots PoE standard:IEEE 802.3at PoE+, max 30W per port Switching capacity:176 Gbps Forwarding rate:131 Mpps MAC address table:32000 entries VLAN:4094 VLAN IDs Redundancy:Supports external EPS-C2 redundant power supply Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:6.60 kg

System compatibilityC5G124-48P2 belongs to Extreme Networks C5 stackable switch family. It can stack with other C5G124 and C5K175 series switches. Compatible with Extreme validated 1G SFP and 10G SFP+ transceivers. Designed for enterprise campus, building access, IP camera and wireless AP deployments. Widely used for enterprise wiring closet spare replacement.

FunctionC5G124-48P2 is a multi-layer managed PoE+ gigabit access switch. It supports static and dynamic routing, VLAN segmentation, STP/RSTP/MSTP, ACL, QoS, IPv4/IPv6 multicast and SNMP. It automatically detects powered devices, monitors PoE power consumption, port link status, internal temperature and power health. Used to build stacked resilient access networks for large campuses and office buildings.

InstallationMount the switch on 19-inch 1U rack. Connect AC power cord, external redundant power supply can be installed optionally. Connect Cat5e/Cat6 cables to PoE+ RJ45 ports and insert SFP transceivers for fiber uplink. Connect console port for ExtremeXOS configuration. Verify boot sequence, port link and PoE status before putting into production.

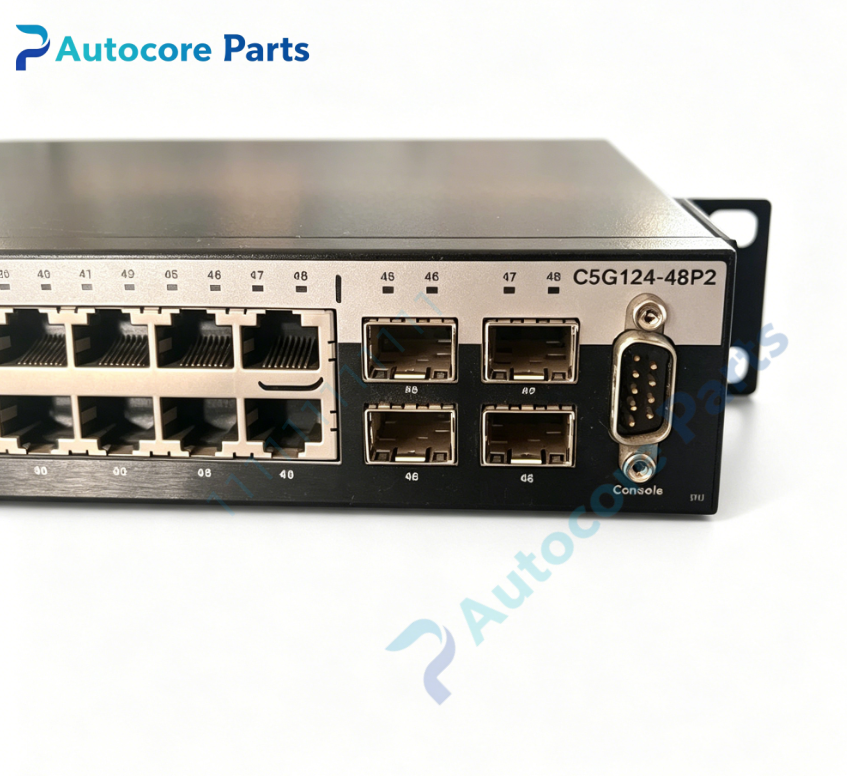

Interface48×PoE+ RJ45 ports,2×shared SFP uplink slots,serial console port,status LEDs,AC power inlet,rack mounting ears for Extreme Networks C5G124-48P2.

FeatureOriginal Extreme Networks C5 series 1U rackmount 48-port PoE+ stackable Layer3 switch, wire-speed forwarding, IEEE802.3at PoE+, transceiver DDM monitoring, external redundant power support, ExtremeXOS OS, built-in self-diagnostic function. This spare supports multi-service voice, video and wireless access deployment for enterprise campus networks.

DiagnosticSwitch fails to boot: check AC power cord and wall power supply. PoE port no power: verify PD detection, total PoE budget and port enable status. Port link down: check Cat5e/Cat6 cable, SFP transceiver and port admin status. Transceiver no DDM data: confirm Extreme validated SFP transceiver. Over-temperature alarm: inspect chassis ventilation and clean dust.

Product BriefC5G124-48P2 is Extreme Networks 1U rackmount 48-port gigabit PoE+ stackable Layer3 managed switch with dual SFP uplink slots, classic spare part for enterprise campus wiring closet access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
