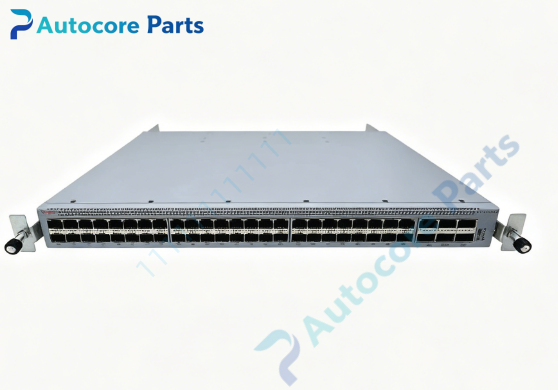

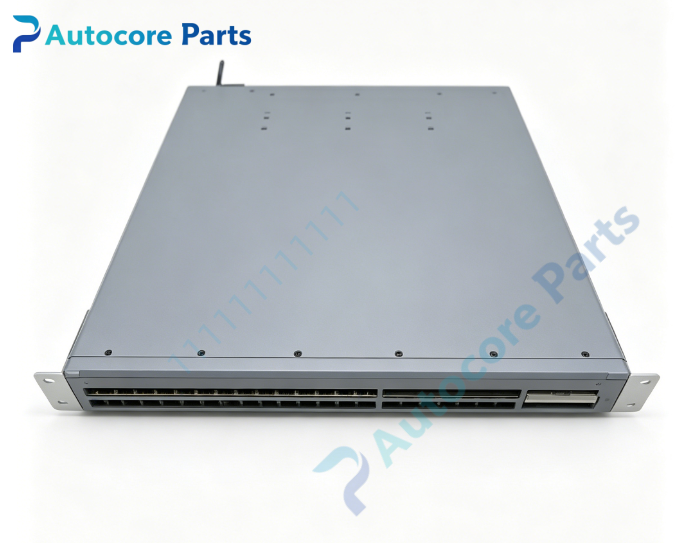

Extreme Networks EC720003X-E6 High Density Licensed 10G/40G Managed Switch

Technical SpecificationsModel：EC720003X-E6 Brand：Extreme Networks (Avaya legacy) Product Type：1U rackmount Layer2/Layer3 data center TOR switch (port licensed version)

Ports:

• 48 ×1G/10GBASE-X auto-sensing SFP+ slots, optical transceiver sold separately

• 6 ×40G QSFP+ uplink ports

• 1 ×10/100/1000BASE-T out-of-band management port

• 1 ×RJ45 serial console port

• 1 ×USB 2.0 management port

Switching capacity：2.56 Tbps Forwarding rate：1428 Mpps MAC address table：224000 entries Jumbo frame：9216 bytes OS：VOSS (Virtual Services Operating System) Airflow：Back-to-front airflow Redundancy：Dual hot-swappable AC power supplies, three hot-swappable fan trays License：Port license activated version

Power & fan：Dual hot-swap AC PSU, three independent hot-swappable fan modules, back-to-front airflow Operating temperature：0℃ ~ +40℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：6.8kg

System compatibility

EC720003X-E6 belongs to Extreme VSP7200 series VSP7254XSQ top-of-rack switch, inherited from Avaya networking product line. It is the port licensed variant of VSP7254XSQ. Compatible with Extreme/Avaya validated 1G SFP,10G SFP+ and 40G QSFP+ transceivers. Managed via local CLI/web GUI. Widely deployed for data center server rack access, enterprise core high-speed interconnection spare replacement.

Function

EC720003X-E6 is high-density low-latency Layer3 TOR switch with port license enabled. 48 SFP+ ports provide 10G downlink for servers and storage equipment. Six QSFP+ ports support 40G high-speed uplink to core switches. It supports static & dynamic routing, VLAN, STP/RSTP/MSTP, Fabric Connect, LACP link aggregation, ACL, QoS and multicast protocols. It monitors port optical DDM data, power supply state, system temperature and fan health, and triggers hardware fault alarms. Used for data center top-of-rack and large enterprise core network.

Installation

Mount the switch on standard 19-inch 1U rack. Install dual hot-swappable AC power supplies and connect power cords. Insert SFP+/QSFP+ transceivers and fiber patch cords. Connect console port for initial configuration and license verification. Verify boot,port link and routing function before commissioning.

Interface48×SFP+ 1G/10G slots,6×QSFP+ 40G uplink ports,1G out-of-band management port,RJ45 serial console,USB management port,port status LEDs,reset button,hot-swappable PSU slots,hot-swappable fan trays,ground terminal,rack mounting ears for Extreme Networks EC720003X-E6.

FeatureOriginal VSP7200 series 1U rackmount high-density data center TOR switch,port licensed VSP7254XSQ,48×1/10G SFP+ plus 6×40G QSFP+ uplink,low latency design,support Fabric Connect,dual hot-swappable PSU,three hot-swap fan trays,built-in optical DDM diagnostic function. This spare is suitable for data center top-of-rack network maintenance and upgrade.

DiagnosticSwitch fails to boot: Check PSU installation and AC power input. SFP+/QSFP+ port no link: Verify optical transceiver,fiber cable and port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme/Avaya compatible optical module and correct insertion. Over-temperature alarm: Check fan tray running status and cabinet ventilation,clean dust buildup. License / port disabled: Confirm valid VOSS port license status. Fabric Connect negotiation failure: Verify VOSS firmware version and peer device configuration.

Product BriefEC720003X-E6 is Extreme Networks VSP7200 series 1U rackmount Layer3 high-density licensed TOR managed switch with 48×1/10G SFP+ ports and 6×40G QSFP+ uplink ports,classic spare part for data center top-of-rack network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
