Extreme Networks EC84000X2-E6 SFP+ Line Module

Technical SpecificationsModel：EC84000X2-E6 Brand：Extreme Networks (Avaya legacy) Product Type：Hot-swappable line card for VSP8404C chassis

Ports:

• 24 ×1G/10GBASE-X auto-sensing SFP+ slots, transceivers sold separately

• Front panel per-port status LED indicators

• Backplane connector for VSP8400 fabric

Switching capacity per module：480Gbps Forwarding rate：360Mpps MAC address table：224000 entries Jumbo frame：9216 bytes OS：VOSS (Virtual Services Operating System) Hot swap：Support hot insertion and removal without chassis shutdown

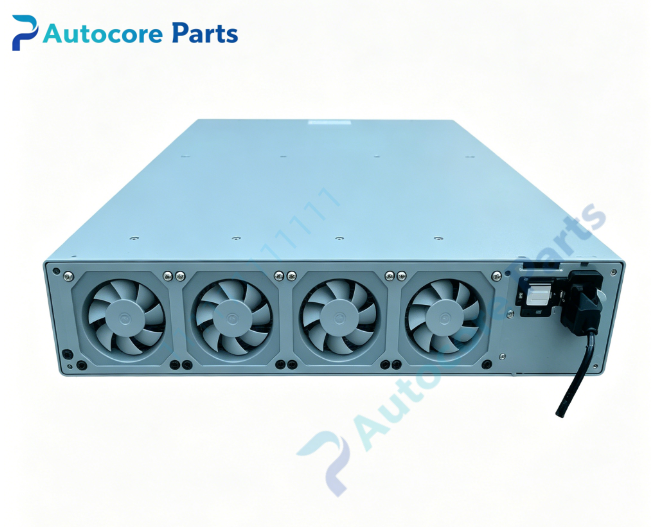

Power & fan：Power supplied by VSP8404C chassis backplane,shared chassis fan cooling Operating temperature：0℃ ~ +40℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：1.38kg

System compatibility

EC84000X2-E6 belongs to VSP8400 series chassis platform, inherited from Avaya. Compatible exclusively with VSP8404C 4-slot chassis. Works with Extreme/Avaya validated 1G SFP and 10G SFP+ optical transceivers. Managed through chassis main control module CLI / web GUI. Widely used for data center core chassis 10G port expansion and network maintenance spare replacement.

Function

EC84000X2-E6 is hot-swappable 10G line card for VSP8404C chassis. It supplies 24 multi-rate SFP+ interfaces to expand high-density 10G fiber access or uplink ports. Supports static & dynamic routing, VLAN, STP/RSTP/MSTP, Fabric Connect, LACP link aggregation, ACL, QoS and multicast functions. The module supports DDM to monitor optical power, temperature and voltage of inserted transceivers, reports port and onboard temperature faults to chassis management engine. Applied for data center core chassis high speed port expansion.

Installation

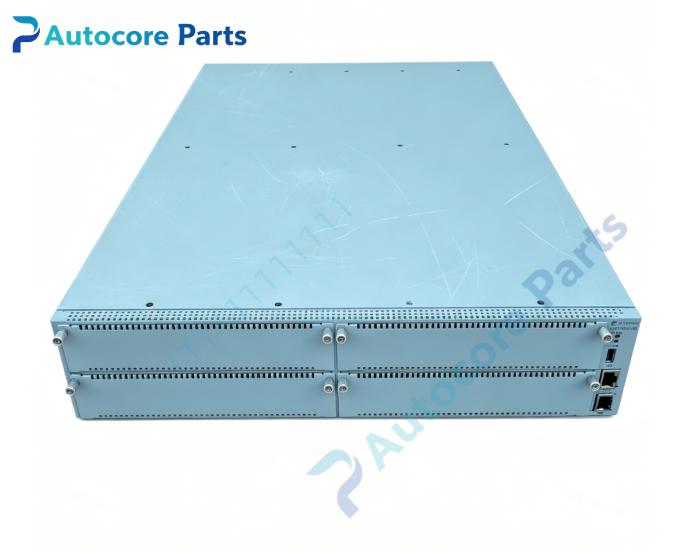

Wear ESD anti-static wrist strap. Remove blank filler panel from the target slot on VSP8404C chassis. Slide the line card fully into the slot and tighten captive screws. The chassis will automatically detect and initialize the module. Insert SFP+ transceivers and fiber patch cords. Verify module identification and port status via chassis CLI before commissioning.

Interface24×SFP+ multi-rate slots,port status LEDs,backplane gold finger connector,locking screws for Extreme Networks EC84000X2-E6.

FeatureOriginal VSP8400 hot-swappable 24×1/10G SFP+ line card,auto-negotiation 1G/10G,support jumbo frame and Fabric Connect,DDM optical diagnostic,hot-swap maintenance without chassis power off,built-in port monitoring. This spare expands high-density 10G fiber ports for VSP8404C core chassis.

DiagnosticModule undetected: Check gold finger cleanliness,slot status and chassis VOSS firmware compatibility. SFP+ port no link: Verify SFP+ transceiver,fiber polarity,cable quality and peer port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme/Avaya compatible optical module and correct insertion. Over-temperature alarm: Check chassis fan tray running status and cabinet ventilation,clean dust buildup. Fabric Connect negotiation failure: Verify firmware version and peer device configuration.

Product BriefEC84000X2-E6 is Extreme Networks VSP8400 series hot-swappable 24×1G/10G SFP+ line card for VSP8404C chassis,classic spare part for data center core chassis high-speed port expansion and overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
