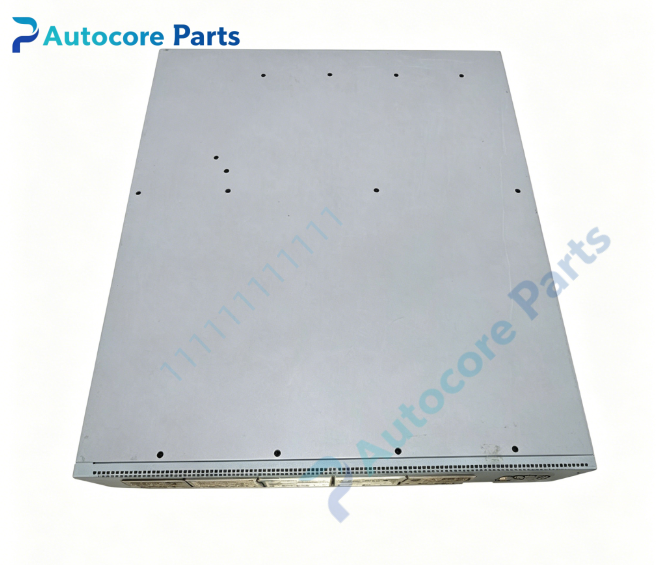

Extreme Networks EC8200A01-E6 VSP 8284XSQ Ethernet Switch

Technical SpecificationsModel：EC8200A01-E6 Brand：Extreme Networks Product Type: 2U rack mount high density data center switch (VSP 8284XSQ)

Front Ports:

• 80 × SFP+ slots for 10GBASE-X transceivers, DAC/AOC cables

• 4 × QSFP+ slots for 40G uplink interconnection

• 1 × 10/100/1000BASE-T OOB management port

• RJ45 serial console port, USB 2.0 port

• Multi-color LED indicators for per-port, fan, PSU and system health

Switching Capacity: 1.28 Tbps Forwarding Rate: 960 Mpps Max Jumbo Frame: 9216 bytes Virtualization: VDP, fabric virtualization, MLAG Routing & Data Center Protocol: IPv4/IPv6, BGP, OSPF, EVPN, VXLAN QoS: 8 hardware priority queues per port Power Supply: Hot-swappable AC PSU, support optional redundant AC power Cooling: 4+1 hot-swappable redundant fan modules Software OS: VOSS (Virtual Operating System) Operating temperature：0℃ ~ +40℃ Weight: Approx 13.6 kg Mounting: Standard 19-inch 2U rack bracket

System compatibility

EC8200A01-E6 belongs to Extreme VSP8200 series (VSP8284XSQ). Compatible with Extreme certified 10G SFP+,40G QSFP+ optical modules, DAC and AOC cables. Can build VSP fabric with other VSP 8000 family switches, commonly deployed as leaf switch in leaf-spine data center architecture.

Function

EC8200A01-E6 is high-density 2U data center leaf switch. It provides 80 10G SFP+ downlink ports to connect servers and storage, four 40G QSFP+ uplink ports for high-speed fabric interconnection to spine layer. Powered by VOSS operating system, it supports EVPN-VXLAN overlay network for virtualized data center. MLAG technology enables multi-chassis link aggregation to eliminate single point of link failure. Redundant fans and optional dual AC power enhance reliability for 24/7 data center operation. Widely used for enterprise virtualization data center, cloud server room and high-performance computing access layer.

InstallationMount unit into standard 19-inch equipment rack. Install AC power supply and connect mains power cord. Insert SFP+/QSFP+ transceivers or DAC/AOC cables. Access console port for initial VOSS configuration, set VLAN, MLAG, EVPN-VXLAN and QoS policy. Verify port negotiation and fabric peering status after power-up.

Interface80 × SFP+ cages,4 × QSFP+ cages,OOB management RJ45,console port,USB port,LED indicators,PSU and fan slots for Extreme Networks EC8200A01-E6.

FeatureOriginal Extreme Networks EC8200A01-E6 VSP8284XSQ switch,80×10G SFP+ +4×40G QSFP+,1.28Tbps switching capacity,VOSS operating system,EVPN-VXLAN and MLAG support,redundant fan modules. This spare switch is used for data center leaf layer network deployment and hardware replacement.

DiagnosticDevice boot failure: Check AC power input, re-seat power module and fan tray. SFP+/QSFP+ port no link: Verify transceiver compatibility, clean fiber connector, check DDM optical power readings. MLAG peer down: Confirm inter-switch link connectivity, match VOSS firmware version for peer devices. EVPN-VXLAN tunnel abnormal: Verify underlay routing reachability and VNI configuration consistency. Overheat alarm: Check fan operation status and cabinet airflow.

Product BriefEC8200A01-E6 is Extreme VSP8284XSQ 2U high-density 80×10G +4×40G data center leaf switch running VOSS,classic spare for virtualized data center fabric.
