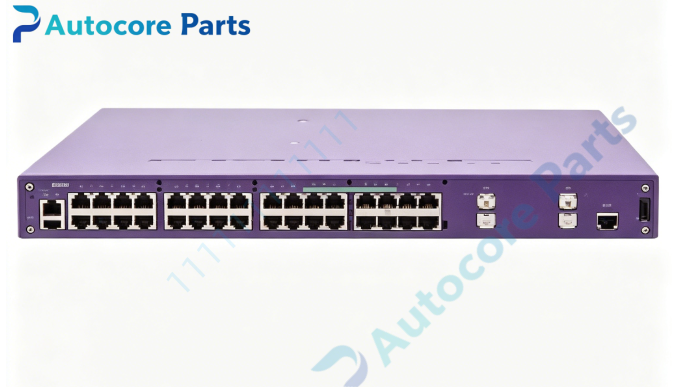

Extreme Networks E4G-400-DC Cell Site Aggregation Router

Technical SpecificationsModel：E4G-400-DC Brand：Extreme Networks Product Type: 1U rack mount carrier-grade mobile cell site aggregation router, DC power variant

Front Ports:

• 28 × 10/100/1000BASE-T Gigabit copper ports

• 4 × Combo GE ports (RJ45 / SFP shared interface)

• Expansion slots: optional 6×10G module or 16-port T1/E1 pseudowire module

• Timing Interfaces: 4 × mini-BNC Sync In / Sync Out, RJ422 BITS-IN port

• RJ45 out-of-band management port, RJ45 serial console port, USB port

• Multi-color LED indicators for port status, timing lock and system health

Routing & Timing:

• SyncE Synchronous Ethernet, IEEE 1588v2 PTP precision time protocol

• MPLS, pseudowire, CESoPSN / SAToP TDM over IP, static routing, OSPF, BGP

• EAPS / G.8032 Ethernet ring protection Max Jumbo Frame: 9216 bytes QoS: Hierarchical hardware QoS, traffic shaping for mobile backhaul streams Power Supply: Dual hot-swappable -48V DC PSU (telecom standard negative DC input, load sharing redundant) Software OS: Extreme E4G router OS Operating temperature：0℃ ~ +40℃ Weight: Approx 4.9 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

E4G-400-DC belongs to Extreme E4G cell site router family. Compatible with 1G SFP transceivers, optional 10G and T1/E1 interface modules. Designed for mobile operator radio site aggregation, interconnect cellular base stations and mobile core network. Can be mixed deployed with E4G-400-AC in same network fabric.

Function

E4G-400-DC is carrier-grade cell site aggregation router powered by telecom standard -48V DC, widely used in telecom central office and remote cell sites without AC mains. It aggregates traffic from multiple LTE/5G radio base stations and forwards data to mobile core network. Integrated high-precision timing ports deliver SyncE and 1588v2 clock synchronization required for mobile radio access. Combo ports support automatic failover between copper and fiber links for link redundancy. Optional T1/E1 module converges legacy 2G/3G TDM traffic via pseudowire. Dual redundant -48V DC power supplies guarantee non-stop operation for 24/7 telecom service. Widely deployed for mobile operator cell site, telecom edge room and radio backhaul aggregation.

InstallationApply ESD protection. Mount router into standard 19-inch rack. Install dual hot-swappable DC power modules and connect -48V telecom DC power cables with correct polarity. Insert SFP transceivers or install optional 10G / T1E1 expansion modules. Access console port for initial router configuration, set timing profile, MPLS, pseudowire and QoS policy. Verify clock synchronization and routing session after power-up.

Interface28 GE RJ45 ports,4 combo SFP/RJ45 ports,mini-BNC timing connectors,BITS-IN port,management RJ45,console port,USB port,LED indicators,DC PSU slots for Extreme Networks E4G-400-DC.

FeatureOriginal Extreme Networks E4G-400-DC cell site aggregation router,1U form factor,28GE + expandable 10G/T1E1 interfaces,built-in SyncE and 1588v2 timing,dual redundant -48V DC power,MPLS pseudowire and ring protection support. This spare router is used for telecom cell site edge aggregation hardware replacement and mobile backhaul network upgrade.

DiagnosticRouter boot failure: Check -48V DC input polarity and voltage, re-seat redundant DC PSU modules. Timing sync loss: Inspect mini-BNC timing cable, verify PTP/SyncE clock configuration. Combo port failover abnormal: Confirm copper and fiber port configuration rules, check transceiver compatibility. MPLS session down: Verify peer connectivity and matching label protocol parameters. Overheat alarm: Check cabinet airflow and fan module running status.

Product BriefE4G-400-DC is Extreme E4G series 1U -48V DC powered cell site aggregation router with integrated precision timing,classic spare for mobile telecom radio access edge backhaul network.
