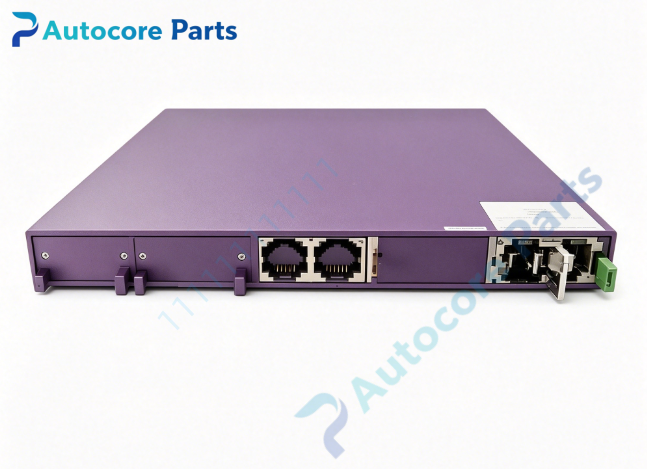

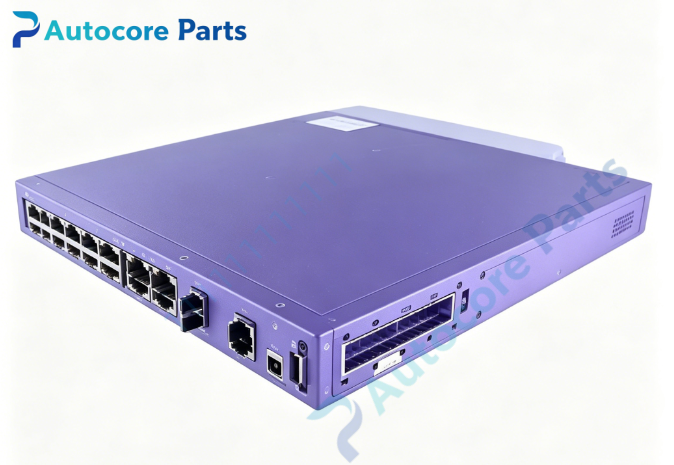

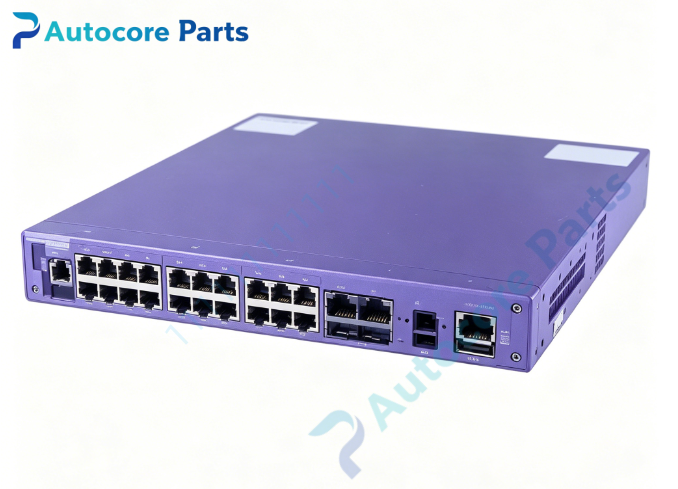

Extreme Networks E4G-400-AC Cell Site Aggregation Router

Technical SpecificationsModel：E4G-400-AC Brand：Extreme Networks Product Type: 1U rack mount carrier-grade mobile cell site aggregation router

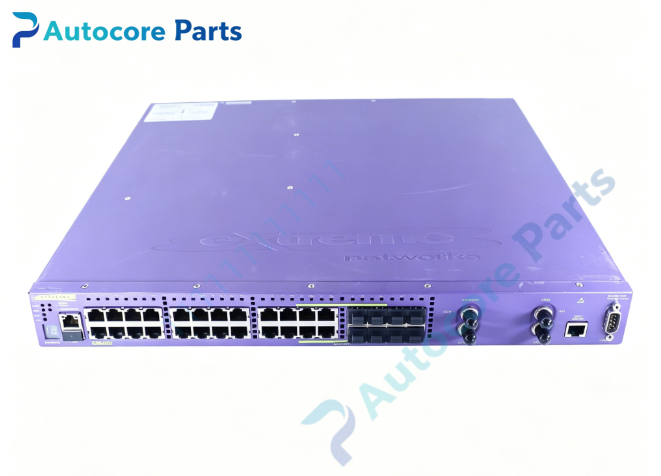

Front Ports:

• 28 × 10/100/1000BASE-T Gigabit copper ports

• 4 × Combo GE ports (RJ45 + SFP shared port)

• Expansion slots: support optional 6×10G module or 16-port T1/E1 pseudowire module

• Timing Interfaces: 4 × mini-BNC Sync In / Sync Out, RJ422 BITS-IN port

• RJ45 out-of-band management port, RJ45 serial console port, USB port

• Multi-color LED indicators for port, timing and system health

Routing & Timing:

• Support SyncE Synchronous Ethernet, IEEE 1588v2 PTP precision time protocol

• Pseudowire, MPLS, static routing, OSPF, BGP Max Jumbo Frame: 9216 bytes QoS: Hierarchical QoS, per-port hardware queues for mobile traffic shaping Power Supply: AC input power version, support redundant AC PSU Software OS: Extreme E4G router OS Operating temperature：0℃ ~ +40℃ Weight: Approx 4.9 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

E4G-400-AC belongs to Extreme E4G cell site router family. Compatible with 1G SFP transceivers, optional 10G and T1/E1 interface modules. Designed for mobile operator radio site aggregation, interconnects cellular base stations and mobile core network.

Function

E4G-400-AC is carrier-grade cell site aggregation router for mobile telecom networks. It aggregates traffic from multiple cellular radio base stations and forwards data to mobile core. Integrated high-precision timing ports provide SyncE and 1588v2 clock synchronization required for LTE/5G radio access network. Combo ports support automatic failover between copper and fiber links for link redundancy. Optional T1/E1 module supports legacy 2G/3G pseudowire service convergence. Redundant AC power design ensures stable continuous operation for telecom sites. Widely used for mobile operator cell site, edge telecom room, radio access aggregation deployment.

InstallationApply ESD protection. Mount router into standard 19-inch rack. Install AC power supply and connect mains power. Insert SFP transceivers or install optional 10G / T1E1 expansion modules. Access console port for initial router configuration, set timing profile, MPLS, pseudowire and QoS policy. Verify clock synchronization and routing session after power-up.

Interface28 GE RJ45 ports,4 combo SFP/RJ45 ports,mini-BNC timing connectors,BITS-IN port,management port,console port,USB port,LED indicators for Extreme Networks E4G-400-AC.

FeatureOriginal Extreme Networks E4G-400-AC cell site aggregation router,1U form factor,28GE + expandable 10G/T1E1 interfaces,built-in SyncE and 1588v2 timing,AC power,MPLS pseudowire support for mobile radio access network. This spare router is used for telecom cell site edge aggregation hardware replacement and network upgrade.

DiagnosticRouter boot failure: Check AC power input, re-seat redundant PSU module. Timing sync loss: Inspect mini-BNC timing cable, verify PTP/SyncE clock configuration. Combo port failover abnormal: Confirm copper and fiber port configuration rules, check transceiver compatibility. MPLS session down: Verify peer connectivity and matching label protocol parameters. Overheat alarm: Check cabinet airflow and fan module running status.

Product BriefE4G-400-AC is Extreme E4G series 1U AC powered cell site aggregation router with integrated precision timing,classic spare for mobile telecom radio access edge network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
