Extreme Networks ERS3650GTS-PWR Ethernet Routing Switch

Technical SpecificationsModel：ERS3650GTS-PWR Brand：Extreme Networks (Legacy Avaya) Product Type: 1U rack mount managed stackable enterprise Layer3 PoE+ access switch

Front Ports:

• 24 × 10/100/1000BASE-T RJ45 gigabit PoE+ ports (IEEE802.3af / 802.3at)

• 4 × SFP uplink slots for 1G fiber transceivers

• RJ45 serial console port, reset button

• Per-port LED indicators and system health LED

Switch Fabric: 52 Gbps Forwarding Rate: 38.7 Mpps Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 active 802.1Q tagged VLANs Routing: Static routing, RIP, OSPF, IGMP multicast routing QoS: L2-L4 hardware classification, 8 priority queues per port PoE Power Budget: Integrated PoE+ power supply, support IP phones, AP and surveillance cameras Power Supply: Built-in AC power module, support external RPS redundant power Software OS: ERS3600 firmware Operating temperature：0℃ ~ +50℃ Weight: Approx 4.8 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

ERS3650GTS-PWR belongs to ERS3600 stackable family. Multiple ERS3600 switches can be stacked as a single logical device. Compatible with 1G SFP transceivers. Designed for campus wiring closet PoE access, to connect wireless APs, IP cameras and VOIP phones.

Function

ERS3650GTS-PWR is 24-port PoE+ stackable Layer3 gigabit access switch of ERS3600 series. 24 PoE+ copper ports deliver data and power to wireless access points, IP phones and security cameras. Four SFP uplink slots provide flexible 1G fiber uplink to aggregation layer. Stacking capability simplifies multi-switch management. It supports 802.1X port authentication, ACL, broadcast storm control and IGMP multicast. External RPS interface supports backup power to improve service reliability. Widely used for campus, office building and hospital PoE wired access network.

InstallationMount switch into standard 19-inch rack. Connect AC power cord. Insert 1G SFP transceivers for fiber uplink as required. Use stacking cable if multi-unit stacking needed. Access console port for initial configuration, set VLAN, PoE profile, routing and security policy. Verify port status and stack synchronization after power-up.

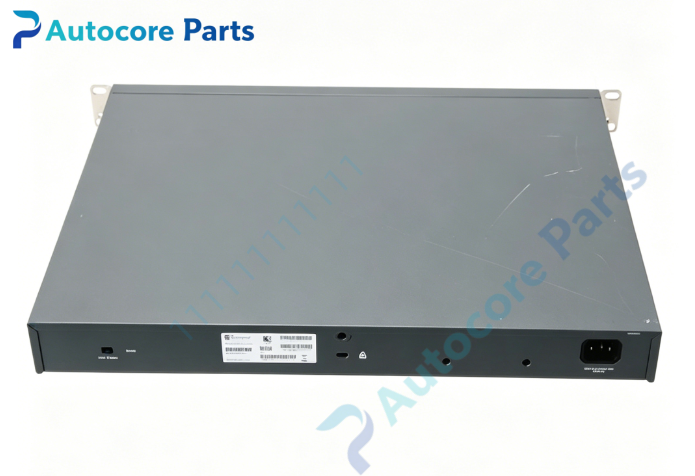

Interface24 PoE GE RJ45 ports,4 × SFP uplink slots,RJ45 console port,reset button,RPS connector and LED indicators for Extreme Networks ERS3650GTS-PWR.

FeatureOriginal Extreme Networks ERS3650GTS-PWR ERS3600 gigabit PoE+ switch,24×1G PoE+ ports +4 SFP uplink,stackable architecture,hardware L2/L3 forwarding,802.3af/at PoE+,hardware QoS and 802.1X security support. This spare switch is used for enterprise PoE wiring closet network maintenance and replacement.

DiagnosticSwitch boot failure: Check AC power input, inspect power circuit and RPS connection. PoE port no power: Verify PoE power budget, check cable and terminal compatibility. SFP port link down: Confirm SFP transceiver compatibility, clean fiber connector and check optical power readings. Stack split: Check stacking cable integrity, match firmware version of all stack members. Broadcast storm: Tune storm-control parameters and QoS queue scheduling.

Product BriefERS3650GTS-PWR is Extreme ERS3600 series 1U 24-port gigabit PoE+ stackable Layer3 switch,classic spare for enterprise PoE access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
