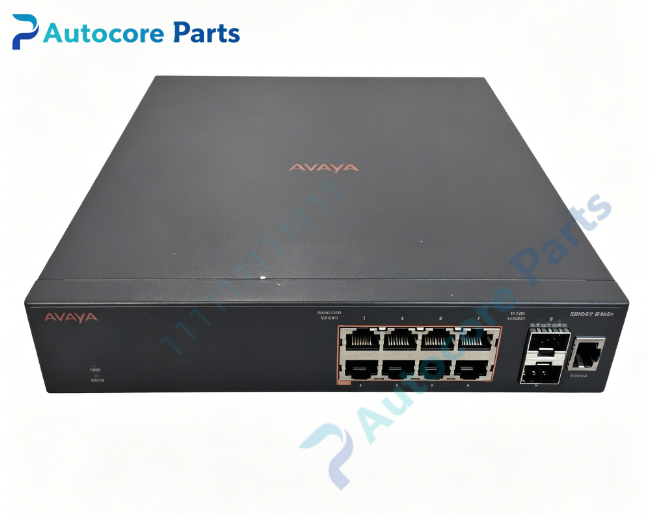

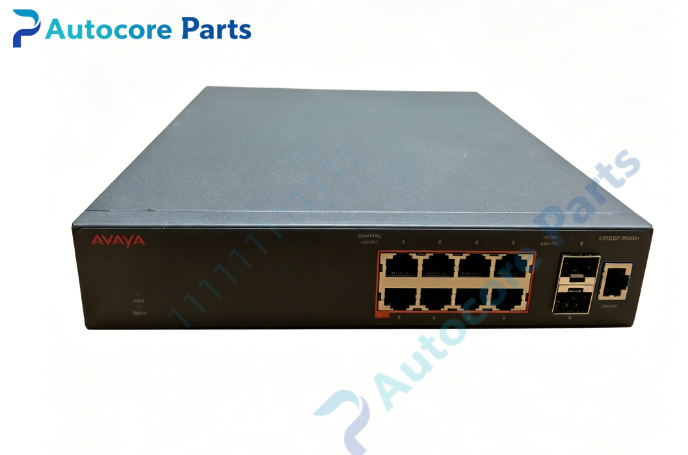

Extreme Networks AL3500A14-E6 ERS 3510GT-PWR+ Ethernet Routing Switch

Technical SpecificationsModel：AL3500A14-E6 Brand：Extreme Networks (Legacy Avaya) Product Type: 1U rack mount stackable enterprise Layer3 PoE+ access switch

Front Ports:

• 8 × 10/100/1000BASE-T RJ45 gigabit PoE+ ports (IEEE802.3af / 802.3at)

• 2 × SFP uplink slots for 1G fiber transceiver

• RJ45 serial console port, reset button

• Per-port LED indicators and system health LED

Switch Fabric: 20 Gbps Forwarding Rate: 14.8 Mpps Memory: 128MB DRAM,32MB Flash Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 active 802.1Q tagged VLANs Routing: Static routing, RIP, OSPF, IGMP multicast QoS: L2-L4 hardware classification, 8 priority queues per port PoE: Built-in PoE+ power budget for IP phones, wireless AP Power Supply: Integrated AC power supply Software OS: ERS 3500 firmware Operating temperature：0℃ ~ +50℃ Weight: Approx 2.6 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

AL3500A14-E6 belongs to ERS3500 series (Avaya legacy, acquired by Extreme). Can stack with other ERS3500 family switches. Compatible with standard 1G SFP optical transceivers. Suitable for small branch office, mini wiring closet PoE access deployment.

Function

AL3500A14-E6 is compact 8-port PoE+ stackable Layer3 gigabit switch, model ERS3510GT-PWR+. 8 PoE+ copper ports provide data and power for wireless access points, VOIP phones and IP cameras. Two SFP slots offer 1G fiber uplink to aggregation switch. Supports stack function to expand port quantity when more terminals required. It supports 802.1X port authentication, ACL security filtering and multicast control. Compact 1U design saves rack space for branch site. Widely used for retail store, small office and remote branch wired PoE access network.

InstallationMount switch into standard 19-inch rack. Connect AC power cord. Insert 1G SFP transceiver for fiber uplink. Use stacking cable if multi-unit stacking required. Access console port for initial configuration, set VLAN, PoE profile, routing and security policy. Verify port status after power-up.

Interface8 PoE GE RJ45 ports,2×SFP uplink slots,RJ45 console port,reset button,LED indicators for Extreme Networks AL3500A14-E6.

FeatureOriginal Extreme Networks AL3500A14-E6 ERS3510GT-PWR+ switch,8×1G PoE+ ports +2 SFP uplink,stackable architecture,hardware L2/L3 forwarding,support 802.1X and PoE+. This spare switch is used for small branch office PoE access network maintenance and hardware replacement.

DiagnosticSwitch fails to boot: Check AC power input, inspect power circuit. PoE port no power: Verify PoE budget, cable quality and terminal compatibility. SFP port link down: Confirm SFP compatibility, clean fiber connector and check optical power. Stack split: Check stacking cable integrity, match firmware of all stack members. Broadcast storm: Adjust storm-control and QoS queue parameters.

Product BriefAL3500A14-E6 is Extreme ERS3500 series 1U 8-port gigabit PoE+ stackable Layer3 switch,classic spare for small branch PoE wired access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
