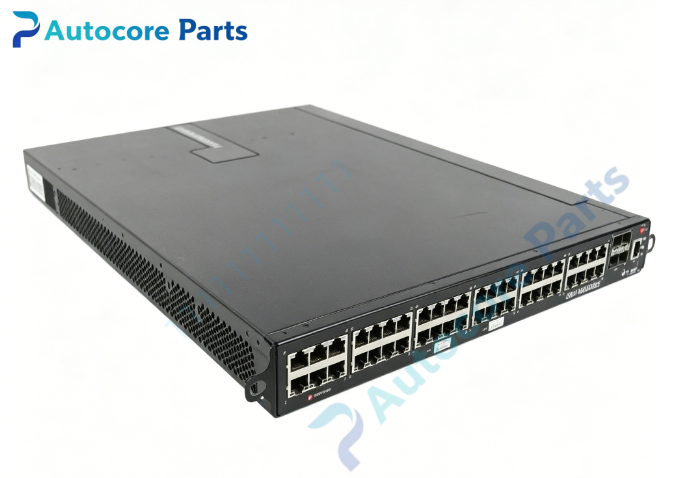

Extreme Networks SSA-T4068-0252 S130 SSA Standalone Switch Module

Technical SpecificationsModel：SSA-T4068-0252 Brand：Extreme Networks (Legacy Enterasys) Product Type: S130 SSA standalone switch module for S-series chassis

Front Ports:

• 48 × 10/100/1000BASE-T RJ45 ports, PoE+ compliant (IEEE802.3af / 802.3at)

• 4 × SFP+ slots for 10GBASE-X uplink

• COM serial console port, Micro-USB debug port, offline/restart button, PoE mode button

• Per-port LED indicators and system health LED

Switching Capacity: 176 Gbps Forwarding Rate: 132 Mpps Max Jumbo Frame: 9216 bytes Authentication: Default 512 authenticated user capacity, license upgrade available VLAN: Up to 4094 802.1Q tagged VLANs Routing: Static routing, OSPF, multicast routing Security & Access: 802.1X, MAC authentication, ACL, per-port user limit QoS: Hardware L2-L4 classification, 8 priority queues per port Software OS: EOS (Extreme Operating System), minimum firmware 7.01.01 Power Supply: PSU sold separately, compatible with SSA-AC-PS-1000 Operating temperature：0℃ ~ +40℃ Weight: Approx 7.6 kg Mounting: Install into S130 / S150 S-series chassis slot

System compatibility

SSA-T4068-0252 belongs to S130 SSA family, works inside Extreme S130 and S150 chassis. Compatible with SSA-AC-PS-1000 1000W AC power supply module. Supports 10G SFP+ transceivers, DAC/AOC cables. Optional license can expand authenticated user capacity and remove per-port user limits.

Function

SSA-T4068-0252 is high-density PoE+ SSA module for S-series chassis. 48 gigabit PoE+ copper ports deliver data and power to wireless APs, IP phones and surveillance cameras. Four 10G SFP+ uplink ports provide high-speed fiber interconnection to core/aggregation switches. It supports 802.1X port authentication for campus security access control. User capacity license can expand login terminal quantity. Works with redundant hot-swappable power modules to ensure non-stop service. Widely deployed for university campus, office building and hospital PoE access layer.

InstallationFollow ESD protection procedure. Insert SSA module into empty S130/S150 chassis slot and lock latches. Install matching SSA AC power supply module. Plug RJ45 copper cables and insert SFP+ transceivers for uplink. Access console port for initial EOS configuration, set PoE profile, VLAN, 802.1X security and QoS rules. Verify port status and authentication function after power-up.

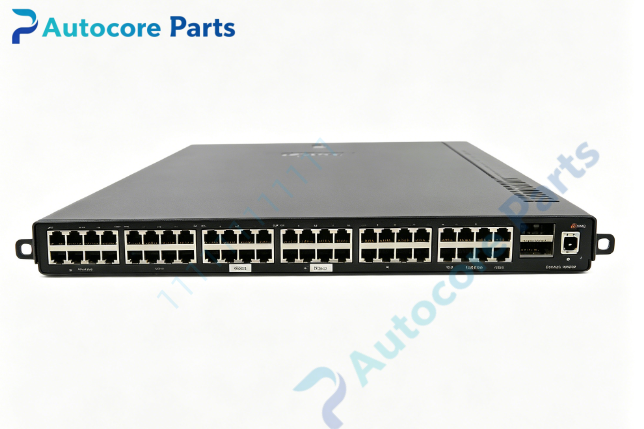

Interface48 PoE GE RJ45 ports,4×10G SFP+ slots,COM console port,Micro-USB debug port,PoE mode button,restart button,LED indicators for Extreme Networks SSA-T4068-0252.

FeatureOriginal Extreme Networks SSA-T4068-0252 S130 SSA module,48×1G PoE+ +4×10G SFP+ uplink,EOS operating system,built-in 802.1X authentication,user capacity upgrade license supported. This spare module is used for S-series chassis PoE access port expansion and hardware replacement.

DiagnosticModule undetected: Confirm module fully seated in chassis slot, check EOS firmware compatibility. PoE port no power: Verify power supply power budget, check PoE mode setting and cable. SFP+ port link down: Confirm transceiver compatibility, clean fiber end and check DDM optical readings. Authentication failure: Verify user license capacity and 802.1X server reachability. Overheat alarm: Check chassis fan tray and internal airflow.

Product BriefSSA-T4068-0252 is Extreme S130 SSA 48-port PoE+ gigabit module with four 10G SFP+ uplink ports,classic spare for enterprise high-density PoE wired access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
