Extreme Networks FTL4C3QE1C-EX Optical Transceiver Module

Technical SpecificationsModel：FTL4C3QE1C-EX Brand：Finisar (Extreme compatible EX coded version) Product Type：Hot-swappable QSFP+ optical transceiver

Interface: QSFP+, SFF-8436 MSA compliant Standard: 40GBASE-LM4 Data Rate: 41.25Gbps aggregate (4 ×10.3125Gbps NRZ) Wavelength: 4 CWDM wavelengths:1270nm,1290nm,1310nm,1330nm Connector: Duplex LC/UPC Fiber & Reach:

• OM3 multimode fiber:140m

• OM4 multimode fiber:160m

• G.652 single-mode fiber:1km Monitoring: DOM digital optical monitoring, real-time temp, supply voltage, Tx/Rx optical power Power consumption: Max 3.5W Hot swap: Yes Laser Class: Class 1 Operating temperature：0℃ ~ +70℃

System compatibility

FTL4C3QE1C-EX is EX variant pre-coded for Extreme Networks equipment. Works on Extreme switches/routers with QSFP+ ports, including SLX9850, Summit X670V, X670-G2 series. It is a universal dual-fiber 40G module, no MPO ribbon cable required.

Function

FTL4C3QE1C-EX is 40GBASE-LM4 universal QSFP+ transceiver. It uses four CWDM 10G lanes over one pair of duplex LC fiber. It can run on multimode fiber for medium short rack links or single-mode fiber up to 1km for building interconnection. Simplifies cabling compared with SR4 MPO ribbon, widely used for leaf-spine 40G uplink.

Installation

Insert QSFP+ module into QSFP+ port until latch locks. Connect duplex LC fiber patch cord. Verify module recognition and link status via ExtremeXOS/SLX-OS CLI. Check fiber polarity and end-face cleanliness.

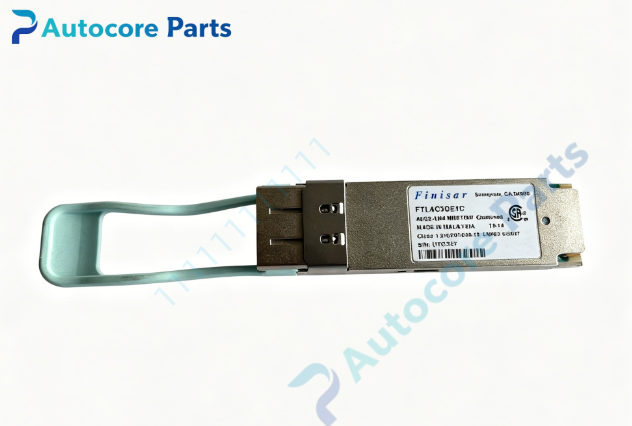

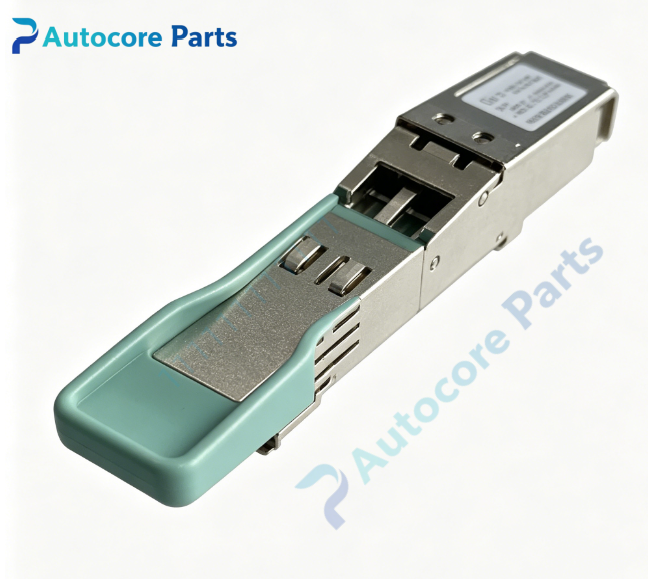

InterfaceQSFP+ gold finger connector, duplex LC optical port, status LED for Finisar FTL4C3QE1C-EX.

FeatureOriginal Finisar FTL4C3QE1C-EX 40GBASE-LM4 QSFP+ universal transceiver,4-channel CWDM,duplex LC,support OM3/OM4 MMF and SMF up to 1km,DOM monitoring,hot-swappable,pre-programmed EX EEPROM for Extreme. This spare is used for data center 40G medium-reach duplex fiber interconnection.

DiagnosticModule undetected: Re-seat QSFP+ module, verify host firmware and EX EEPROM compatibility. Link down: Check LC fiber polarity, clean fiber end face, confirm correct fiber type. Low optical power: Inspect patch cord attenuation, sharp bend or dirty connector. DOM alarm: Check module temperature and supply voltage.

Product BriefFTL4C3QE1C-EX is Finisar 40GBASE-LM4 QSFP+ universal optical transceiver with EX coding for Extreme hardware,support both multimode and single-mode fiber,classic spare for data center 40G duplex LC fiber links.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
