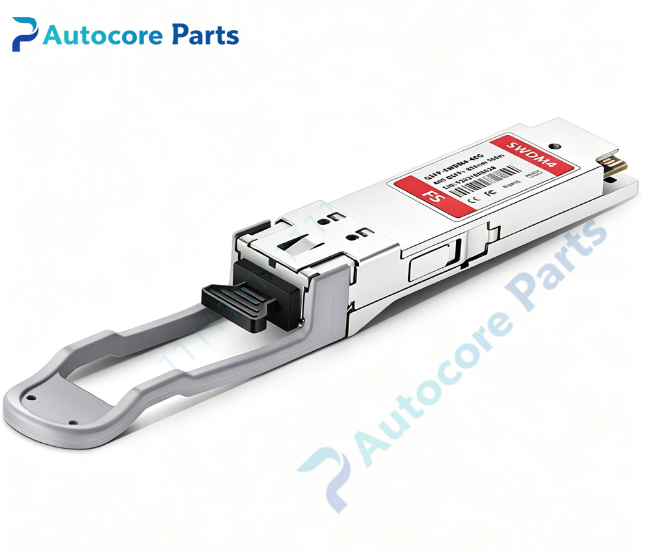

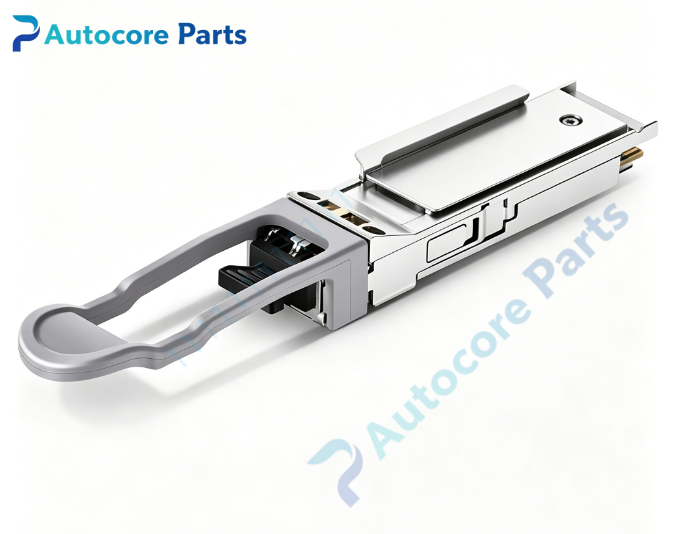

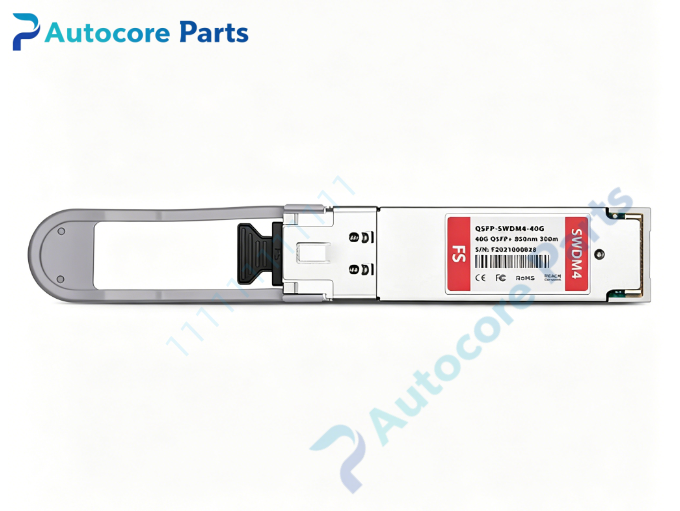

Extreme Networks 40GBASE-SR4 QSFP+ Optical Transceiver

Technical SpecificationsModel：40GBASE-SR4 (short name 40GBASE-SR) Brand：Extreme Networks Product Type：Hot-swappable QSFP+ optical transceiver

Interface: QSFP+, SFF-8436 MSA compliant Standard: IEEE 802.3ba 40GBASE-SR4 Data Rate: 41.25Gbps aggregate (4×10.3125Gbps NRZ lanes) Wavelength: 850nm Fiber: 50/125μm laser-optimized multimode fiber Reach:

• OM3: 100m

• OM4:150m Connector: MPO/MTP (12-fiber female) Monitoring: DOM digital optical monitoring (temperature, voltage, Tx/Rx optical power) Power consumption: Max 1.5W Hot swap: Yes Laser Class: Class 1 Operating temperature：0℃ ~ +70℃

System compatibility

40GBASE-SR4 QSFP+ modules work on Extreme hardware with QSFP+ ports: Summit X670V, SLX9850, SLX9000 series. EEPROM pre-programmed for Extreme device recognition. It supports breakout function, can split 40G port into four independent 10GBASE-SR ports to connect SFP+ 10G SR transceivers via MPO-to-LC breakout fiber.

Function

40GBASE-SR4 is parallel multimode fiber transceiver for short-reach 40G data center interconnection. It uses four transmit and four receive fiber lanes simultaneously to carry total 40G bandwidth. The breakout capability allows one QSFP+ port to connect four 10G servers/downstream switches, saving port resources. Ideal for rack-to-rack short links inside data center.

Installation

Insert QSFP+ module into QSFP+ port until latch locks. Connect MPO/MTP 12-fiber multimode ribbon cable. Verify module recognition and link status via ExtremeXOS / SLX-OS CLI. Enable breakout mode if 4×10G ports are required. Keep fiber end faces clean, maintain minimum fiber bend radius.

InterfaceQSFP+ gold finger connector, MPO/MTP multi-fiber optical port, status LED indicators for Extreme Networks 40GBASE-SR4.

FeatureOriginal Extreme 40GBASE-SR4 QSFP+ parallel multimode transceiver,850nm,100m OM3 /150m OM4,support 4×10G breakout,DOM real-time monitoring,hot-swappable,low power consumption. This spare is used for data center short-distance 40G fiber interconnection and 10G port expansion via breakout cable.

DiagnosticModule undetected: Re-seat QSFP+ module, verify host switch firmware compatibility. Link down: Check MPO fiber polarity, clean end face, confirm OM3/OM4 multimode fiber. Breakout configuration failure: Enable breakout mode on port, use qualified MPO-LC breakout ribbon cable. Low optical power: Inspect fiber attenuation, dirty connector or excessive bending. DOM alarm: Check module temperature and supply voltage.

Product Brief40GBASE-SR4 (40GBASE-SR) is Extreme Networks QSFP+ parallel multimode optical transceiver for short-reach 40G Ethernet,support 4×10G breakout,classic spare for data center intra-rack high speed fiber links.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
