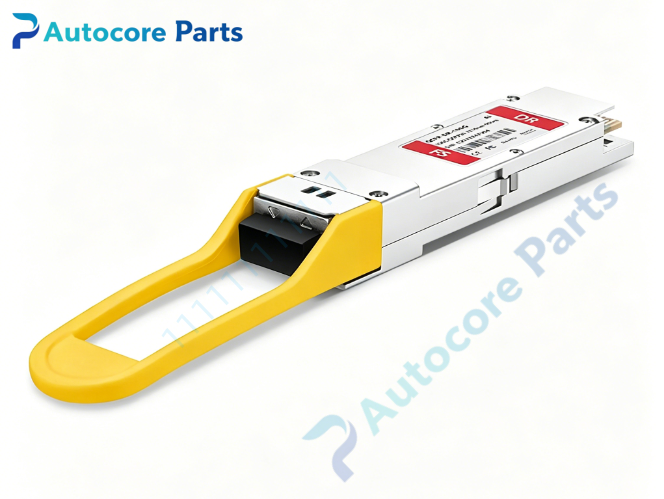

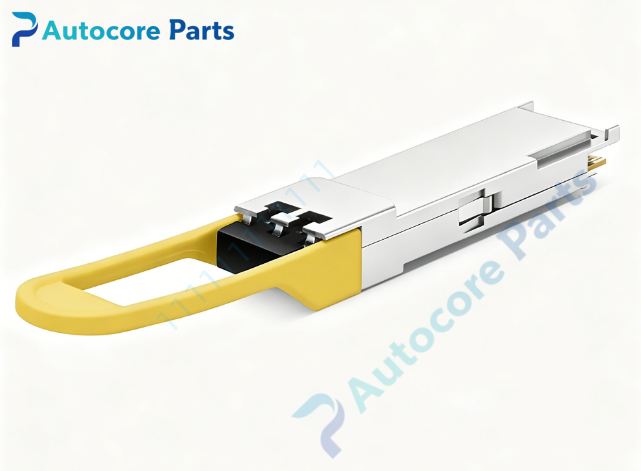

Extreme Networks 100G-DR-QSFP50 Optical Transceiver Module

Technical SpecificationsModel：100G-DR-QSFP50 Brand：Extreme Networks Product Type：Hot-swappable QSFP28 optical transceiver

Interface: QSFP28, SFF-8636 MSA compliant Standard: IEEE 802.3cd 100GBASE-DR Data Rate: 103.125Gbps (4 × 25.78125Gbps NRZ electrical, PAM4 optical single lane) Wavelength: 1310nm Fiber: G.652 single-mode fiber (SMF) Max Reach: 500m Connector: Duplex LC/UPC Monitoring: DOM digital optical monitoring, real-time temp, voltage, Tx/Rx power Power consumption: Max 3.5W Hot swap: Yes Laser Class: Class 1 Operating temperature：0℃ ~ +70℃

System compatibility

100G-DR-QSFP50 works on Extreme switches and routers with QSFP28 ports, such as SLX9850, X870, X670V series. EEPROM pre-programmed for Extreme device recognition. It can interoperate with 400G DR4 modules via fiber breakout links for data center spine-leaf interconnection. Requires host side FEC enabled for stable link.

Function

100G-DR-QSFP50 is single-lambda 100G QSFP28 fiber transceiver for medium short-reach data center interconnection. It converts 4 lanes of 25G NRZ electrical signal into one 100G PAM4 optical stream over a pair of single-mode fibers. Compared with traditional 4-lane 100G LR4/ER4, single lambda design reduces cost and simplifies fiber management, widely used for leaf to spine connections within data center buildings.

Installation

Insert the QSFP28 module into the QSFP28 port until latch locks. Connect duplex LC single-mode fiber patch cord. Enable FEC on the switch port. Verify optical power and link status via ExtremeXOS/SLX-OS CLI. Do not touch laser aperture, keep fiber end faces clean.

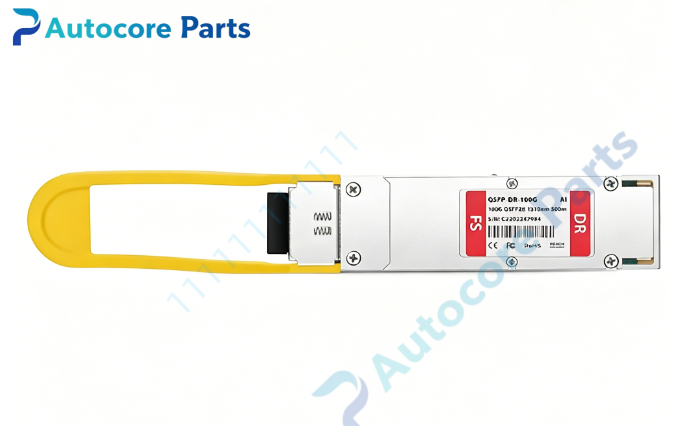

InterfaceQSFP28 gold finger connector, duplex LC optical port, status indicator LED for Extreme Networks 100G-DR-QSFP50.

FeatureOriginal Extreme 100G-DR-QSFP50 QSFP28 100GBASE-DR optical transceiver,1310nm single lambda,500m SMF,duplex LC,DOM monitoring,hot-swappable,host FEC required,suitable for leaf-spine data center medium short reach interconnection. This spare is used for data center 100G fiber link replacement.

DiagnosticModule undetected: Re-seat QSFP28 module, check host firmware compatibility. Link down: Confirm G.652 single-mode fiber, clean LC end faces, check fiber polarity, enable host FEC. Low optical power: Inspect fiber attenuation, dirty connectors or excessive bending. DOM alarm: Check module operating temperature and supply voltage.

Product Brief100G-DR-QSFP50 is Extreme Networks QSFP28 100GBASE-DR single-lambda optical transceiver supporting up to 500m on single-mode fiber,classic spare for cloud and HPC data center leaf-spine 100G fiber interconnection.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
