Extreme Networks MGBIC-02 SFP Transceiver Module

Technical SpecificationsModel：MGBIC-02 Brand：Extreme Networks Product Type：Hot-swappable SFP (mini-GBIC) copper transceiver

Interface: RJ45 copper port Standard: IEEE 802.3ab 1000BASE-T Data rate: 1000Mbps auto-negotiation (10/100/1000Mbps) Max distance: 100m with Cat5 / Cat5e twisted pair cable Connector: RJ45 Power consumption: Low power design Hot swap: Support hot insertion and removal without powering down host device Operating temperature：0℃ ~ +70℃

System compatibility

MGBIC-02 is Extreme original copper SFP mini-GBIC transceiver. Compatible with Extreme series switches equipped with SFP slots, including 4220,5320,5420,ERS3600,A-series,D-series,S-series platforms. Note: This copper SFP cannot work with MACsec enabled on SFP+ ports.

Function

MGBIC-02 converts SFP fiber slot into 1000BASE-T copper RJ45 port. It enables users to use regular Cat5 copper network cable on SFP port, without deploying optical fiber. Auto negotiation supports 10/100/1000 speed. Hot pluggable for flexible port expansion.

Installation

Power on the switch, insert MGBIC-02 module into empty SFP slot until it clicks. Plug Cat5e RJ45 cable into module RJ45 port. Verify port link status via switch CLI or web management. Use Cat5e cable and keep cable length within 100 meters.

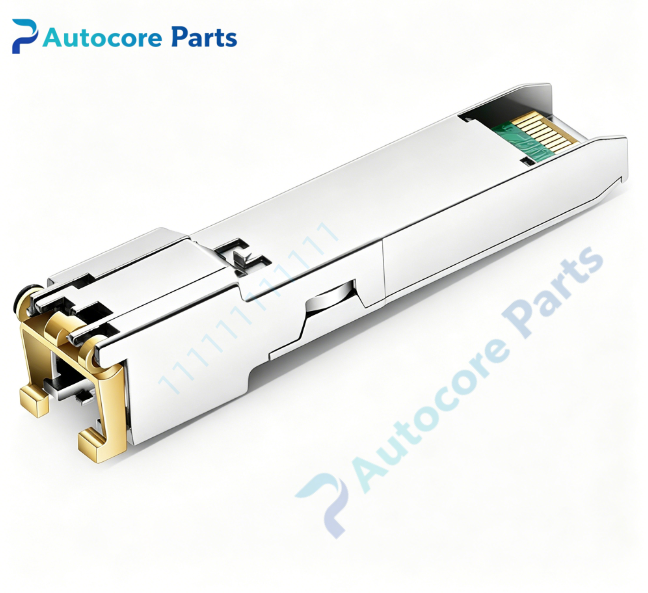

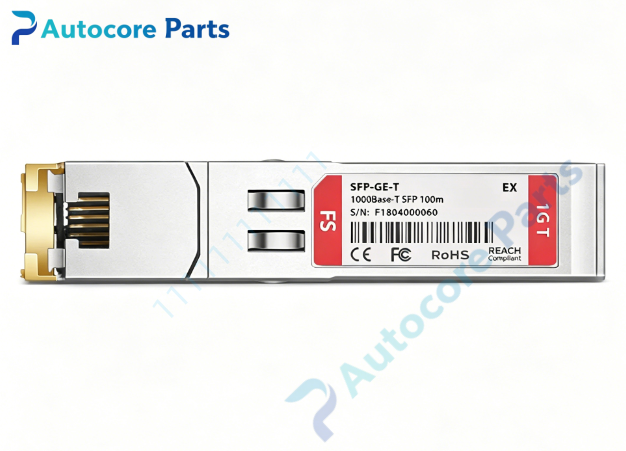

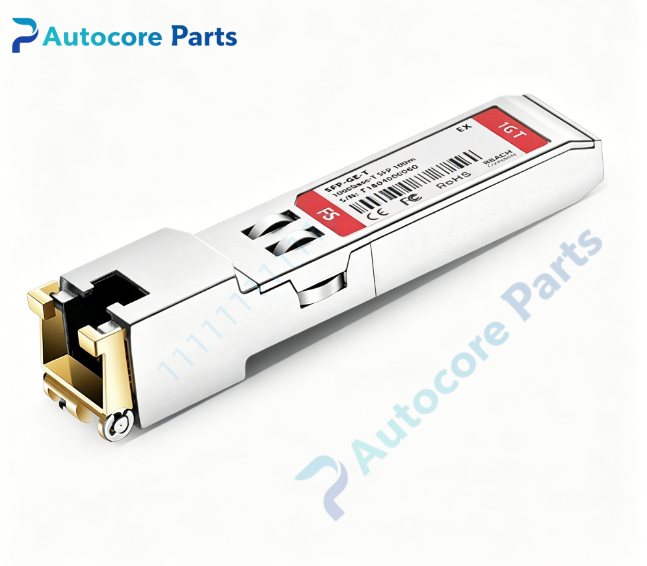

InterfaceSFP gold finger edge connector, RJ45 copper port for Extreme Networks MGBIC-02.

FeatureOriginal Extreme MGBIC-02 copper SFP transceiver,1000BASE-T,100m Cat5 cable reach,hot-swappable mini GBIC,auto speed negotiation. This spare is used to convert SFP slot to gigabit copper RJ45 port on Extreme switches.

DiagnosticModule undetected: Confirm host SFP port supports MGBIC-02, re-seat transceiver, check module compatibility. Link down: Check Cat5e cable quality and length, verify auto-negotiation mode. No gigabit negotiation: Replace poor copper cable, reduce cable length. MACsec failure: MGBIC-02 does not support MACsec on SFP+ port, disable MACsec.

Product BriefMGBIC-02 is Extreme Networks 1000BASE-T copper SFP mini-GBIC transceiver, converting switch SFP slot to gigabit RJ45 copper port,classic spare for enterprise switch port expansion.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
