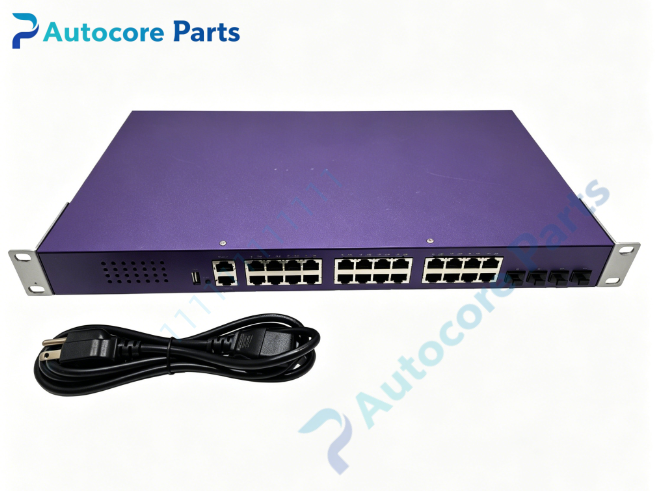

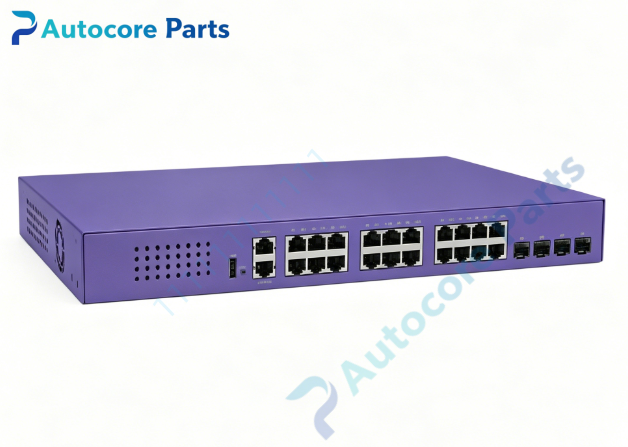

Extreme Networks X435-24P-4S Ethernet Switch

Technical SpecificationsModel：X435-24P-4S Brand：Extreme Networks Product Type：1RU Rack Mount Value Edge Enterprise Switch

Port Configuration: 24 × 10/100/1000BASE-T RJ45 PoE+ ports (802.3at, max 30W per port) 4 × 1G/2.5G SFP empty uplink slots 1 × 10/100/1000BASE-T out-of-band management port 1 × RJ45 serial console port 1 × USB-A port for firmware/configuration storage

Switch Performance: Switching bandwidth 56Gbps, forwarding rate 41.6Mpps Software: ExtremeXOS with Value Edge license, support Layer2 switching and static routing Stacking: Non-stackable standalone design Power supply: Built-in AC PSU, input 100-240Vac,50-60Hz,6A max, integrated PoE power budget Operating temperature：0℃ ~ +45℃ Dimension: 44mm(H) ×440mm(W) ×240mm(D) Weight: 3.3kg

System compatibility

X435-24P-4S belongs to Extreme X435 value edge switch family. SFP uplink slots compatible with Extreme 1G SFP transceivers including SX, LX, BiDi and MGBIC-02 copper SFP modules. Managed via CLI, SSH, HTTPS and ExtremeCloud IQ. Designed for branch office, small campus, retail site PoE access for IP cameras and wireless AP.

Function

X435-24P-4S is cost-effective standalone gigabit PoE+ edge switch. 24 PoE+ RJ45 ports deliver power to IP phones, surveillance cameras and Wi-Fi access points. Four SFP slots provide fiber uplink for long-distance connection. Supports static routing, VLAN, QoS, IGMP snooping, port security, storm control and network monitoring. Simple deployment and management for distributed branch network.

Installation

Mount the switch into standard 19-inch 1RU rack. Connect protective earthing and AC power cord. Connect Cat5e/Cat6 copper cables to PoE powered endpoints. Insert SFP transceiver and fiber cable for uplink. Configure through console or ExtremeCloud IQ. Verify port negotiation and PoE power allocation after commissioning.

InterfaceGigabit PoE+ RJ45 port, SFP uplink slot, OOB management port, RJ45 serial console, USB-A port for Extreme Networks X435-24P-4S.

FeatureOriginal Extreme X435-24P-4S 1RU value edge PoE+ switch,24×Gigabit 30W PoE+ ports plus 4×1G/2.5G SFP uplink slots,runs ExtremeXOS,standalone non-stackable,built-in PoE power supply. This spare is designed for branch and retail site PoE edge network replacement.

DiagnosticDevice undetected: Check AC power input, power cord and ground connection. PoE port no power: Verify PD compatibility, check PoE configuration and total PoE power budget. RJ45 port link down: Inspect Cat5e/Cat6 cable quality and length, recheck auto-negotiation. SFP uplink port down: Confirm compatible SFP transceiver, fiber quality and polarity. High temperature warning: Check rack airflow and fan operation.

Product BriefX435-24P-4S is Extreme Networks standalone gigabit PoE+ edge switch with 24 802.3at PoE+ ports and four 1G/2.5G SFP uplink slots,classic spare part for branch office and retail wired PoE access network replacement.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
