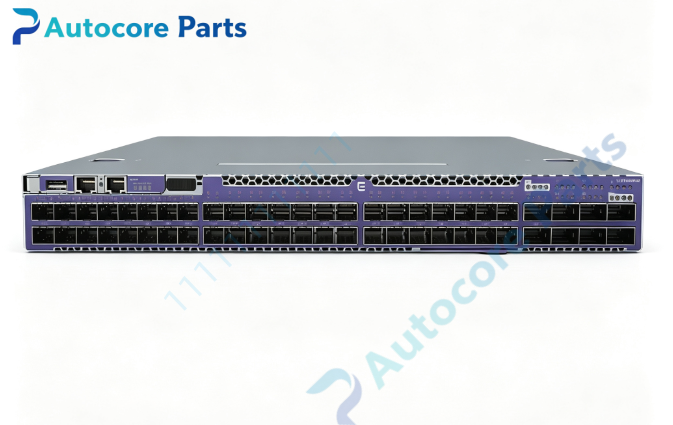

Extreme Networks SLX9150-48Y-8C-AC-R SLX 9150 High Density Leaf Ethernet Switch

Technical Specifications

Model：SLX9150-48Y-8C-AC-R Brand：Extreme Networks Product Type: 1U rack mount high-performance data center leaf switch (SLX9150 series)

Front Ports:

• 48 × 1G/10G/25G SFP28 multi-speed slots for downlink

• 8 × 40G/100G QSFP28 uplink slots, support breakout

• 1 × 10/100/1000BASE-T OOB management port

• USB Type-A port for firmware upload

• RJ45 serial console port

• LED indicators for port link, activity, power and fault alarm

Rear Panel Interfaces:

• Dual hot-swappable 750W AC PSU modules pre-installed

• 6 hot-swappable fan modules, back-to-front airflow

• BMC out-of-band lights-out management

• Equipment grounding terminal

Switching & Layer Features: Switch Fabric: 4 Tbps non-blocking full-duplex fabric Forwarding Rate: 1000 Mpps wire-speed forwarding MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing, BGP, EVPN, VXLAN Security: Measured boot, 802.1X, ACL, storm control QoS: Hardware L2-L4 classification, multiple priority queues OS: SLX-OS operating system Virtualization: VXLAN, EVPN IP fabric, VRF

Power & Mechanical: Power Supply: Dual hot-swappable 750W 100-240V AC power modules Cooling: 6 hot-swappable fan modules, back-to-front airflow Operating temperature：0℃ ~ +50℃ Dimension: Standard 19-inch 1U rack form factor Weight: Approx 10.8 kg Mounting: 4-post rack mounting kit included

System compatibility

SLX9150-48Y-8C-AC-R belongs to Extreme SLX9150 data center leaf switch family. Compatible with Extreme SFP28, QSFP28 transceivers, DAC and AOC cables. Supports leaf-spine IP fabric, EVPN/VXLAN architecture, works together with SLX9540, SLX9850 spine switches. Widely used for cloud data center server access and enterprise core network spare replacement.

Function

SLX9150-48Y-8C-AC-R is high-density 1U leaf switch manufactured by Extreme Networks. It provides 48×25G SFP28 downlink ports for servers and storage endpoints, and 8×100G QSFP28 high-speed uplink ports connecting to spine switches. SLX-OS natively supports EVPN and VXLAN for modern IP fabric deployment. Built-in BMC enables remote lights-out management. Dual redundant AC power and six hot-swappable fans eliminate single point of failure for 24/7 data center operation. Back-to-front airflow design suits specific rack hot aisle/cold aisle layout. Widely deployed for enterprise and service provider data center leaf layer spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch 4-post rack. Insert SFP28/QSFP28 transceivers and patch cables. Connect AC power cords. Access console or BMC OOB port for initial SLX-OS configuration, fabric, VLAN, EVPN/VXLAN and ACL policy setup. Verify port link status and environmental sensor readings after boot-up.

Interface

48×SFP28 slots,8×QSFP28 slots,OOB management port,USB Type-A,RJ45 console port,BMC management interface,dual AC PSU slots,hot-swap fan modules,system LED indicators for Extreme Networks SLX9150-48Y-8C-AC-R.

Feature

Original Extreme Networks SLX9150-48Y-8C-AC-R leaf switch,1U,48×25G SFP28 +8×100G QSFP28 uplink,dual 750W AC,back-to-front airflow,SLX-OS EVPN/VXLAN,BMC remote management. This spare unit is used for data center leaf layer high-density server access network maintenance and hardware replacement.

Diagnostic

Switch fails to boot: Check AC power input and PSU installation status. SFP28 port link down: Verify transceiver compatibility, optical power and fiber end face cleanliness. QSFP28 port breakout failure: Confirm SLX-OS license and correct port breakout configuration. Fabric EVPN route sync error: Match SLX-OS firmware version between leaf and spine. Temperature alarm: Inspect fan module status and rack air circulation.

Product BriefSLX9150-48Y-8C-AC-R is Extreme Networks SLX9150 series 1U data center leaf switch with 48×25G SFP28 and 8×100G QSFP28 ports, dual AC and back-to-front airflow, SLX-OS EVPN/VXLAN,classic spare for high density 25G server leaf fabric.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
