Extreme Networks Summit X450a-24t Gigabit Ethernet Switch

Technical SpecificationsModel：X450a-24t Brand：Extreme Networks Product Type：Rack mount Gigabit Ethernet Switch

Front Ports:

• 24 × 10/100/1000BASE-T auto-sensing RJ45 copper ports

• 1 × RJ45 serial console port for local management Switch Fabric: 128 Gbps Forwarding Rate: 95.2 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 16K MAC entries ACL: 2048 centralized ACL rules QoS: 8 hardware queues per port Rear Slot: One expansion slot for XGM2 dual 10G option card Power Supply: Built-in universal AC 100~240V, 50/60Hz Redundant Power: Support external EPS redundant power supply Software OS: ExtremeXOS, maximum supported version 15.3 Operating temperature：0℃ ~ +50℃ Mounting: 1U rack mount Status LED: Power, stack ID, per-port link/activity LED

System compatibility

Summit X450a-24t works with XGM2 series 10G uplink expansion modules. Supports SummitStack stacking for multiple switch clustering. Compatible with Extreme 1G SFP and 10G SFP+ transceivers installed on XGM2 card. Supports L2 switching and basic Layer3 routing for campus and enterprise network.

Function

Summit X450a-24t is a 1U rack-mount enterprise gigabit switch for access or aggregation layer. It delivers 24 auto-negotiation gigabit copper ports for PC, server and wireless AP access. The rear expansion slot can add dual 10G SFP+ uplink ports to connect to core switches. It supports stacking, advanced QoS, VLAN segmentation and ACL security filtering, widely used in campus, office building and small data center networks.

Installation

Mount the switch into standard 19-inch equipment rack. Connect AC power cable. Use console cable for initial configuration. Plug RJ45 network cables into front copper ports. Install XGM2 uplink card on rear slot after power-off if 10G uplink is needed. Configure stacking parameters via ExtremeXOS CLI when multiple switches are stacked.

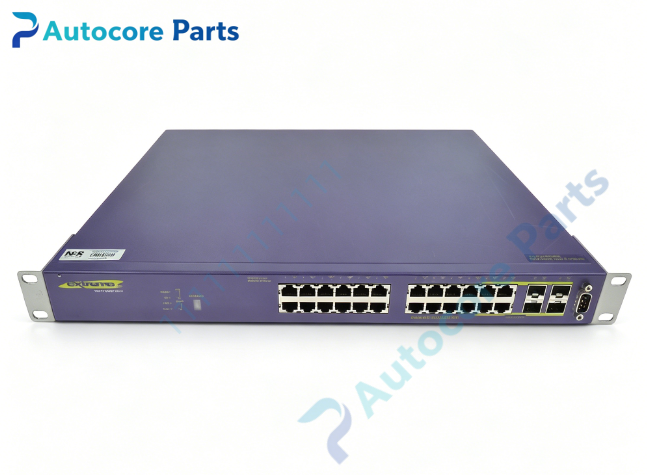

Interface24pcs RJ45 gigabit ports, RJ45 console port, rear expansion slot, power inlet and status LED indicators for Extreme Networks Summit X450a-24t.

FeatureOriginal Extreme Networks Summit X450a-24t 24-port gigabit copper switch,1U rackmount,optional dual 10G uplink via XGM2 card,SummitStack stacking,L2/L3 forwarding,jumbo frame,QoS and ACL security control. This spare is used for enterprise campus access and aggregation network replacement and upgrade.

DiagnosticSwitch no power: Check AC input power cable and voltage, inspect internal PSU. Port link down: Verify cable quality, auto-negotiation setting and peer device status. Expansion card undetected: Power off, re-seat XGM2 module, check ExtremeXOS firmware compatibility. Stacking failure: Confirm stacking cable and stacking configuration, check stack member ID. High CPU alarm: Review ACL rules and broadcast storm control configuration.

Product BriefSummit X450a-24t is Extreme Networks 24-port gigabit RJ45 stackable switch with optional 10G uplink,classic spare for enterprise access and aggregation layer network deployment.
