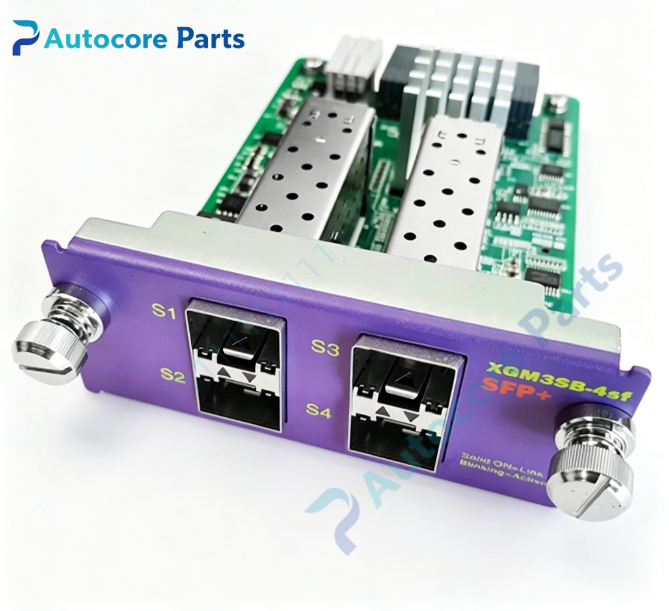

Extreme Networks XGM3SB-4SF Expansion Option Card

Technical SpecificationsModel：XGM3SB-4SF Brand：Extreme Networks Product Type：Switch / Router rear panel expansion option card

Port Quantity: 4 × SFP+ ports Data Rate: 10.3125Gbps per port, backward compatible for 1G SFP Supported Media: SFP+ optical transceivers, SFP+ passive DAC twinax cable Special Feature: SyncE Synchronous Ethernet timing support Installation Slot: Slot B on rear panel of Summit X460 series / E4G-400 router Hot swap: Not supported, power off device before installation/removal Software: Minimum ExtremeXOS 15.1.1, up to 16.x Operating temperature：0℃ ~ +50℃ Status LED: Per-port link/activity indicator Captive mounting screws for chassis fixation

System compatibility

XGM3SB-4SF is dedicated expansion card for Extreme Summit X460 series switches and E4G-400 router. Summit X460 models include X460-24t, X460-24p, X460-48t, X460-48p. It installs in rear Slot B only. Supports SummitStack-V virtual stacking function. Compatible with Extreme original SFP+ transceivers and DAC cables. Built-in SyncE hardware provides telecom-grade clock synchronization for carrier and timing network.

Function

XGM3SB-4SF adds four independent 10G SFP+ high-speed ports to Summit X460 or E4G-400 router. Ports can be used as regular 10G uplink to core network, or configured as SummitStack-V stacking ports for equipment cluster. Integrated SyncE circuit enables clock transmission over 10G Ethernet links. It supports optical fiber and copper DAC twinax connections, suitable for enterprise aggregation, carrier timing network and data center uplink expansion.

Installation

Power off the Summit X460 / E4G-400 device and disconnect power cable. Wear ESD anti-static wrist strap. Remove blank slot panel, align XGM3SB-4SF card and slide fully into Slot B, tighten captive screws. Power on device, verify port detection and SyncE clock status via ExtremeXOS CLI.

InterfaceFour SFP+ gold finger slots, per-port status LED, chassis backplane connector, captive screw fixing points for Extreme Networks XGM3SB-4SF.

FeatureOriginal Extreme Networks XGM3SB-4SF 4-port 10G SFP+ expansion option card with SyncE timing for Summit X460 and E4G-400,support 10G/1G dual speed,work with SFP+ optics and DAC cable,available for uplink or SummitStack-V stacking. This spare is used for high-speed port expansion and timing network hardware replacement.

DiagnosticCard undetected: Confirm full insertion and tight captive screws, reboot device, verify ExtremeXOS version meets minimum requirement. Port no link: Check SFP+ module/DAC recognition, inspect cable quality and fiber end face. Stacking fail: Confirm ports are set to SummitStack-V mode, check stacking cable and peer device configuration. SyncE clock alarm: Verify clock source configuration, check timing signal quality on peer network device. Port flapping: Verify transceiver compatibility, check fiber attenuation or DAC cable damage.

Product BriefXGM3SB-4SF is Extreme Networks 4-port 10G SFP+ rear expansion card with SyncE support for Summit X460 and E4G-400,support uplink and SummitStack-V stacking,classic spare for enterprise aggregation and carrier timing network upgrade & replacement.
