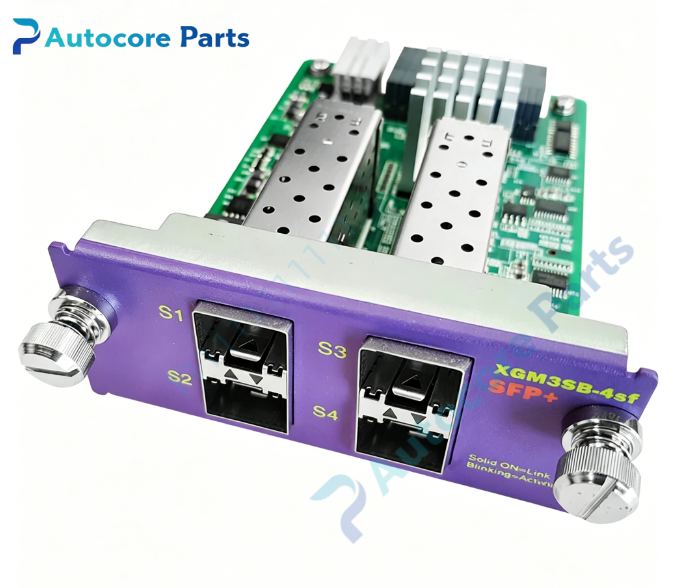

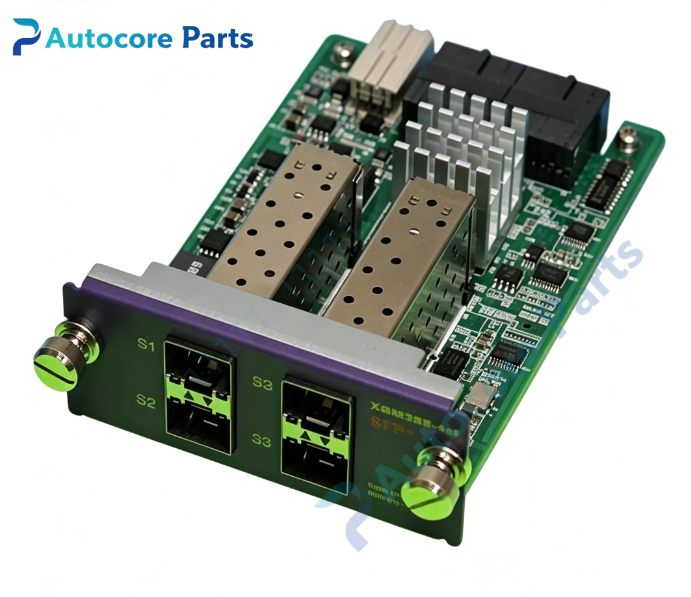

Extreme Networks XGM3SB-2sf-4 Expansion Option Card

Technical SpecificationsModel：XGM3SB-2sf-4 Brand：Extreme Networks Product Type：Switch rear panel expansion option card

Port Quantity: 4 × SFP+ ports Data Rate: 10.3125Gbps per port, backward compatible for 1G SFP Supported Media: SFP+ optical transceivers, SFP+ passive DAC twinax cable Special Feature: SyncE Synchronous Ethernet timing support Installation Slot: Rear expansion slot of Summit X460 series Hot swap: Not supported, power off switch before installation/removal Software: Minimum ExtremeXOS 15.1.1, up to 16.x Operating temperature：0℃ ~ +50℃ Status LED: Per-port link/activity indicator Captive mounting screws for chassis fixation

System compatibility

XGM3SB-2sf-4 is dedicated expansion card for Extreme Summit X460 series switches, including X460-24t, X460-24p, X460-48t, X460-48p. It installs on rear panel expansion bay. Supports SummitStack-V virtual stacking function. Compatible with Extreme original SFP+ transceivers and DAC cables. The SyncE function supports telecom grade clock synchronization for carrier and campus timing network.

Function

XGM3SB-2sf-4 adds four independent 10G SFP+ high-speed ports to Summit X460 switch. Ports can be used as regular 10G uplink to core switch, or configured as SummitStack-V stacking ports for switch cluster. Built-in SyncE hardware provides synchronous clock transmission over 10G Ethernet links. It supports both optical fiber and copper DAC twinax connections, suitable for campus aggregation, enterprise core and carrier timing network uplink expansion.

Installation

Power off the Summit X460 switch and disconnect power cable. Wear ESD anti-static wrist strap. Loosen the blank slot panel screws and remove blank plate. Align XGM3SB-2sf-4 card and slide fully into rear slot, tighten captive screws. Power on switch and reboot, then verify port detection and SyncE clock status via ExtremeXOS CLI.

InterfaceFour SFP+ gold finger slots, per-port status LED, chassis backplane connector, captive screw fixing points for Extreme Networks XGM3SB-2sf-4.

FeatureOriginal Extreme Networks XGM3SB-2sf-4 4-port 10G SFP+ expansion option card with SyncE timing for Summit X460,support 10G/1G dual speed,work with SFP+ optics and DAC cable,available for uplink or SummitStack-V stacking. This spare is used for Summit X460 switch high-speed port expansion and timing network hardware replacement.

DiagnosticCard undetected: Confirm full insertion and tight captive screws, reboot switch, verify ExtremeXOS version meets minimum requirement. Port no link: Check SFP+ module/DAC recognition, inspect cable quality and fiber end face. Stacking fail: Confirm ports are set to SummitStack-V mode, check stacking cable and peer switch configuration. SyncE clock alarm: Verify clock source configuration, check timing signal quality on peer network device. Port flapping: Verify transceiver compatibility, check fiber attenuation or DAC cable damage.

Product BriefXGM3SB-2sf-4 is Extreme Networks 4-port 10G SFP+ rear expansion card with SyncE support for Summit X460 switches,support uplink and SummitStack-V stacking,classic spare for enterprise aggregation and carrier timing network upgrade & replacement.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
