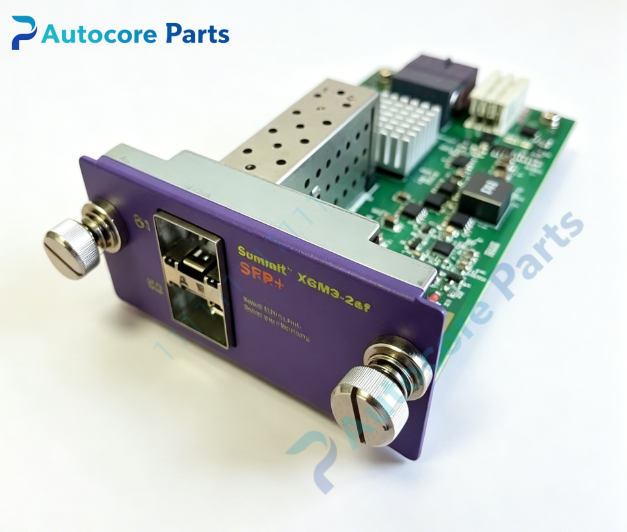

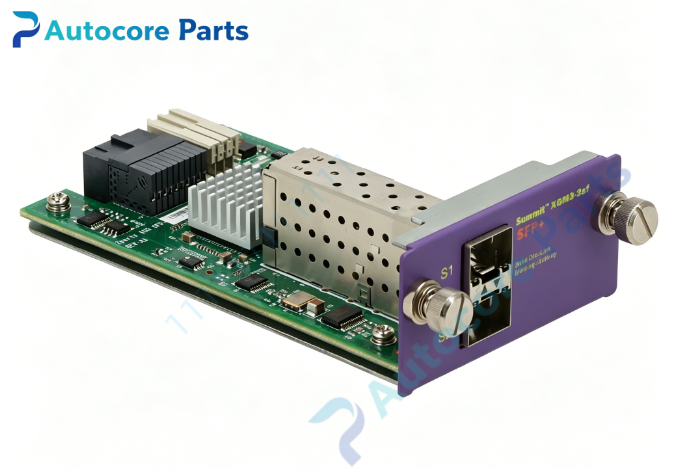

Extreme Networks XGM3-2SF Expansion Option Card

Technical SpecificationsModel：XGM3-2SF Brand：Extreme Networks Product Type：Switch rear panel expansion option card

Port Quantity: 2 × SFP+ ports Data Rate: 10.3125Gbps per port, backward compatible for 1G SFP Supported Media: SFP+ optical transceivers, SFP+ passive DAC twinax cable Installation Slot: Slot A on rear panel of Summit X460 series Hot swap: Not supported, power off switch before installation/removal Software: Minimum ExtremeXOS 12.5.1 up to 16.x Operating temperature：0℃ ~ +50℃ Status LED: Per-port link/activity indicator Captive mounting screws for chassis fixation

System compatibility

XGM3-2SF is dedicated expansion card for Extreme Summit X460 series switches, including X460-24t, X460-24p, X460-48t, X460-48p. It can be installed in rear Slot A only. Supports SummitStack-V virtual stacking function. Compatible with Extreme original SFP+ transceivers and DAC cables.

Function

XGM3-2SF adds two independent 10G SFP+ high-speed ports to Summit X460 switch. The ports can be used as regular 10G uplink to core switch, or configured as SummitStack-V stacking ports for switch cluster. It supports both optical fiber and copper DAC twinax connections, flexible for campus aggregation and enterprise network uplink expansion.

Installation

Power off the Summit X460 switch and disconnect power cable. Wear ESD anti-static wrist strap. Loosen the blank slot panel screws and remove blank plate. Align XGM3-2SF card and slide fully into slot A, tighten captive screws. Power on switch and reboot, then verify port detection via ExtremeXOS CLI.

InterfaceTwo SFP+ gold finger slots, per-port status LED, chassis backplane connector, captive screw fixing points for Extreme Networks XGM3-2SF.

FeatureOriginal Extreme Networks XGM3-2SF 2-port 10G SFP+ expansion option card for Summit X460,support 10G/1G dual speed,work with SFP+ optics and DAC cable,available for uplink or SummitStack-V stacking. This spare is used for Summit X460 switch high-speed port expansion and hardware replacement.

DiagnosticCard undetected: Confirm full insertion and tight captive screws, reboot switch, verify ExtremeXOS version meets minimum requirement. Port no link: Check SFP+ module/DAC recognition, inspect cable quality and fiber end face. Stacking fail: Confirm ports are set to SummitStack-V mode, check stacking cable and peer switch configuration. Port flapping: Verify transceiver compatibility, check fiber attenuation or DAC cable damage.

Product BriefXGM3-2SF is Extreme Networks 2-port 10G SFP+ rear expansion card for Summit X460 switches,support uplink and SummitStack-V stacking,classic spare for enterprise aggregation switch upgrade & replacement.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
