Extreme Networks Summit X450a-48tDC Gigabit Ethernet Switch

Technical SpecificationsModel：X450a-48tDC Brand：Extreme Networks Product Type：1U Rack Mount Gigabit Ethernet Switch

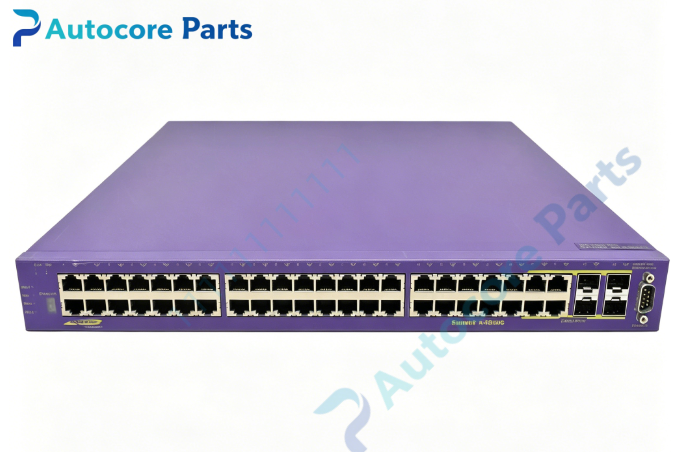

Front Ports:

• 44 × fixed 10/100/1000BASE-T auto-sensing RJ45 copper ports

• 4 × combo shared ports: 1000BASE-X SFP OR 10/100/1000BASE-T RJ45 copper

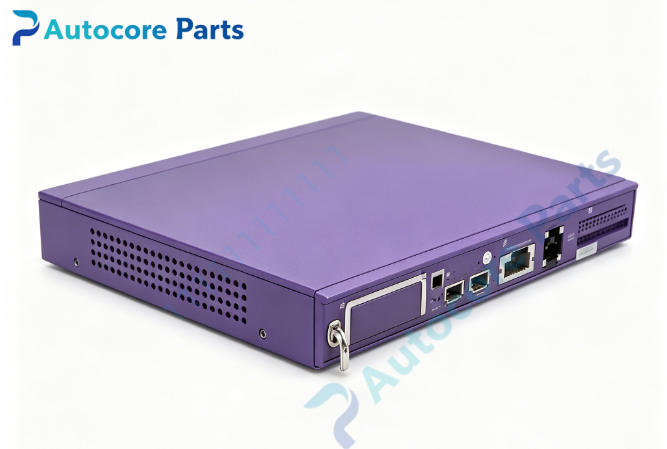

• 1 × RJ45 serial console port for local CLI management Rear Panel:

• 1 × out-of-band 10/100BASE-T management port

• 1 × expansion slot for XGM2 dual 10G SFP+ uplink module

Switch Fabric: 128 Gbps Forwarding Rate: 95.2 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 16K MAC entries ACL: 2048 centralized ACL rules QoS: 8 hardware queues per port Power Input: -36VDC ~ -72VDC (nominal -48V DC telecom power) Redundant Power: Support external EPS-150DC redundant power supply Software OS: ExtremeXOS, maximum supported firmware version 15.3 Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Weight: 8.0 kg Status LED: System power, fan, stack ID and per-port link/activity indicators

System compatibility

Summit X450a-48tDC works with XGM2 series dual 10G SFP+ uplink expansion cards. It supports SummitStack stacking for multi-switch cluster deployment. Compatible with Extreme original 1G SFP transceivers installed on combo SFP slots. Supports Layer2 switching and Layer3 IP routing, suitable for telecom equipment room and industrial sites with -48V DC power supply.

Function

Summit X450a-48tDC is a 1U rack-mounted DC-powered high-density gigabit switch. It provides 44 fixed RJ45 gigabit ports plus four combo ports for flexible copper or fiber access. The rear expansion slot can add dual 10G SFP+ uplink ports to connect core network. It supports stacking, advanced QoS, VLAN segmentation and ACL security filtering, widely used in telecom, campus aggregation and industrial network.

Installation

Mount the switch into standard 19-inch equipment rack. Connect -48V DC power cable. Use RJ45 console cable for initial configuration. Insert 1G SFP transceivers into combo SFP slots and connect fiber patch cords. Install XGM2 uplink card on rear slot after power-off if 10G uplink is required. Configure stacking parameters via ExtremeXOS CLI for multi-switch stack.

Interface44 fixed RJ45 gigabit ports,4 combo SFP/RJ45 ports,serial console port,out-of-band management port,rear XGM2 expansion slot,DC power inlet and status LED indicators for Extreme Networks X450a-48tDC.

FeatureOriginal Extreme Networks Summit X450a-48tDC 48-port gigabit switch,-48V DC telecom power,4 combo copper/fiber ports,optional dual 10G uplink via XGM2 card,SummitStack stacking,L2/L3 forwarding,jumbo frame,QoS and ACL security control. This spare is used for telecom and enterprise DC powered high-density aggregation network replacement and upgrade.

DiagnosticSwitch no power: Check -48V DC input wiring and voltage range, inspect internal DC PSU. Port link down: Verify SFP module compatibility, cable quality and peer device status. Expansion card undetected: Power off switch, re-seat XGM2 module, confirm ExtremeXOS firmware meets minimum requirement. Stacking failure: Check stacking cable, stack member ID and stacking configuration. High CPU alarm: Audit ACL policy and broadcast storm control settings.

Product BriefSummit X450a-48tDC is Extreme Networks 1U DC-powered 48-port gigabit stackable switch with combo ports and optional 10G uplink,classic spare for telecom and enterprise high-density access & aggregation network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
