Extreme Networks X450-G2-24P-GE Gigabit PoE+ Ethernet Switch

Technical SpecificationsModel：X450-G2-24P-GE Brand：Extreme Networks Product Type：1U Rack Mount Gigabit PoE+ Ethernet Switch

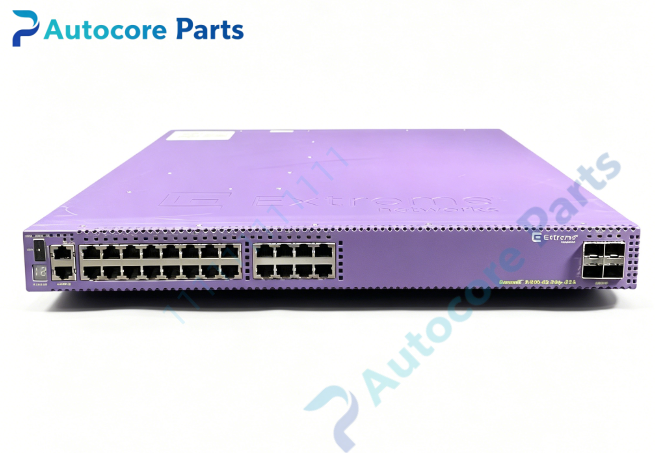

Front Ports:

• 24 × 10/100/1000BASE-T PoE+ RJ45 copper ports (IEEE802.3af/at)

• 4 × 1000BASE-X SFP fiber uplink ports

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100/1000BASE-T out-of-band management port

• 1 × USB 2.0 port for firmware upgrade & configuration backup

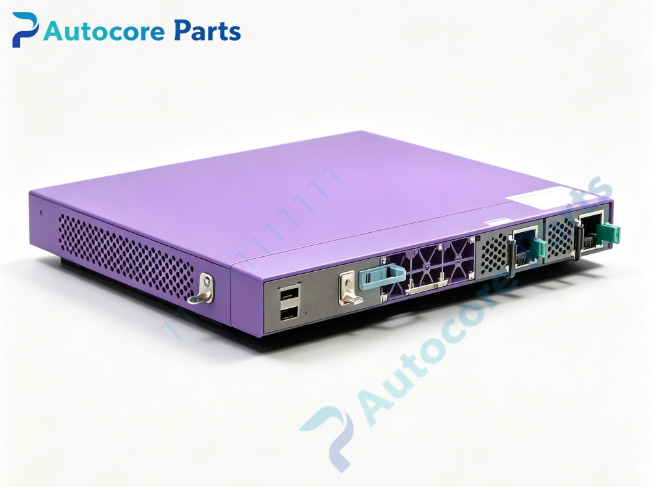

Rear Panel:

• 2 × dedicated QSFP 21Gbps SummitStack-V84 stacking ports

• Dual modular power supply slots,hot swappable

• Hot-swappable fan tray,front-to-back airflow

Switch Fabric: 128 Gbps Forwarding Rate: 95.2 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 32K MAC entries ACL: 4096 ingress /1024 egress ACL rules QoS: 8 hardware priority queues per port PoE Budget: Single PSU 715W; dual PSU up to 1440W full PoE+ load Software OS: ExtremeXOS 16.1.1 and newer Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Status LED: System power, fan, stack ID, per-port link/activity & PoE status indicators

System compatibility

X450-G2-24P-GE belongs to Extreme X450-G2 series. Supports SummitStack-V84 stacking, up to 8 switches in one stack. Compatible with Extreme original 1G SFP transceivers for front SFP uplink slots. Supports Layer 2 switching and Layer3 IP routing. Hot swap fan and redundant PSU support continuous operation for enterprise, campus and wireless access networks.

Function

X450-G2-24P-GE is a 1U rack-mount enterprise PoE+ gigabit access switch. 24 PoE+ ports supply power and data to wireless AP, IP camera and VoIP phone. Four 1G SFP uplink ports connect to aggregation/core switches via fiber. Built-in rear QSFP stacking ports build high-performance switch cluster. It supports advanced QoS, VLAN segmentation, ACL security filtering and Fabric Attach automated device access, widely deployed for campus wireless, office IP monitoring and enterprise access network.

Installation

Mount the switch into standard 19-inch equipment rack. Install PSU and fan tray. Connect AC power cable. Use console cable for initial configuration. Insert 1G SFP transceivers into front SFP slots and connect fiber patch cords. Use QSFP stacking cables for multi-unit stack. Configure stacking and PoE power management via ExtremeXOS CLI.

Interface24 PoE+ RJ45 gigabit ports,4 SFP 1G uplink slots,serial console port,out-of-band management port,USB port,rear QSFP stacking ports,dual PSU bays,fan tray and status LED indicators for Extreme Networks X450-G2-24P-GE.

FeatureOriginal Extreme Networks X450-G2-24P-GE 24-port PoE+ gigabit switch,4×1G SFP uplink,dedicated rear 21G stacking ports,hot-swappable power supply and fan tray,L2/L3 forwarding,jumbo frame,PoE+ power management,ACL and QoS policy control. This spare is used for enterprise wireless access and campus network replacement & upgrade.

DiagnosticSwitch no power: Check AC input power cable and voltage, inspect PSU seating and status. PoE port no power: Verify PoE budget, check power priority configuration and cable quality. Port link down: Confirm SFP module compatibility, fiber/RJ45 cable quality and peer device status. Stacking failure: Check QSFP stacking cable, stack member ID and ExtremeXOS firmware version consistency. High temperature alarm: Inspect fan operation, dust buildup and cabinet airflow.

Product BriefX450-G2-24P-GE is Extreme Networks 24-port PoE+ gigabit switch with 4 SFP uplink and dedicated stacking ports,classic spare for enterprise wireless and IP camera access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
