Extreme Networks VIM2-10G4X Versatile Interface Module

Technical SpecificationsModel：VIM2-10G4X Brand：Extreme Networks Product Type：Switch rear versatile interface expansion module

Port Quantity: 4 × SFP+ ports Data Rate: 10.3125Gbps per port, backward compatible for 1G SFP Supported Media: SFP+ optical transceivers, SFP+ passive DAC twinax cable Installation Slot: Rear VIM bay of Summit X480 series Hot swap: Not supported, power off switch before installation/removal Software OS: Minimum ExtremeXOS 16.2 Operating temperature：0℃ ~ +50℃ Status LED: Per-port link/activity indicator Captive mounting screws for chassis fixation

System compatibility

VIM2-10G4X is dedicated VIM expansion card for Extreme Summit X480 series switches. It installs in rear VIM bay. Supports SummitStack-V virtual stacking function. Compatible with Extreme original SFP+ transceivers and DAC cables. Supports Layer2 switching and Layer3 IP routing for data center and campus aggregation network.

Function

VIM2-10G4X adds four independent 10G SFP+ high-speed ports to Summit X480 switch. Ports can be used as regular 10G uplink to core network, or configured as SummitStack-V stacking ports for switch cluster. It supports optical fiber and copper DAC twinax connections, suitable for data center leaf-spine uplink and enterprise aggregation network expansion.

Installation

Power off the Summit X480 switch and disconnect power cable. Wear ESD anti-static wrist strap. Loosen the blank slot panel screws and remove blank plate. Align VIM2-10G4X card and slide fully into rear VIM bay, tighten captive screws. Power on switch and reboot, then verify port detection via ExtremeXOS CLI.

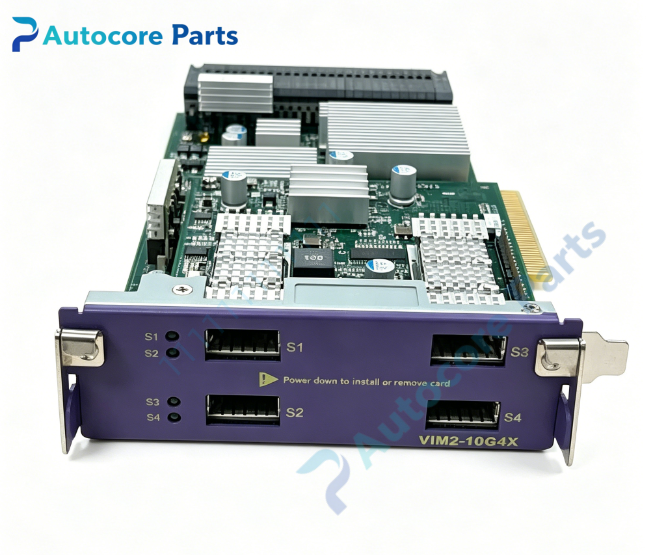

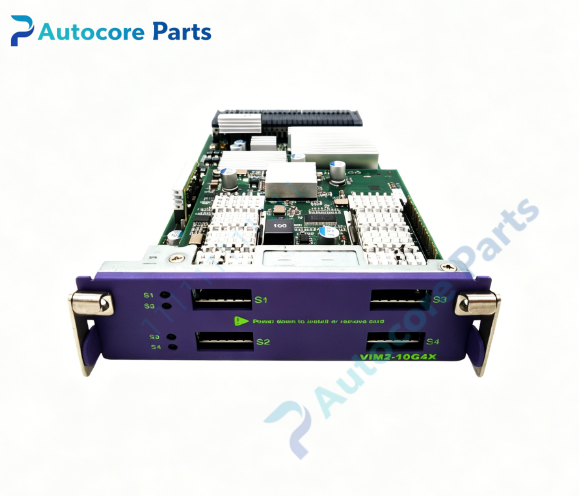

InterfaceFour SFP+ gold finger slots, per-port status LED, chassis backplane connector, captive screw fixing points for Extreme Networks VIM2-10G4X.

FeatureOriginal Extreme Networks VIM2-10G4X 4-port 10G SFP+ versatile interface module for Summit X480,support 10G/1G dual speed,work with SFP+ optics and DAC cable,available for uplink or SummitStack-V stacking. This spare is used for Summit X480 switch high-speed port expansion and hardware replacement.

DiagnosticCard undetected: Confirm full insertion and tight captive screws, reboot switch, verify ExtremeXOS version meets minimum requirement. Port no link: Check SFP+ module/DAC recognition, inspect cable quality and fiber end face. Stacking fail: Confirm ports are set to SummitStack-V mode, check stacking cable and peer switch configuration. Port flapping: Verify transceiver compatibility, check fiber attenuation or DAC cable damage.

Product BriefVIM2-10G4X is Extreme Networks 4-port 10G SFP+ rear VIM expansion card for Summit X480 switches,support uplink and SummitStack-V stacking,classic spare for data center and enterprise aggregation network upgrade & replacement.
