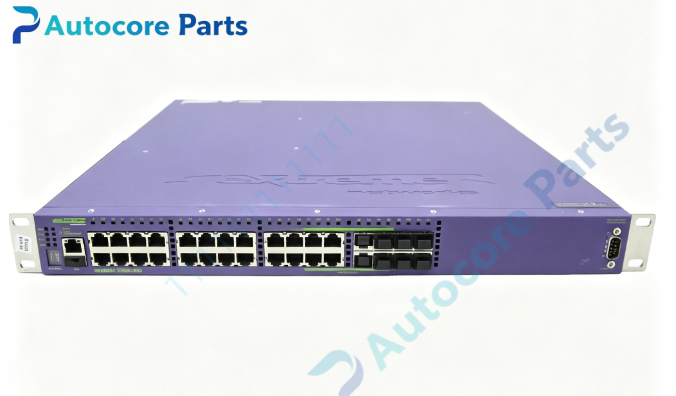

Extreme Networks Summit X460-24p Gigabit PoE Stackable Managed Switch

Technical SpecificationsModel:X460-24p Brand:Extreme Networks Product Type:1U rackmount stackable Layer2/Layer3 PoE managed switch Ports:24 ×10/100/1000BASE-T PoE+ RJ45 ports,8 ×1000BASE-X SFP slots (4 combo shared ports) PoE standard:IEEE 802.3at PoE+, up to 30W per port, total PoE budget 380W(1PSU) /760W(dual PSU) Switching capacity:176 Gbps Forwarding rate:130.9 Mpps MAC address table:32000 entries Jumbo frame:9216 bytes Max stacking:up to 8 units stacked OS:ExtremeXOS Management interfaces:Serial console port,10/100/1000 out-of-band management port Expansion:Rear slot for stacking module or 10G uplink option card Power & fan:Hot-swappable power supply and fan tray Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:5.5 kg

System compatibilityX460-24p belongs to Extreme Networks Summit X460 series. Compatible with Extreme validated 1G SFP transceivers SX/LX. Up to 8 X460 switches can be stacked into one logical switch via dedicated stacking module. The rear expansion slot accepts optional 10G uplink card for high-speed uplink. Widely used for enterprise wiring closet PoE access for wireless APs,IP phones and IP cameras.

FunctionX460-24p is high-performance stackable multi-layer gigabit PoE switch. It delivers PoE+ power to powered network endpoints. It supports static & dynamic routing,VLAN segmentation,STP/RSTP/MSTP,LACP link aggregation,access control lists,QoS,IGMP snooping,port mirroring,802.1X authentication and RADIUS/TACACS+ security. Four combo ports can choose copper or fiber. It monitors port link state,PoE power consumption,system temperature,power and fan health, and sends hardware fault alarms. Used for enterprise edge access and small aggregation layer networking.

InstallationMount the switch on standard 19-inch 1U rack. Install hot-swappable PSU and fan tray. Connect AC power. Install SFP transceivers and fiber cables if fiber uplink required. Connect Cat5e/Cat6 cables to PoE RJ45 ports. Connect console port for ExtremeXOS configuration. Verify boot,port link and PoE function before commissioning.

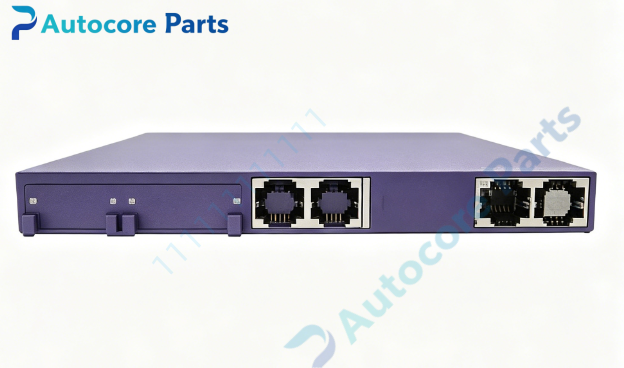

Interface24×1G PoE RJ45 ports,8×1G SFP slots(4 combo),serial console port,out-of-band management port,system status LEDs,reset button,rear expansion slot,AC power inlet,ground terminal,rack mounting ears for Extreme Networks Summit X460-24p.

FeatureOriginal Extreme Networks Summit X460 1U rackmount 24-port gigabit PoE+ stackable Layer3 switch,shared SFP fiber combo ports,hot-swappable PSU/fan,high PoE power budget,flexible stacking/10G uplink expansion,ExtremeXOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise wiring closet high-density PoE wired access deployment.

DiagnosticSwitch fails to boot: check AC power input and power module status. PoE port no power: verify PD detection,PoE budget and port admin status. Copper port link down: inspect Cat5e/Cat6 cable quality and auto-negotiation settings. SFP module not detected: confirm Extreme validated SFP and proper insertion. Stacking failure: verify matching ExtremeXOS firmware and stacking cable integrity. Over-temperature alarm: check fan tray operation and rack airflow,remove dust buildup.

Product BriefX460-24p is Extreme Networks Summit X460 1U rackmount 24-port gigabit PoE+ stackable Layer3 managed switch with 8×1G SFP fiber slots and rear uplink/stacking expansion slot,classic spare part for enterprise edge PoE access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
