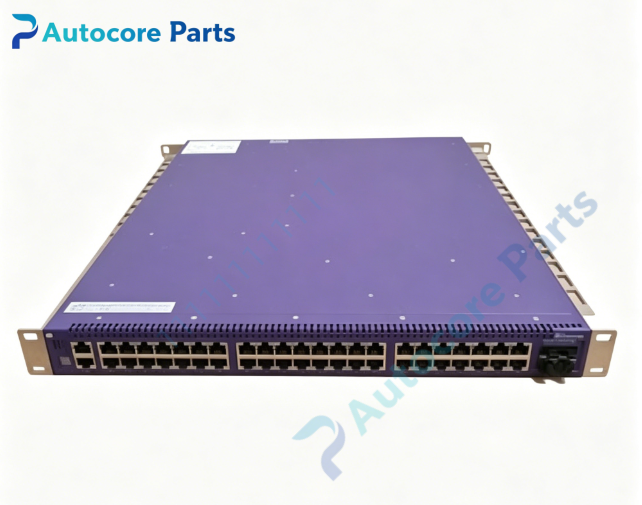

Extreme Networks Summit X670V-48T Ethernet Switch

Technical SpecificationsModel：X670V-48T Brand：Extreme Networks Product Type：1RU Rack Mount Data Center Top-of-Rack Enterprise Switch

Port Configuration: 48 × 100/1000/10000BASE-T RJ45 copper ports, auto-negotiation, non-PoE Rear VIM slot for optional VIM4-40G4X module: 4×40G QSFP+ uplink ports 1 × RJ45 serial console port 1 × USB-A port for firmware/configuration storage

Switch Performance: Switching bandwidth 960Gbps, forwarding rate 714Mpps, non-blocking cut-through architecture Software: ExtremeXOS modular OS, support IPv4/IPv6 routing, M-LAG, EAPS, Data Center Bridging (PFC, ETS, DCBX) Stacking: SummitStack-V stacking, up to 8 units stackable Power supply: Dual modular AC/DC redundant PSU slots, input 100-240Vac or 48-60Vdc Fans: 2+1 redundant hot-swappable fan trays, reversible airflow Operating temperature：0℃ ~ +40℃ Dimension: 44mm(H) ×440mm(W) ×420mm(D) Weight: 7.8kg

System compatibility

X670V-48T belongs to Extreme Summit X670V data center switch family. 10GBASE-T copper ports use Cat6a cable for full 100m 10G reach; Cat6 limited to 55m. Optional rear VIM4-40G4X QSFP+ module supports 40G transceivers. Managed via CLI, SSH, SNMP, HTTPS. Designed for server room top-of-rack deployment, virtualization and cloud data center. Stackable within X670V series.

Function

X670V-48T is high-density 10G copper ToR switch for data center. 48 10GBASE-T RJ45 ports connect 10G servers. Optional VIM module provides 40G high-speed uplink to aggregation/core layer. Supports static & dynamic routing, M-LAG, EAPS ring protection, DCB for storage traffic, VLAN, QoS, port security and network virtualization. Redundant power and fans ensure high availability for critical data center environment.

Installation

Mount the switch to standard 19-inch 1RU rack. Connect protective earthing. Install dual redundant power supplies and hot-swap fan trays. Connect Cat6a copper cables to servers. Install optional VIM4-40G4X module and 40G optical transceivers for uplink. Configure via serial console or remote management. Verify port negotiation, stacking and M-LAG status after commissioning.

Interface10GBASE-T RJ45 port, rear VIM QSFP+ module slot, RJ45 serial console, USB-A port for Extreme Networks Summit X670V-48T.

FeatureOriginal Extreme Summit X670V-48T 1RU high density 10G copper ToR switch,48×10GBASE-T RJ45 ports,optional 40G QSFP+ uplink module,runs ExtremeXOS,support M-LAG/EAPS,dual redundant PSU,2+1 hot-swappable fans,reversible airflow. This spare is designed for enterprise and cloud data center top-of-rack server access network.

DiagnosticDevice undetected: Check AC/DC power input, power module seating and protective earthing. 10G port link down: Verify Cat6a cable quality/length, check auto-negotiation; Cat6 cable cannot reach full 100m at 10G. VIM uplink no link: Confirm VIM module is properly seated, check QSFP+ transceiver compatibility and fiber polarity. Stacking failure: Check SummitStack-V configuration, stacking port assignment and cable quality. Over-temperature alarm: Inspect fan tray status, airflow direction and rack cold/hot aisle layout.

Product BriefX670V-48T (Summit X670V) is Extreme Networks 1RU non-blocking 10GBASE-T top-of-rack switch with 48 ten-gig copper ports and optional 40G uplink,classic spare for data center server access network replacement.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
