Extreme Networks VIM4-40G4X Versatile Interface Module

Technical SpecificationsModel：VIM4-40G4X Brand：Extreme Networks Product Type: Switch rear versatile interface expansion module

Port Configuration:

• 4 × QSFP+ cages, each port works as single 40G port, or breakout into 4×10G SFP+ via 1:4 fanout cable

• Media: QSFP+ optical transceiver, QSFP+ passive / active DAC cable

• Speed: Native 40GBASE-X; breakout to 4×10GBASE-X with fanout cable

Total Bandwidth: 160Gbps full duplex Software Requirement: ExtremeXOS minimum 21.1 Supported Hardware Platform: Summit X670V series only Stacking Function: Native SummitStack-V160 / SummitStack-V320 stacking Operating temperature：0℃ ~ +50℃ Installation: Non hot-swappable, power off host switch before module insertion Status LED: Per-port link and activity indicators

System compatibility

VIM4-40G4X is dedicated VIM4 expansion module for Summit X670V series switches only, cannot be used on X480/X650. Compatible with Extreme certified QSFP+ transceivers and fanout DAC cables. Supports native SummitStack-V160 and V320 stacking modes. All stacked switch members must run matching ExtremeXOS firmware. Ports can be used for regular high-speed uplink or dedicated stacking links.

Function

VIM4-40G4X is rear high-speed expansion module for Summit X670V switches. It adds four QSFP+ 40G ports to host device. Each QSFP+ port can run native 40G for backbone uplink, or split into four independent 10G ports with 1-to-4 fanout cable to expand 10G port quantity. This module supports native SummitStack-V stacking, multiple X670V switches can be combined as one logical switch. Widely used for enterprise core uplink, data center aggregation and high-speed stacking cluster expansion.

Installation

Power off Summit X670V host switch. Wear ESD anti-static wrist strap, remove blank panel from rear VIM4 slot. Insert VIM4-40G4X module firmly and tighten captive screws. Power on switch, verify module recognition via ExtremeXOS CLI. Insert QSFP+ transceivers or fanout cables, configure port speed / breakout and SummitStack-V stacking mode as required.

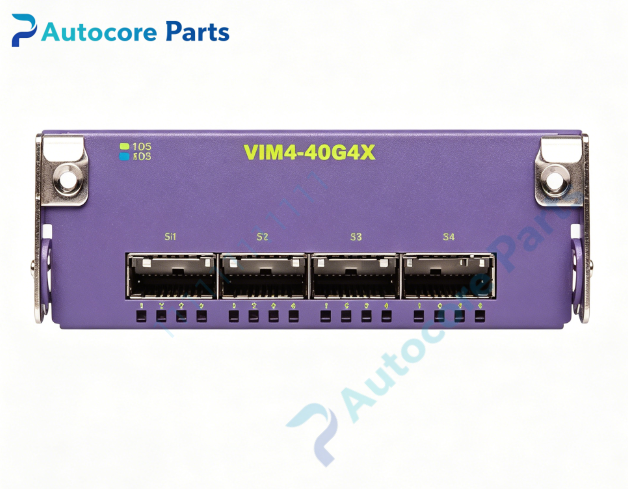

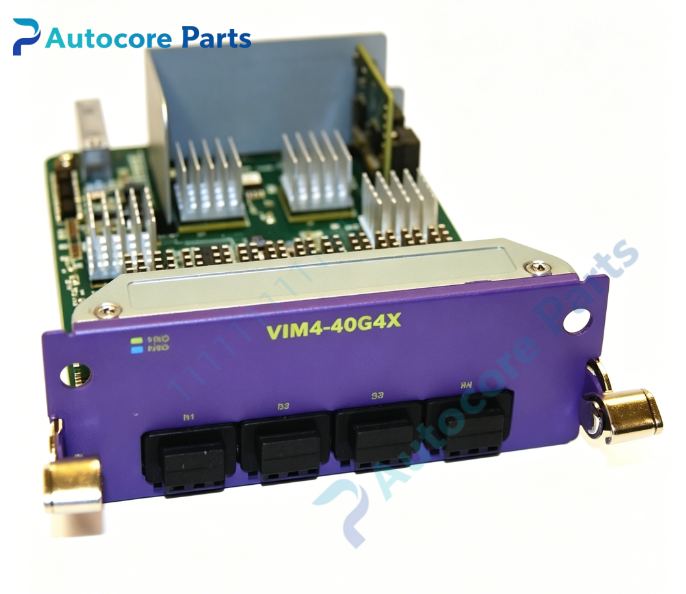

Interface4 QSFP+ 40G slots, module status LED, captive mounting screws for Extreme Networks VIM4-40G4X.

FeatureOriginal Extreme Networks VIM4-40G4X versatile interface module,4 QSFP+ ports,support native 40G or breakout 4×10G per port,native SummitStack-V160/V320 stacking,specially designed for Summit X670V series. This spare module is used for enterprise core network upgrade and switch stacking capacity expansion.

DiagnosticModule not detected: Confirm host is X670V series, fully seat module and tighten captive screws. Port no link: Check QSFP+ module certification, fiber end face cleanliness, optical attenuation or DAC cable integrity. Breakout port failure: Verify fanout cable type and port partition configuration in ExtremeXOS. Stack link abnormal: Confirm SummitStack-V mode setting, matching firmware version on all stack members. Temperature warning: Check rack ventilation, ensure proper air flow around the module.

Product BriefVIM4-40G4X is Extreme Networks 4-port QSFP+ 40G VIM4 expansion module,classic spare for Summit X670V high-speed uplink and native stacking expansion.
