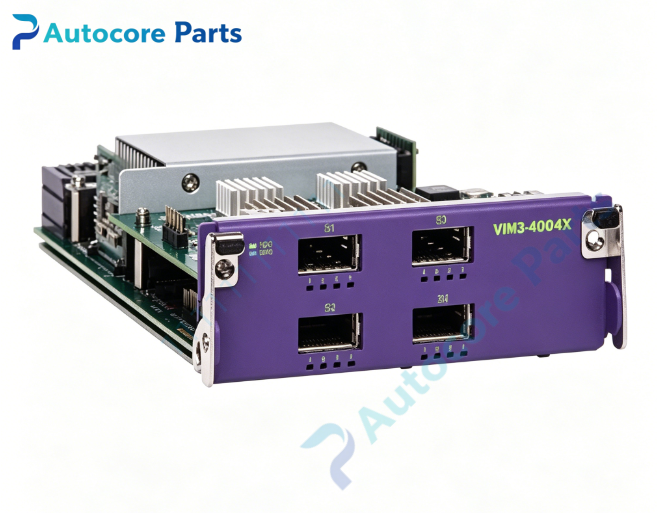

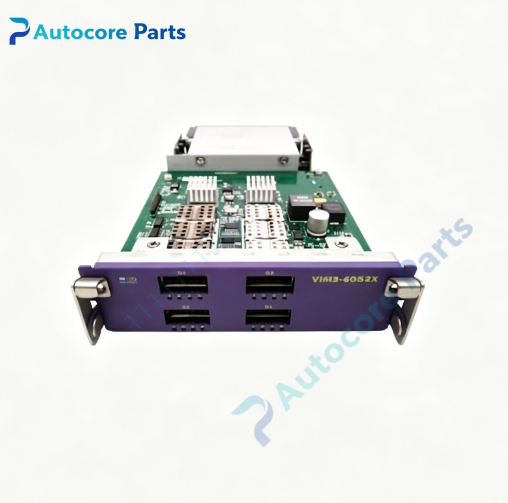

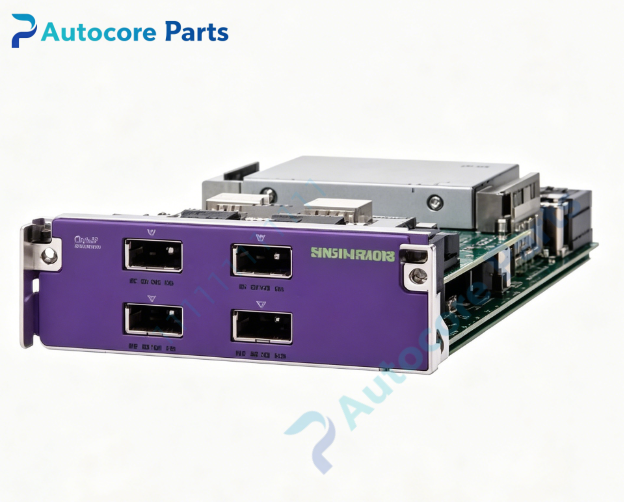

Extreme Networks VIM3-40G4X Versatile Interface Module

Technical SpecificationsModel：VIM3-40G4X Brand：Extreme Networks Product Type: Switch rear versatile interface expansion module

Port Configuration:

• 4 × QSFP+ cages, each port works as single 40G port, or breakout into 4×10G SFP+ via 1:4 fanout cable

• Media: QSFP+ optical transceiver or QSFP+ passive/active DAC cable

• Speed: 40GBASE-LR4/SR4 or 10GBASE-SR/LR after breakout

Bandwidth: Total 160Gbps full duplex Software Requirement: ExtremeXOS minimum 15.1 Supported Hardware Platform: Summit X480, X650 series switches Function Support: Layer2/Layer3 uplink, SummitStack-V80 / SummitStack-V160 stacking Operating temperature：0℃ ~ +50℃ Installation: Hot install not supported, power off host switch before insertion Status LED: Per-port link/activity indicators

System compatibility

VIM3-40G4X is dedicated VIM expansion module for Summit X480 and X650 series. All ports compatible with Extreme QSFP+ transceivers and QSFP+ DAC fanout cables. Supports SummitStack-V80 / SummitStack-V160 virtual stacking. All stack members must run matching ExtremeXOS firmware version. Ports can be used for regular uplink or stacking links.

Function

VIM3-40G4X is rear high-speed expansion module for Summit X480/X650 switches. It adds four QSFP+ 40G ports to host switch. Each QSFP+ port can run native 40G for high bandwidth uplink to core, or split into four independent 10G ports with fanout cable for more 10G interfaces. Ports can be configured as SummitStack-V stacking links to combine multiple physical switches into one logical device. Widely used for campus core uplink, data center aggregation and high-speed stacking cluster expansion.

Installation

Power off the Summit host switch. Wear ESD anti-static wrist strap, remove blank panel from rear VIM slot. Insert VIM3-40G4X module firmly and tighten captive screws. Power on switch, verify module recognition via ExtremeXOS CLI. Insert QSFP+ transceivers or fanout cables, configure port speed / breakout and SummitStack-V stacking mode as required.

Interface4 QSFP+ 40G slots, module status LED, captive mounting screws for Extreme Networks VIM3-40G4X.

FeatureOriginal Extreme Networks VIM3-40G4X versatile interface module,4 QSFP+ ports,support native 40G or breakout 4×10G per port,SummitStack-V stacking support,high speed uplink expansion for X480/X650 series. This spare module is used for enterprise core network upgrade and switch stacking capacity expansion.

DiagnosticModule not detected: Confirm host hardware compatibility, fully seated module and tightened captive screws. Port no link: Check QSFP+ module recognition, fiber cleanliness, optical attenuation or DAC cable integrity. Breakout port not working: Verify fanout cable type and port partition configuration under ExtremeXOS. Stack link failure: Confirm SummitStack-V port configuration, consistent firmware on all stack members. Temperature warning: Check rack ventilation and module operating temperature.

Product BriefVIM3-40G4X is Extreme Networks 4-port QSFP+ 40G VIM expansion module,classic spare for Summit X480/X650 high-speed uplink and stacking expansion.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
