Extreme Networks X590-24T-1Q-2C High Performance 10G Copper Aggregation Switch

Technical SpecificationsModel：X590-24T-1Q-2C Brand：Extreme Networks Product Type: 1U Rack Mount high-performance aggregation switch

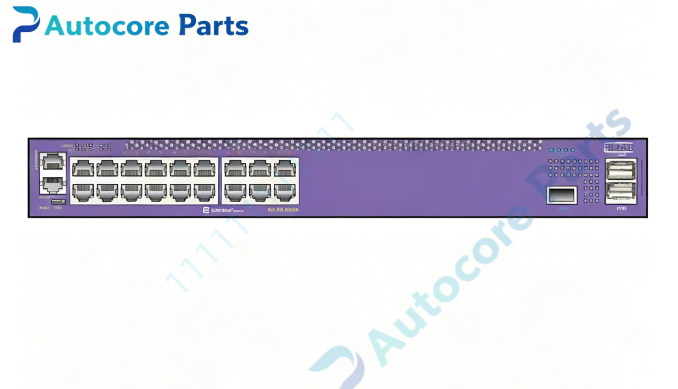

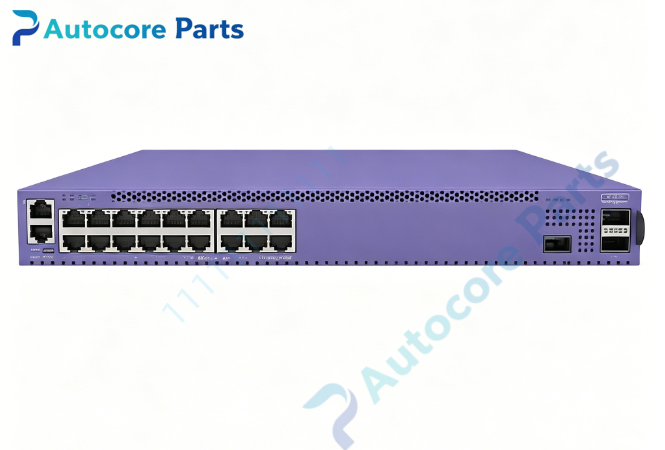

Front Ports:

• 24 × 100M/1G/10GBASE-T auto-sensing RJ45 copper ports

• 1 × QSFP+ port,supports 10G/40G or split to 4×10G

• 2 × QSFP28 multi-rate ports, supports 10G/25G/40G/50G/100G configurable speed

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100/1000BASE-T out-of-band management port

• 1 × USB 2.0 port for firmware upgrade and configuration backup

Switch Fabric: 720 Gbps Forwarding Rate: 540 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 128K MAC entries ACL: 16K ingress hardware ACL rules QoS: 8 hardware priority queues per port CPU & Memory: 2.4GHz Quad-core processor,4GB ECC DDR3,32GB SSD Power Supply: Dual hot-swappable PSU slots,AC or -48V DC optional Fan: 4 hot-swappable fan modules,front-to-back or back-to-front airflow,all fans/PSU must match airflow direction Software OS: ExtremeXOS minimum 22.6 Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Weight: 6.8 kg Status LED: System power, fan, stack ID, per-port link/activity indicators

System compatibility

X590-24T-1Q-2C supports SummitStack-V400 stacking, up to 8 stack members including X590/X690/X870 series. Compatible with Extreme original SFP+,QSFP+,QSFP28 transceivers and DAC twinax cables. Supports Layer2 switching, full IPv4/IPv6 Layer3 routing,OSPF,BGP,VRRP,PIM multicast routing. It can be deployed as aggregation node for Extreme Extended Edge network and enterprise core layer.

Function

X590-24T-1Q-2C is 1U high density 10G copper aggregation switch for enterprise core and Extended Edge solution. 24 10GBASE-T RJ45 ports connect 10G servers or 10G access switches over standard copper cabling. Multi-rate QSFP+ and QSFP28 ports provide flexible high-speed uplink up to 100G, these high-speed ports can also be configured as SummitStack-V400 stacking links to combine multiple switches into single logical device. It supports advanced QoS, large ACL table, jumbo frame, Fabric Attach and comprehensive security control, widely used for campus core, enterprise aggregation and medium data center copper 10G access aggregation.

Installation

Mount the switch into standard 19-inch rack. Install PSU and fan modules, ensure consistent airflow direction between fans and power supplies. Connect power cable. Use console cable for initial CLI setup. Insert QSFP+/QSFP28 transceivers and connect fiber or DAC cables. Configure SummitStack-V400 stacking parameters if stack cluster required. Verify port status and firmware consistency after boot.

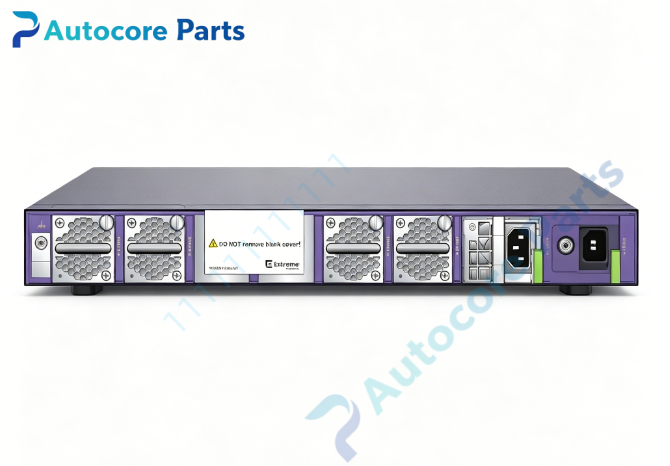

Interface24pcs 10GBASE-T RJ45 ports,1 QSFP+ 40G slot,2 QSFP28 multi-rate slots,serial console port,out-of-band management port,USB port,dual PSU bays,four fan slots and status LED indicators for Extreme Networks X590-24T-1Q-2C.

FeatureOriginal Extreme Networks X590-24T-1Q-2C aggregation switch,24×10GBASE-T copper ports,multi-rate QSFP+ and QSFP28 ports up to 100G,SummitStack-V400 stacking,hot-swappable power supply and fan tray,L2/L3 full routing,jumbo frame,large MAC and ACL table. This spare is used for enterprise core,Extended Edge and high-speed copper aggregation network upgrade and replacement.

DiagnosticSwitch no power: Check AC/DC power cable and voltage, inspect PSU seating and LED status. Port no link: Verify CAT6A/CAT7 copper cable quality, auto-negotiation and peer device state. QSFP uplink failure: Check optical module compatibility,fiber cleanliness and optical attenuation. Stacking failure: Confirm SummitStack-V400 port mode,transceiver type,cable integrity and same ExtremeXOS firmware. Temperature alarm: Check fan module operation,dust buildup and cabinet airflow,match airflow of all fans and PSUs. High CPU warning: Check broadcast storm, routing protocol stability and ACL policy.

Product BriefX590-24T-1Q-2C is Extreme Networks 1U high-performance aggregation switch with 24×10GBASE-T RJ45 and multi-rate QSFP+/QSFP28 uplink ports,classic spare for enterprise core and Extended Edge network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
