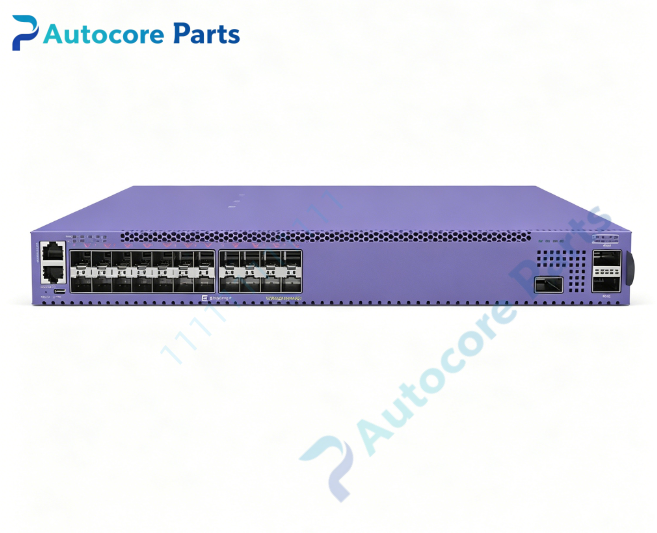

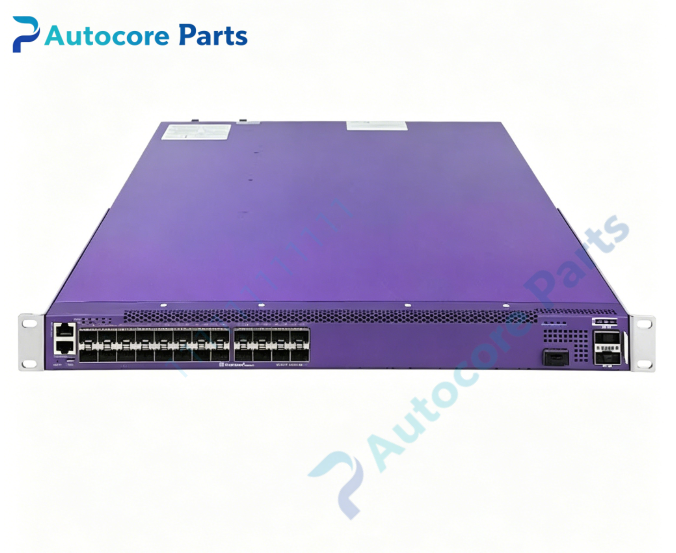

Extreme Networks X590-24X-1Q-2C High Performance Aggregation Switch

Technical SpecificationsModel：X590-24X-1Q-2C Brand：Extreme Networks Product Type: 1U Rack Mount high-performance aggregation switch

Front Ports:

• 24 × SFP+ auto-sensing 1G /10GBASE-X ports, two ports can be assigned for stacking

• 1 × QSFP+ port,supports 40G or split to 4×10G

• 2 × QSFP28 multi-rate ports, supports 10G/25G/40G/50G/100G configurable speed

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100/1000BASE-T out-of-band management port

• 1 × USB 2.0 port for firmware upgrade and configuration backup

Switch Fabric: 720 Gbps Forwarding Rate: 540 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 128K MAC entries ACL: 16K ingress hardware ACL rules QoS: 8 hardware priority queues per port CPU & Memory: 1GHz 64-bit processor,2GB ECC DDR3,4GB eMMC Flash Power Supply: Dual hot-swappable PSU slots,AC or -48V DC optional Fan: 4 hot-swappable fan modules,front-to-back or back-to-front airflow,all fans/PSU must match airflow direction Software OS: ExtremeXOS minimum 22.6 Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Weight: 6.6 kg Status LED: System power, fan, stack ID, per-port link/activity indicators

System compatibility

X590-24X-1Q-2C supports SummitStack-V400 stacking. Compatible with Extreme original SFP+,QSFP+,QSFP28 transceivers and DAC cables. Supports Layer2 switching, full IPv4/IPv6 Layer3 routing,OSPF,BGP,VRRP,PIM multicast routing. Can act as aggregation node for Extended Edge network and data center ToR deployment.

Function

X590-24X-1Q-2C is 1U high density 10G aggregation switch for enterprise core and data center top of rack. 24 SFP+ ports connect 10G servers or access switches. Multi-rate QSFP+ and QSFP28 ports provide flexible high-speed uplink up to 100G. Ports can be configured as SummitStack-V400 stacking links to combine multiple switches into single logical device. It supports advanced QoS, large ACL table, jumbo frame, Fabric Attach, and comprehensive security control. Widely used for campus core, medium data center and high-performance LAN aggregation.

Installation

Mount the switch into standard 19-inch rack. Install PSU and fan tray, ensure consistent airflow direction. Connect power supply. Use console cable for initial CLI setup. Insert SFP+/QSFP+/QSFP28 transceivers and connect fiber or DAC cables. Configure SummitStack-V400 stacking parameters if stack cluster required. Verify port status and firmware consistency after boot.

Interface24 SFP+ 10G slots,1 QSFP+ 40G slot,2 QSFP28 multi-rate slots,serial console port,out-of-band management port,USB port,dual PSU bays,four fan slots and status LED indicators for Extreme Networks X590-24X-1Q-2C.

FeatureOriginal Extreme Networks X590-24X-1Q-2C aggregation switch,24×1/10G SFP+,multi-rate QSFP+ and QSFP28 ports up to 100G,SummitStack-V400 stacking,hot-swappable power supply and fan tray,L2/L3 full routing,jumbo frame,large MAC and ACL table. This spare is used for enterprise core,data center ToR and high-speed aggregation network upgrade and replacement.

DiagnosticSwitch no power: Check AC/DC power cable and voltage, inspect PSU seating and LED. Port no link: Verify optical module compatibility,fiber cleanliness and optical attenuation. Stacking failure: Confirm SummitStack-V400 port mode,transceiver type,cable integrity and same ExtremeXOS version. Temperature alarm: Check fan module operation,dust buildup and cabinet airflow,match airflow of all fans and PSUs. High CPU warning: Check broadcast storm, routing protocol stability and ACL policy.

Product BriefX590-24X-1Q-2C is Extreme Networks 1U high-performance aggregation switch with 24×10G SFP+ and multi-rate QSFP+/QSFP28 uplink ports,classic spare for enterprise core and data center top-of-rack network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
