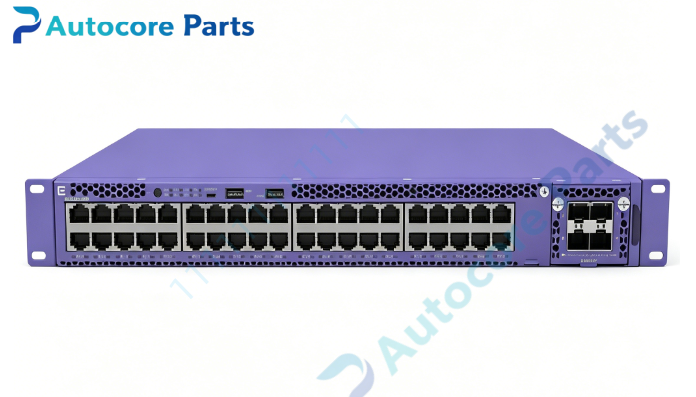

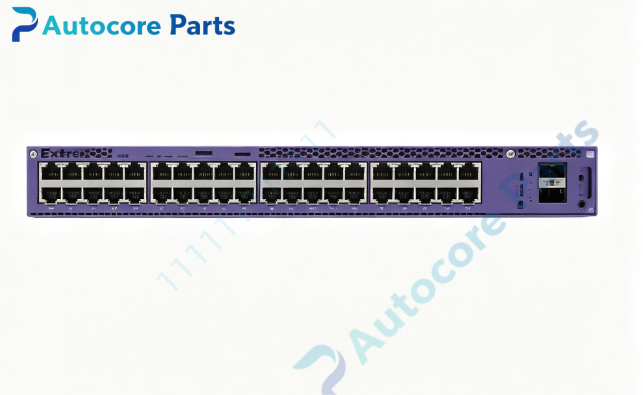

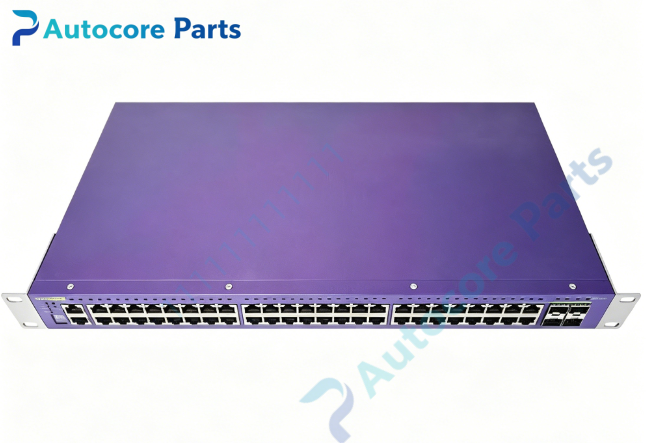

Extreme Networks VSP4900-48P Enterprise PoE Switch

Technical Specifications

Model：VSP4900-48P Brand：Extreme Networks Product Type: 1U rack mount enterprise Layer2/L3 managed PoE+ switch

Front Ports:

• 48 × 10/100/1000BASE-T RJ45 PoE+ ports, IEEE802.3at, max 30W per port, MACsec support

• 1 × VIM5 modular uplink slot, compatible with VIM5 series modules (10G SFP+ /25G SFP28 /40G QSFP)

• 1 × USB Micro-B console port

• LED indicators for port link, activity, power and system health

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T management port

• 1 × RJ45 serial console port

• Dual hot-swappable AC power supply slots

• Hot-swappable fan trays, front-to-back airflow

• Dual USB-A ports for storage and diagnostics

Switching & Layer Features: Switch Fabric: 176 Gbps full duplex Forwarding Rate: 130.9 Mpps MAC Address Table: 32K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: 802.1X, MAC authentication, storm control, ACL, MACsec encryption QoS: Hardware L2-L4 classification, 8 priority queues Fabric: Fabric Connect technology for simplified campus fabric deployment Management: VOSS OS, SNMP, SSH, Web GUI, Extreme Management Center

Power & Mechanical: Power Supply: Dual hot-swappable AC 100-240V PSU, total PoE power budget up to 1440W Cooling: Hot swappable fan tray, front-to-back airflow Operating temperature：0℃ ~ +50℃ Dimension: 442mm × 44mm × 430mm Weight: Approx 7.8 kg Mounting: Standard 19-inch 1U rack bracket Software OS: VOSS (Virtually Operating Switching System)

System compatibility

VSP4900-48P belongs to Extreme VSP4900 enterprise switch family, PoE+ copper access model. Compatible with VIM5 series uplink modules and Extreme certified transceivers. Supports Fabric Connect to build unified campus fabric network. Designed for enterprise campus, office, IP camera and wireless AP PoE access. Widely used for corporate LAN upgrade and spare replacement.

Function

VSP4900-48P is 1U high-performance enterprise managed PoE+ switch manufactured by Extreme Networks. 48 gigabit PoE+ copper ports deliver data and 30W power for wireless access points, IP cameras and IP phones. Modular VIM uplink slot provides flexible high-speed 10G/25G/40G uplink options to aggregation or core switches. Fabric Connect simplifies multi-site campus network deployment. Supports MACsec link encryption, full IPv4/IPv6 routing, 802.1X authentication, VLAN segmentation and hardware QoS. Hot-swappable power and fan modules improve network uptime. Widely deployed for office buildings, campus, factory and commercial building PoE access network spare replacement.

Installation

Follow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cords to dual PSU slots. Install VIM uplink module and optical transceiver if fiber uplink required. Use Cat5e/Cat6 cable for PoE terminals. Access console port for initial VOSS configuration, set VLAN, PoE profile, routing and Fabric Connect. Verify port connectivity and PoE power output after power-up.

Interface

48×1G PoE+ RJ45 ports,VIM5 modular uplink slot,USB Micro-B console,serial console port,OOB management port,dual hot-swap PSU slots,hot-swap fan tray,USB-A storage ports,LED indicators for Extreme Networks VSP4900-48P.

Feature

Original Extreme Networks VSP4900-48P enterprise PoE+ switch,48×30W gigabit PoE+ ports,modular VIM uplink,MACsec encryption,Fabric Connect,VOSS OS,support hot-swappable redundant power and fan. This spare unit is used for enterprise campus PoE access network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC power input and dual PSU installation. PoE port no power: Verify PoE power budget, cable quality and powered device compatibility. Uplink link down: Confirm VIM module and transceiver compatibility, inspect fiber/cable. Fabric connection abnormal: Check Fabric configuration, match VOSS firmware version. Overheat alarm: Check fan tray working status and rack ventilation.

Product BriefVSP4900-48P is Extreme Networks VSP490 series 1U enterprise managed PoE+ switch with 48 gigabit PoE+ ports and modular VIM high-speed uplink, supporting Fabric Connect and MACsec,classic spare for campus PoE access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
