Extreme Networks X440-24p-10G Ethernet Switch

Technical SpecificationsModel: X440-24p-10G Brand: Extreme Networks Product Type: Layer2 / Layer3 Gigabit PoE+ Access Switch Mounting: 19-inch rack mount Operating temperature: 0℃ ~ +50℃ Storage temperature: -40℃ ~ +70℃ Relative humidity:10%~95%, non-condensing Protection: IP20 Ports:

• 24 × 10/100/1000BASE-T RJ45 PoE+ (IEEE802.3af/at, 30W per port)

• 4 × SFP+ slots for 1G /10G fiber uplink or stacking

• 1 × RJ45 console port

• 1 × 10/100/1000M out-of-band management port

• 1 × USB 2.0 port PoE budget: 380W Power supply: AC 100~240V, optional redundant power supply Weight: 4.6 kg

System compatibilityX440-24p-10G belongs to Extreme Summit X440 series, running ExtremeXOS operating system. It supports SummitStack stacking with other X440 switches, compatible with Extreme core switches such as X620, X670, VSP series. Widely deployed for office, campus, hotel, IP camera and wireless AP access networks, used for network maintenance and spare replacement.

FunctionX440-24p-10G is enterprise access layer PoE switch. It supplies PoE+ power to wireless access points, IP cameras and IP phones. It performs Layer2 switching, VLAN, STP/RSTP, QoS scheduling, ACL filtering and basic Layer3 routing. It supports link aggregation and 10G fiber uplink to core network. It monitors port link status, PoE power consumption, fan speed, temperature and power status, triggers alarm for port down, PoE overload, over-temperature or power failure. It is used to replace defective access switches in enterprise LAN.

InstallationCut off power before installation. Mount the switch into standard 19-inch rack. Insert SFP/SFP+ transceivers into SFP+ slots. Connect AC power, network cables, console and management port. Boot up and configure ExtremeXOS, VLAN, PoE profile and stacking parameters. Verify port status and network traffic before putting into production.

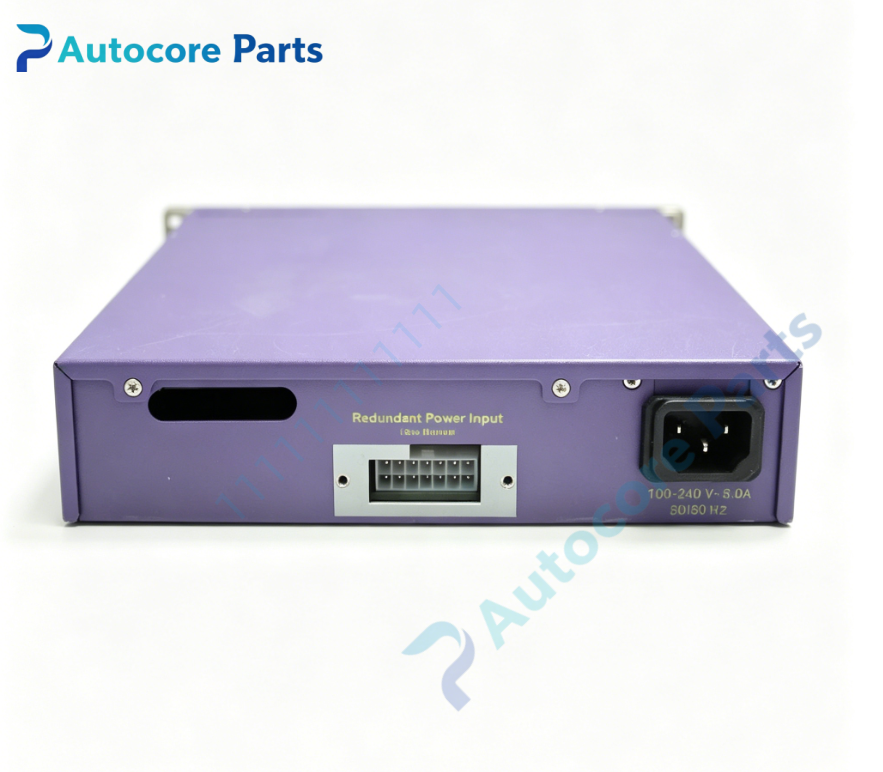

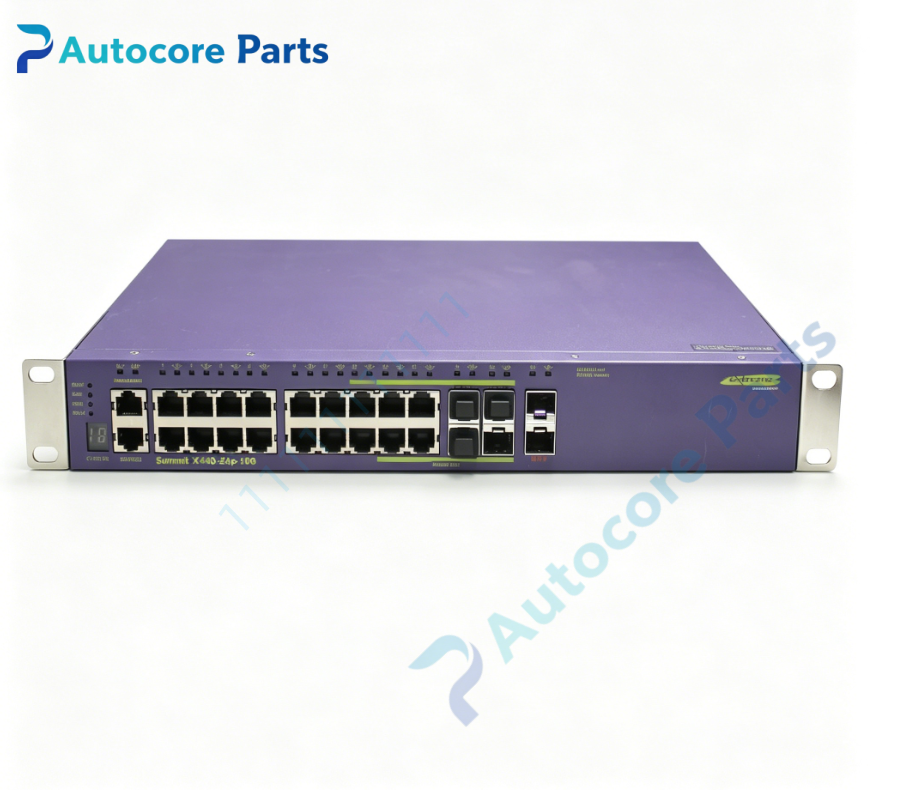

Interface24×PoE RJ45 ports,4×SFP+ slots, RJ45 console port, 1G management port, USB port, AC power inlet, LED status indicators for Extreme Networks X440-24p-10G.

FeatureOriginal Extreme Networks Summit X440 PoE switch, ExtremeXOS OS, 24 port PoE+ supply, 10G SFP+ uplink, stacking capability, rich security and QoS functions, optional hot-swappable redundant power supply, built-in self-diagnostic function. This spare supports enterprise campus and industrial network maintenance.

DiagnosticNo power LED: check AC input power and internal power module of X440-24p-10G. PoE no output: verify total PoE budget, port PoE enable setting and cable quality. Port link down: check transceiver, copper/fiber cable, auto-negotiation and port administrative status. Stacking failure: inspect stacking SFP+ modules, stacking cables and switch stacking configuration.

Product BriefX440-24p-10G is Extreme Networks Summit X440 series 24-port Gigabit PoE+ access switch with 4×10G SFP+ uplink ports. It provides data and PoE power supply for enterprise terminal devices, classic spare part for legacy campus network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
