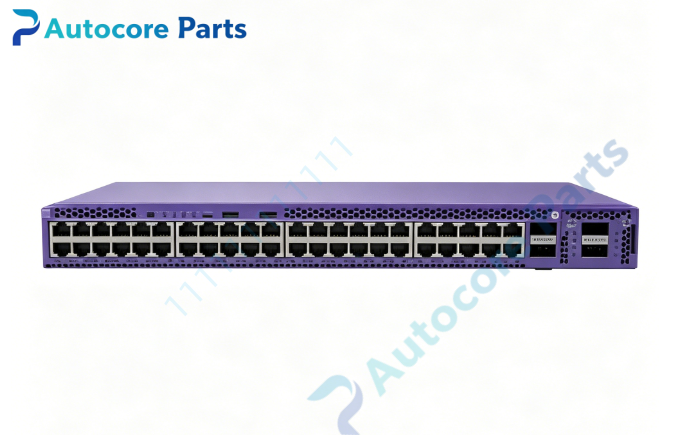

Extreme Networks X465i-48W Gigabit PoE++ Stackable Managed Switch

Technical SpecificationsModel:X465i-48W Brand:Extreme Networks Product Type:1U rackmount stackable Layer2/Layer3 PoE++ managed switch Ports:48 × 10/100/1000BASE-T RJ45 PoE++ ports,2 × 40G QSFP+ dedicated stacking ports,1 × VIM5 modular uplink slot PoE standard:IEEE 802.3bt Type4 PoE++,max 90W per port, supports high-power wireless AP,PTZ camera Switching capacity:364Gbps Forwarding rate:270.8Mpps MAC address table:64000 entries Jumbo frame:9216 bytes Max stacking:up to 8 switches in one stack CPU/Memory/Storage:Dual CPUs,6GB RAM,120GB storage for IAH integrated application hosting OS:ExtremeXOS,minimum version 30.5 Management interfaces:RJ45 serial console port,Micro-USB console,1×1G out-of-band management port,2×USB-A Power & fan:Hot-swappable redundant PSU slots,3 hot-swappable fan modules,front-to-back airflow Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:7.8kg

System compatibilityX465i-48W belongs to Extreme Networks X465i premium stackable family. It is the enhanced IAH-enabled variant of X465-48W. Compatible with Extreme validated 40G QSFP+ stacking transceivers and VIM5 uplink modules. Up to 8 X465/X465i units can be stacked as one logical device. Widely used for enterprise high-power edge access for Wi-Fi 6/7 APs,PTZ cameras and industrial PoE terminals.

FunctionX465i-48W is a high-performance stackable Layer3 gigabit PoE++ switch with integrated application hosting. It supplies up to 90W PoE++ power to powered endpoints. It supports wire-speed Layer2 switching,Layer3 routing,MACsec port encryption,VLAN segmentation,STP/RSTP/MSTP,LACP/MLAG link aggregation,ACL,QoS and multicast control. The IAH platform allows running third-party applications locally on the switch. It monitors port link,PoE power draw,system temperature,power and fan health, and sends hardware fault alarms. Used for large enterprise high-density PoE edge access.

InstallationMount the switch on standard 19-inch 1U rack. Install hot-swappable PSU and fan modules. Connect AC power. Insert QSFP+ stacking transceivers and stacking cables. Install VIM5 uplink module if required. Connect Cat5e/Cat6a cables to PoE ports. Connect console port for ExtremeXOS configuration. Verify boot,port link,PoE and stacking function before commissioning.

Interface48×1G PoE++ RJ45 ports,2×40G QSFP+ stacking ports,VIM5 uplink slot,serial console,Micro-USB,out-of-band 1G management port,2×USB-A,status LEDs,reset button,PSU slots,fan trays,ground terminal,rack ears for Extreme Networks X465i-48W.

FeatureOriginal Extreme Networks X465i 1U rackmount 48-port gigabit PoE++ stackable Layer3 switch,per-port 90W 802.3bt,IAH integrated application hosting,MACsec link encryption,hot-swappable redundant PSU/fans,40G stacking plus VIM5 flexible uplink,ExtremeXOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise high-power Wi-Fi and surveillance PoE edge network deployment.

DiagnosticSwitch fails to boot: check AC power input and PSU module status. PoE port no power: verify PoE budget,PD classification and port admin status. Copper port link down: inspect Cat6a cable quality and auto-negotiation. Stacking port down: check QSFP+ transceiver and stacking cable integrity. Over-temperature alarm: check fan tray operation and rack airflow,remove dust buildup. IAH application fails: verify ExtremeXOS minimum version and storage health.

Product BriefX465i-48W is Extreme Networks X465i series 1U rackmount 48-port gigabit PoE++ stackable Layer3 managed switch with IAH application hosting,40G stacking and VIM5 uplink slot,classic spare part for enterprise high-power PoE edge access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
