Extreme Networks X870-32C-Base 100G Spine Switch

Technical SpecificationsModel：X870-32C-Base Brand：Extreme Networks Product Type：1U Rack Mount high-performance data center spine switch

Front Ports:

• 32 × QSFP28 multi-rate ports,configurable for 10G/25G/40G/50G/100G,support breakout:4×10G or 4×25G per port

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100/1000BASE-T out-of-band management port

• 1 × USB Type A port for firmware upgrade & configuration backup

Switch Fabric: 6.4 Tbps non-blocking full duplex Forwarding Rate: 4800 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 512K MAC entries ACL: 32K hardware ingress ACL rules QoS: 8 hardware priority queues per port Latency: Under 600ns cut-through forwarding CPU & Memory: 2.4GHz Quad-core processor,8GB ECC DDR3,32GB SSD Power Supply: Dual hot-swappable PSU slots,AC or -48V DC optional Fan: 6 hot-swappable fan modules,front-to-back or back-to-front airflow;PSU and fans airflow direction must match Software OS: ExtremeXOS minimum 22.2.1 Operating temperature：0℃ ~ +45℃ Mounting: Standard 19-inch 1U rack mount Weight: 8.6 kg Status LED: System power, fan, stack ID, per-port link/activity indicators

System compatibility

X870-32C-Base supports SummitStack-V400 stacking, can stack with X590,X690,X870 series switches. Compatible with Extreme certified QSFP28/QSFP+ transceivers and DAC breakout cables. Supports Layer2 switching, full IPv4/IPv6 Layer3 routing,OSPF,BGP,VRRP,PIM multicast, VXLAN, PTP and DCB. Designed for spine-leaf fabric and high-performance low-latency computing network.

Function

X870-32C-Base is a compact 1U 100G spine switch for cloud and enterprise data center. 32 QSFP28 multi-rate ports can be configured flexibly for different speed combinations, support breakout to expand 10G/25G port count. Ports can be used for high-bandwidth spine uplink or SummitStack-V400 stacking links to combine multiple switches as one logical device. Low latency cut-through switching is suitable for high frequency trading and computing cluster. It supports advanced QoS, large ACL table, jumbo frame, zero touch provisioning ZTP+ and comprehensive security control, widely deployed for data center spine layer, high-performance computing and large enterprise core network.

Installation

Mount the switch into standard 19-inch equipment rack. Install PSU and fan modules, ensure airflow direction consistent between fans and power supplies. Connect power cable. Use console cable for initial CLI configuration. Insert QSFP28/QSFP+ transceivers and connect fiber or DAC breakout cables. Configure SummitStack-V400 stacking parameters if stack cluster required. Verify port speed, breakout mode and firmware consistency after boot.

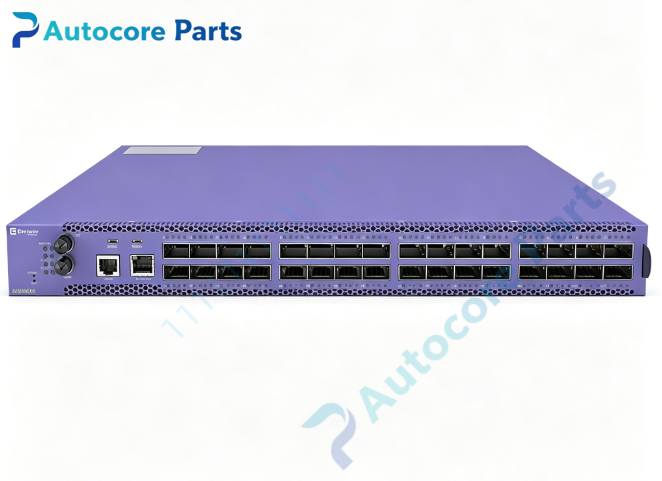

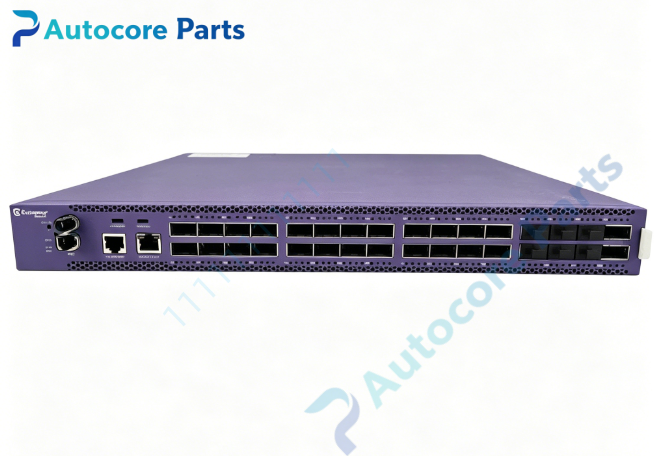

Interface32 QSFP28 multi-rate slots,serial console port,out-of-band management port,USB port,dual PSU bays,six fan slots and status LED indicators for Extreme Networks X870-32C-Base.

FeatureOriginal Extreme Networks X870-32C-Base spine switch,32×multi-rate QSFP28 ports up to 100G,6.4Tbps non-blocking fabric,low latency cut-through forwarding,SummitStack-V400 stacking,hot-swappable power supply and fan tray,L2/L3 full routing,VXLAN,PTP and DCB support,jumbo frame,large MAC and ACL table. This spare is used for data center spine fabric and high-performance core network upgrade and replacement.

DiagnosticSwitch no power: Check AC/DC power cable and input voltage, inspect PSU seating and LED status. Port no link: Verify QSFP28 module certification,fiber end face cleanliness and optical attenuation. Breakout port abnormal: Check breakout cable type and port partition configuration under ExtremeXOS. Stacking failure: Confirm SummitStack-V400 port setting,transceiver type,cable integrity and matching ExtremeXOS firmware on all stack members. Temperature alarm: Check fan module operation,dust buildup and cabinet airflow,keep consistent airflow of fans and PSUs. High CPU warning: Check broadcast storm, routing protocol stability and ACL policy.

Product BriefX870-32C-Base is Extreme Networks 1U high-density 100G QSFP28 spine switch with low-latency cut-through forwarding,classic spare for data center spine-leaf architecture and high-performance core network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
